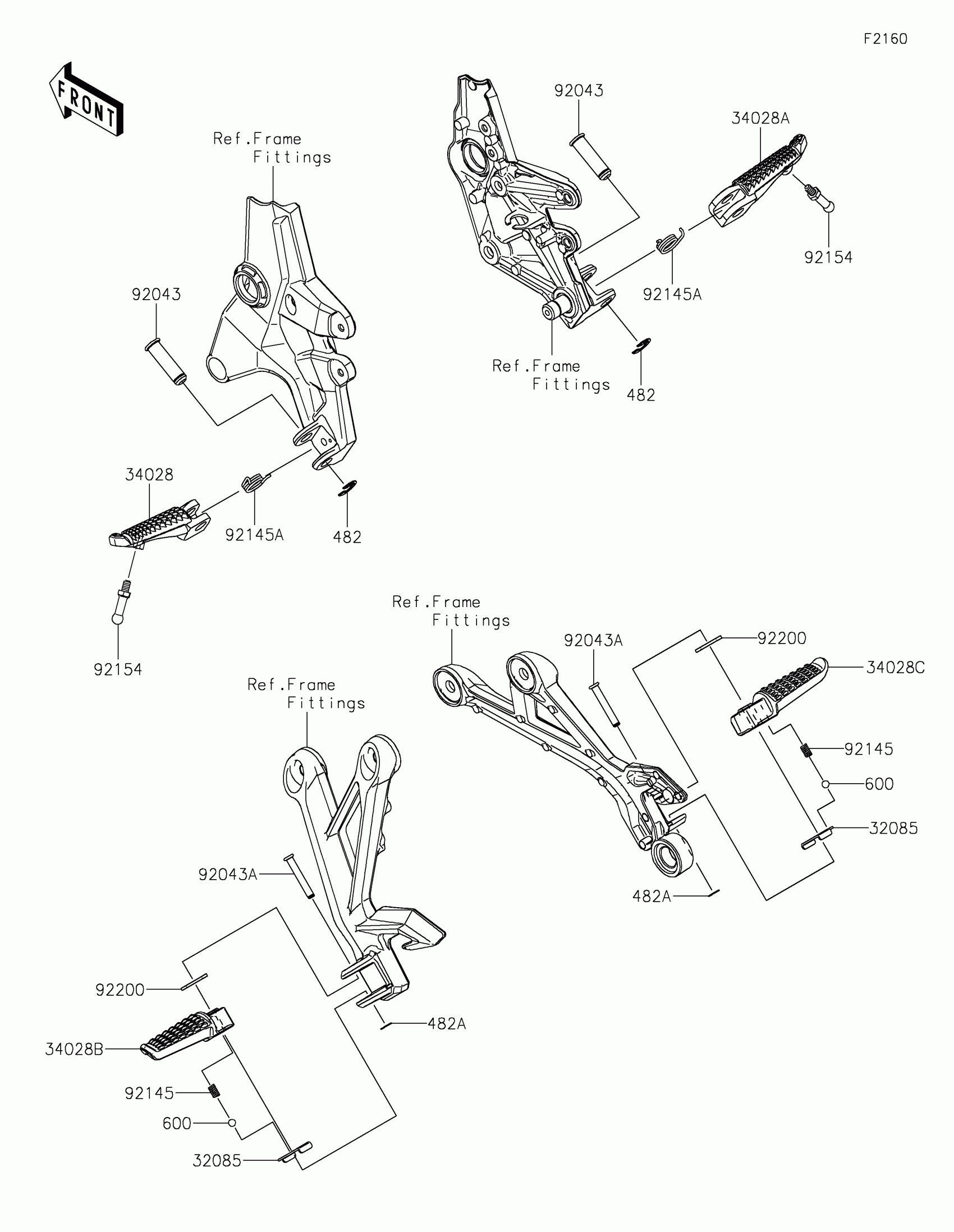

Kawasaki Z H2 Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$4.42

34028

STEP,FR,LH

34028-0092

$80.54

34028A

STEP,FR,RH

34028-0093

$80.54

34028B

STEP,RR,LH

34028-0382

$80.98

34028C

STEP,RR,RH

34028-0383

$80.98

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.98

482A

CIRCLIP-TYPE-E

482EA5000

$1.20

600

BALL-STEEL,1/4

600A0800

$0.67

92043

PIN,12X42.5

92043-1594

$5.25

92043A

PIN,6X40

92043-1595

$1.95

92145

SPRING

92145-1319

$1.54

92145A

SPRING

92145-1950

$4.64

92154

BOLT,BANK SENSOR

92154-4063

$7.64

92200

WASHER,16X26X2.3

92200-0043

$6.09
