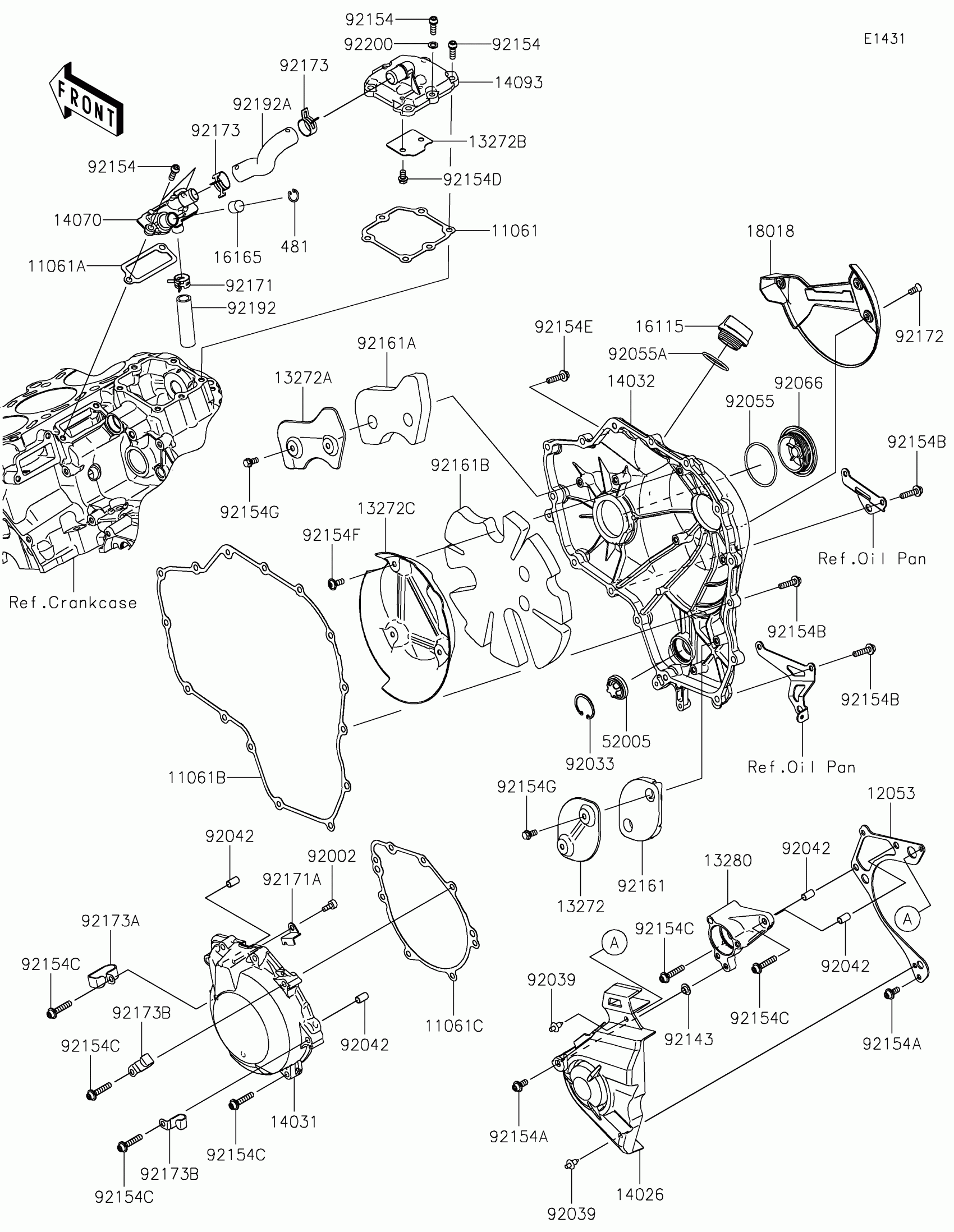

Kawasaki Z H2 Engine Cover(s) Diagram
#
11061
GASKET,BALANCER COVER
11061-0941
$3.96
11061A
GASKET,BREATHER
11061-0942
$3.96
11061B
GASKET,CLUTCH COVER
11061-0944
$30.11
11061C
GASKET,GENERATOR COVER
11061-0945
$13.90
12053
GUIDE-CHAIN
12053-0247
$64.89
13272
PLATE
13272-1852
$26.38
13272A
PLATE
13272-1854
$28.29
13272B
PLATE
13272-1901
$1.71
13272C
PLATE
13272-2476
$92.81
13280
HOLDER,CLUTCH RELEASE
13280-0903
$93.47
14026
COVER-CHAIN
14026-0142
$99.09
14031
COVER-GENERATOR
14031-0647
$176.33
14032
COVER-CLUTCH
14032-0638
$255.42
14070
BODY-BREATHER
14070-0013
$164.19
14093
COVER,BALANCER
14093-0631
$117.50
16115
CAP-OIL FILLER
16115-1009
$14.30
16165
SEPARATOR
16165-0011
$18.52
18018
PLATE-HEAT GUARD
18018-0620
$25.68
52005
GAUGE
52005-1120
$22.80
92002
BOLT,SOCKET,6X12
92002-1796
$4.69
92033
RING-SNAP
92033-1305
$2.32
92039
RIVET
92039-0068
$2.97
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92055
RING-O,49.7X2.4
92055-0183
$2.41
92055A
RING-O,31.5X2.6
92055-049
$4.31
92066
PLUG
92066-0800
$96.64
92143
COLLAR
92143-1331
$3.94
92154
BOLT,SOCKET,6X18
92154-1455
$1.48
92154A
BOLT,SOCKET,6X14
92154-1460
$2.49
92154B
BOLT,SOCKET,6X25
92154-1461
$1.48
92154C
BOLT,SOCKET,6X30
92154-1463
$1.71
92154D
BOLT,FLANGED,6X10
92154-2819
$2.17
92154E
BOLT,SOCKET,6X25
92154-2826
$3.21
92154F
BOLT,TORX,6X16
92154-2920
$2.17
92154G
BOLT,FLANGED,6X12
92154-2922
$1.94
92161
DAMPER
92161-1716
$9.93
92161A
DAMPER
92161-1718
$13.60
92161B
DAMPER
92161-2079
$56.12
92171
CLAMP
92171-0533
$3.39
92171A
CLAMP
92171-0938
$3.90
92172
SCREW,TORX,6X14
92172-0901
$1.97
92173
CLAMP
92173-1702
$5.61
92173A
CLAMP
92173-2262
$8.52
92173B
CLAMP
92173-2294
$5.31
92192
TUBE,BREATHER IN-SIDE
92192-1432
$14.26
92192A
TUBE,BREATHER OUT-SIDE
92192-1440
$21.77
92200
WASHER,6.8X11.5X1.0
92200-1461
$2.67
481
CIRCLIP-TYPE-C
481J1400
$1.71
