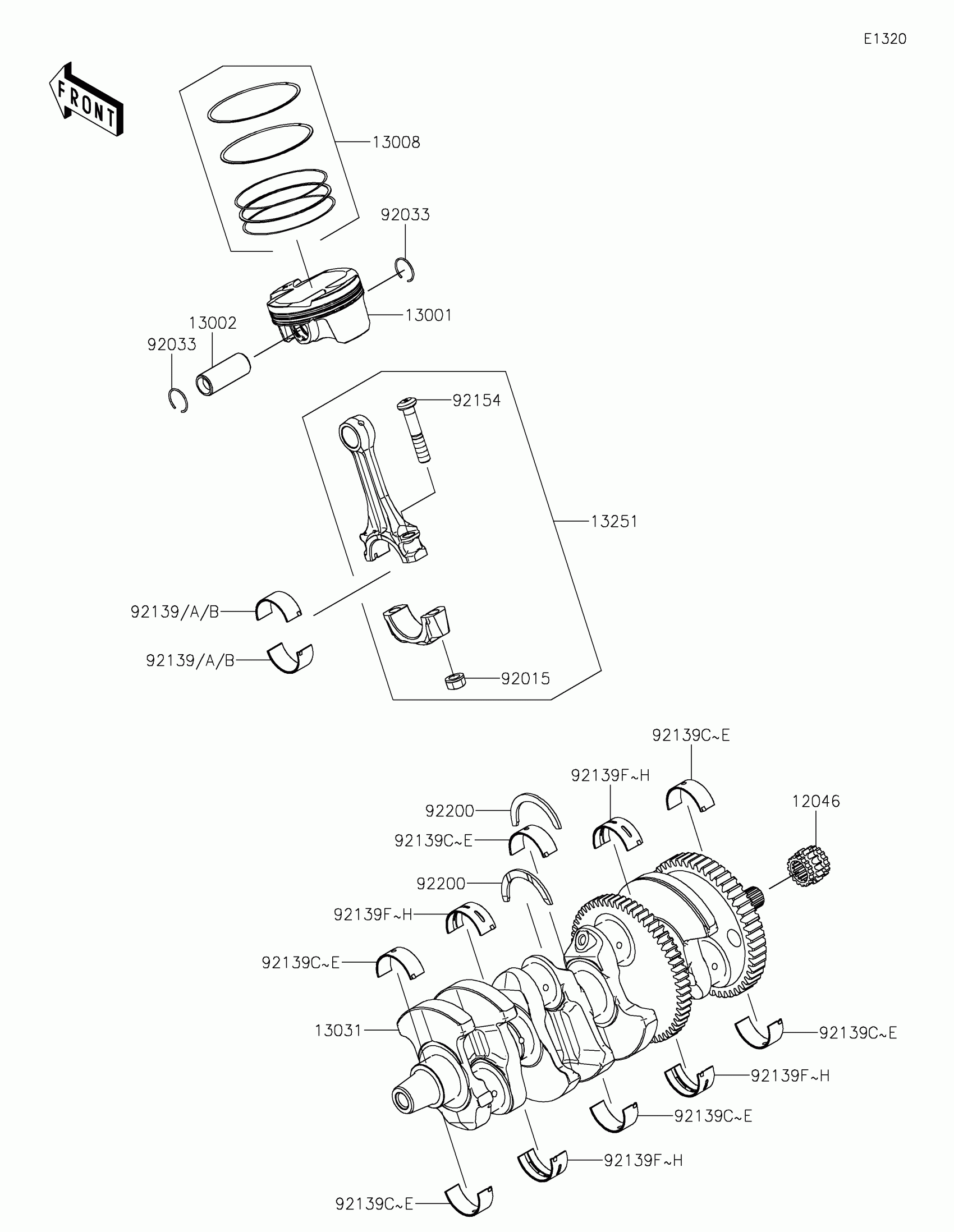

Kawasaki Z H2 Crankshaft/Piston(s) Diagram

Description

Price

12046

SPROCKET,16T

12046-0033

$38.27

13001

PISTON-ENGINE

13001-0794

$141.29

13002

PIN-PISTON

13002-0043

$43.06

13008

RING-SET-PISTON

13008-0578

$65.89

13031

CRANKSHAFT-COMP

13031-0953

$1,354.08

13251

ROD-ASSY-CONNECTING,I

13251-0740-II

$213.19

92015

NUT,CONNECTING ROD

92015-1559

$6.22

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92139

BUSHING,CON-ROD,BLUE

92139-0818

$26.89

92139A

BUSHING,CON-ROD,BLACK

92139-0819

Unavailable

92139B

BUSHING,CON-ROD,BROWN

92139-0820

Unavailable

92139C

BUSHING,#1,YELLOW

92139-0891

$26.89

92139D

BUSHING,#1,GREEN

92139-0892

Unavailable

92139E

BUSHING,#1,PINK

92139-0893

Unavailable

92139F

BUSHING,#2,YELLOW

92139-0894

$26.89

92139G

BUSHING,#2,GREEN

92139-0895

Unavailable

92139H

BUSHING,#2,PINK

92139-0896

Unavailable

92154

BOLT,CON-ROD,9X47.5

92154-3883

$16.25

92200

WASHER,T=2.5

92200-0744

$11.16
