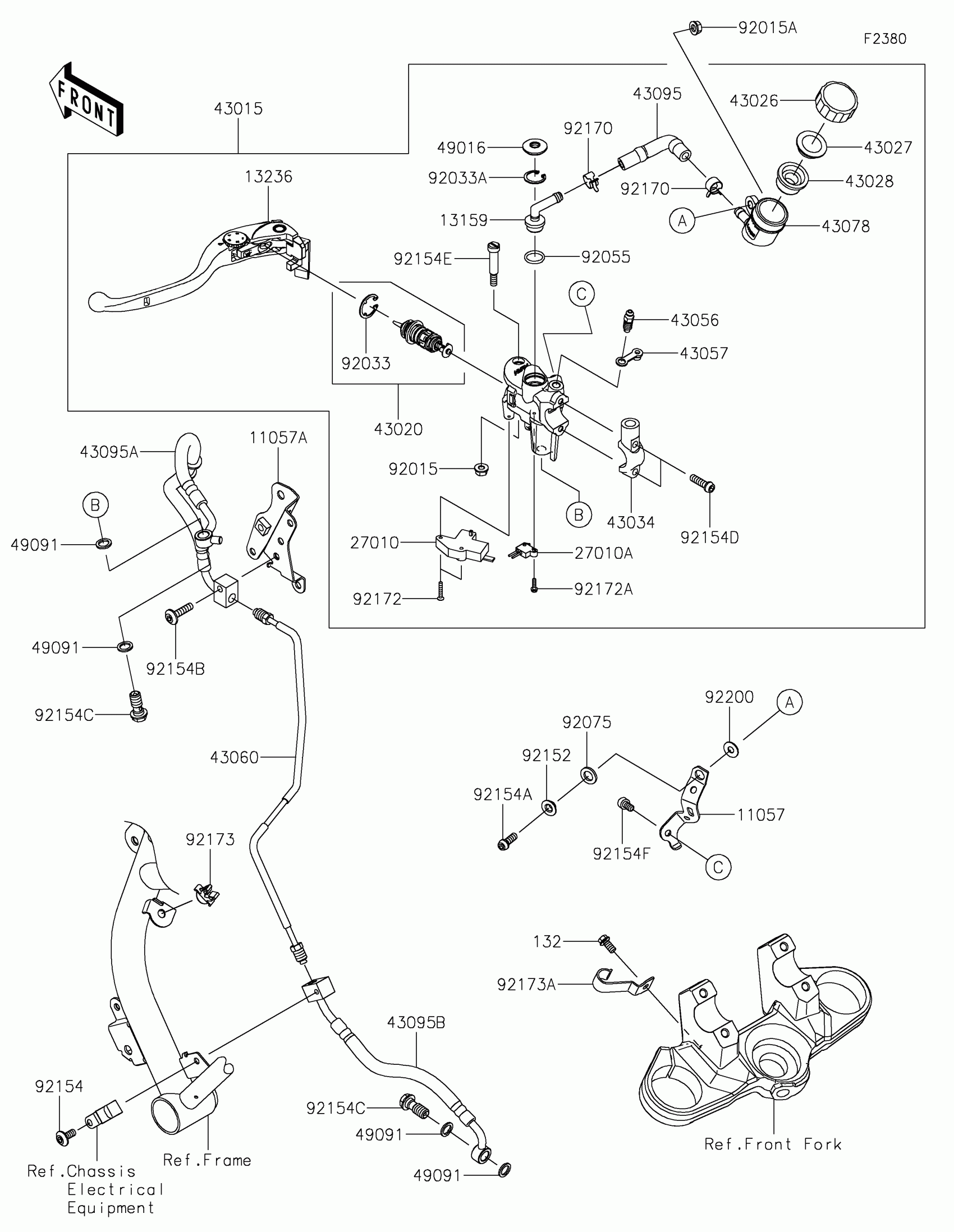

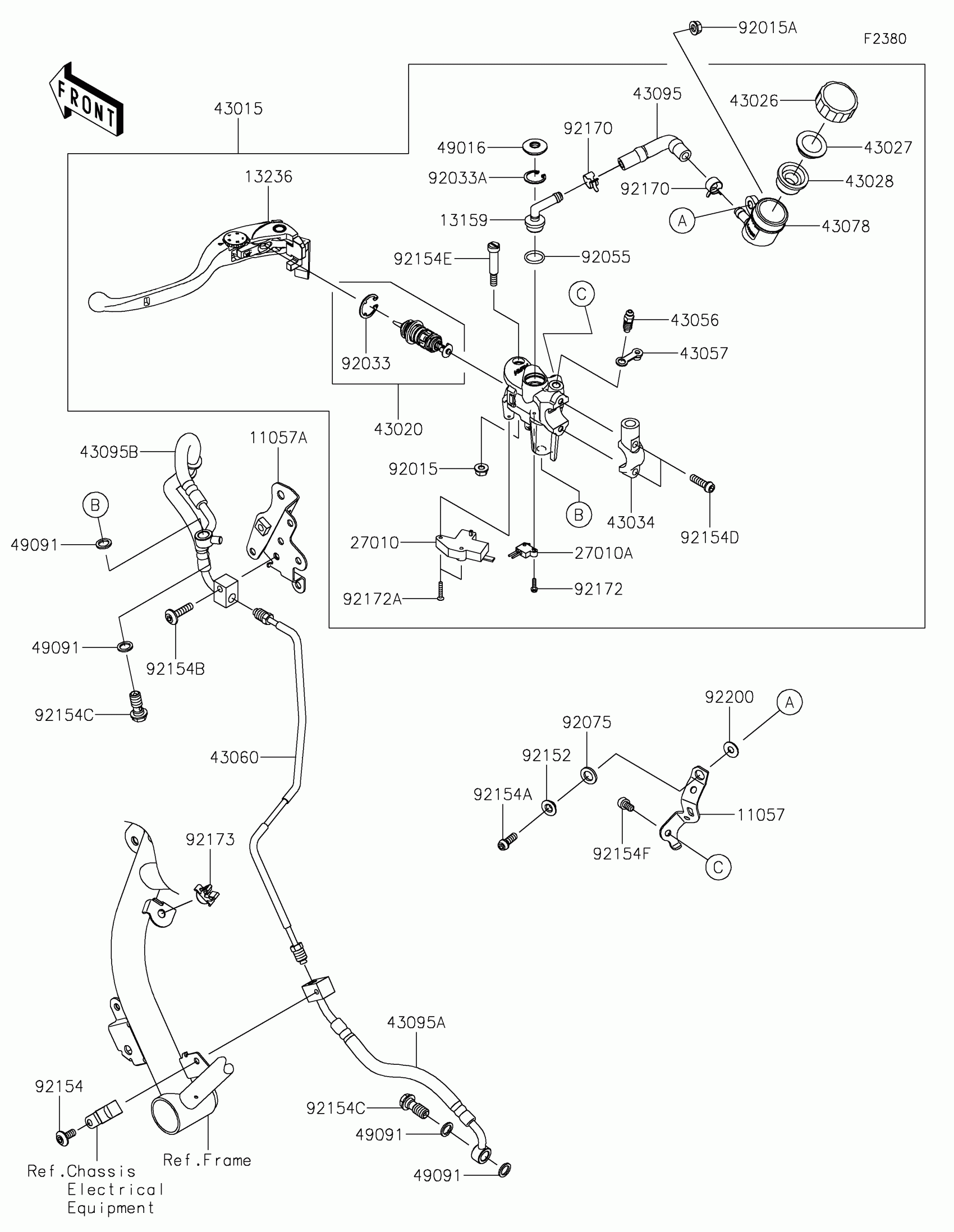

Kawasaki Z H2 Clutch Master Cylinder Diagram

#

Description
Price

11057

BRACKET,RESERVOIR TANK

11057-2909

$7.20

11057A

BRACKET,HEAD PIPE

11057-2910

$11.56

13159

CONNECTOR

13159-1061

$10.27

13236

LEVER-COMP,CLUTCH

13236-0803

$74.17

27010

SWITCH,CLUTCH

27010-0854

$30.28

27010A

SWITCH,CRUISE CONTROL CANCEL

27010-0930

$22.76

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0759

$463.36

43020

PISTON-COMP-BRAKE

43020-0028

$60.54

43026

CAP-BRAKE

43026-1070

$34.54

43027

PLATE-DIAPHRAGM

43027-1054

$4.97

43028

DIAPHRAGM

43028-1073

$18.17

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$22.24

43056

BREATHER-BRAKE

43056-1056

$11.32

43057

CAP-BREATHER

43057-1001

$3.89

43060

PIPE-BRAKE

43060-0346

$48.94

43078

RESERVOIR

43078-0580

$30.47

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$9.49

43095A

HOSE-BRAKE,M/C-BRAKE PIPE

43095-1699

$110.78

43095B

HOSE-BRAKE,BRAKE PIPE-ENG.

43095-1700

$110.78

49016

COVER-SEAL

49016-1147

$4.98

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015A

NUT,FLANGED,6MM

92015-1367

$2.93

92033

RING-SNAP

92033-0034

$4.07

92033A

RING-SNAP,20.5MM

92033-1186

$3.94

92055

RING-O,14.8X2.4

92055-0741

$2.95

92075

DAMPER

92075-1564

$4.35

92152

COLLAR,6.5X10X5.3

92152-1863

$5.66

92154

BOLT,SOCKET,6X14

92154-0907

$1.68

92154A

BOLT,SOCKET,6X18

92154-1455

$1.32

92154B

BOLT,SOCKET,6X25

92154-1532

$1.95

92154C

BOLT,BANJO,10X23

92154-1712

$3.56

92154D

BOLT,SOCKET,6X22

92154-1724

$2.05

92154E

BOLT,LEVER

92154-1912

$7.69

92154F

BOLT,SOCKET,6X8

92154-2914

$1.81

92170

CLAMP,HOSE

92170-1091

$3.97

92172

SCREW

92172-1242

$1.10

92172A

SCREW

92172-1243

$0.69

92173

CLAMP

92173-2180

$2.63

92173A

CLAMP

92173-2182

$4.90

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.73

92200

WASHER,6.5X16X1.0

92200-3712

Unavailable
