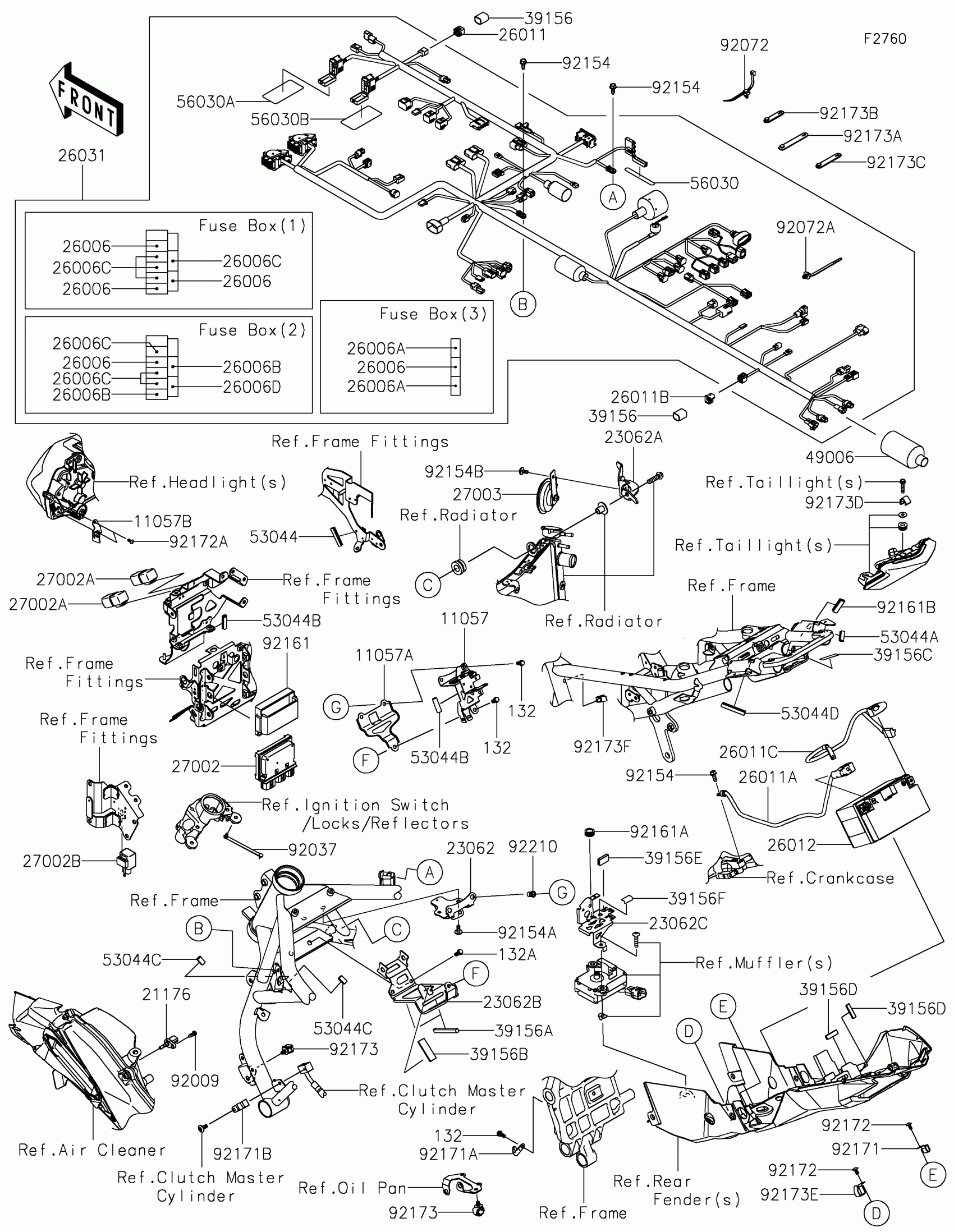

Kawasaki Z H2 Chassis Electrical Equipment(CN) Diagram

#

Description
Price

11057

BRACKET,HARNESS CONNECTOR

11057-2939

$19.02

11057A

BRACKET,CANISTER,UPP

11057-2972

$7.29

11057B

BRACKET,FR SIGNAL CONNECTOR

11057-4159

$5.57

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP

23062-1272

$13.10

23062A

BRACKET-COMP,HORN

23062-1290

$30.87

23062B

BRACKET-COMP,CANISTER

23062-1293

$23.53

23062C

BRACKET-COMP

23062-1334

$24.87

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,2A,GRAY

26006-0052

$6.57

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,BATTERY(-)

26011-0908

$49.33

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26011C

WIRE-LEAD,BATTERY(+)

26011-1906

$60.37

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

26031

HARNESS,MAIN

26031-2990

$1,136.24

27002

RELAY-ASSY

27002-0050

$143.14

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0156

$70.00

39156

PAD,DIAG. CONNECTOR

39156-1886

$2.13

39156A

PAD,7X70X7

39156-2269

$1.81

39156B

PAD,16X47X3

39156-2286

$1.16

39156C

PAD,35X25X0.2

39156-2449

$1.52

39156D

PAD,30X15X1

39156-2495

$0.90

39156E

PAD,25X25X2

39156-2573

$1.21

39156F

PAD,22X13X0.2

39156-2591

$0.81

49006

BOOT

49006-0573

$13.63

53044

TRIM,L=40

53044-0012

$2.97

53044A

TRIM,9X6.5X20

53044-0596

$4.10

53044B

TRIM,9X6.5X30

53044-0632

$4.45

53044C

TRIM,L=16

53044-0657

$11.69

53044D

TRIM,L=50

53044-0699

$4.74

56030

LABEL,FUSE BOX3

56030-0400

$4.37

56030A

LABEL,FUSE BOX1

56030-1376

$3.23

56030B

LABEL,FUSE BOX2

56030-1570

$3.07

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND

92072-0066

$3.39

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,SOCKET,6X14

92154-0907

$1.97

92154B

BOLT,SOCKET,6X12

92154-4100

$2.58

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER

92161-0570

$1.78

92161B

DAMPER,30X20X2

92161-0833

$1.63

92171

CLAMP

92171-0766

$5.65

92171A

CLAMP

92171-0813

$8.68

92171B

CLAMP

92171-0926

$8.68

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,CROS,4X10

92172-1248

$1.31

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-2194

$1.83

92173B

CLAMP

92173-2198

$1.48

92173C

CLAMP

92173-2199

$1.48

92173D

CLAMP

92173-2303

$9.23

92173E

CLAMP

92173-2308

$6.77

92173F

CLAMP

92173-2345

$2.80

92210

NUT,POP,6MM,L=15

92210-1397

$5.48

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
