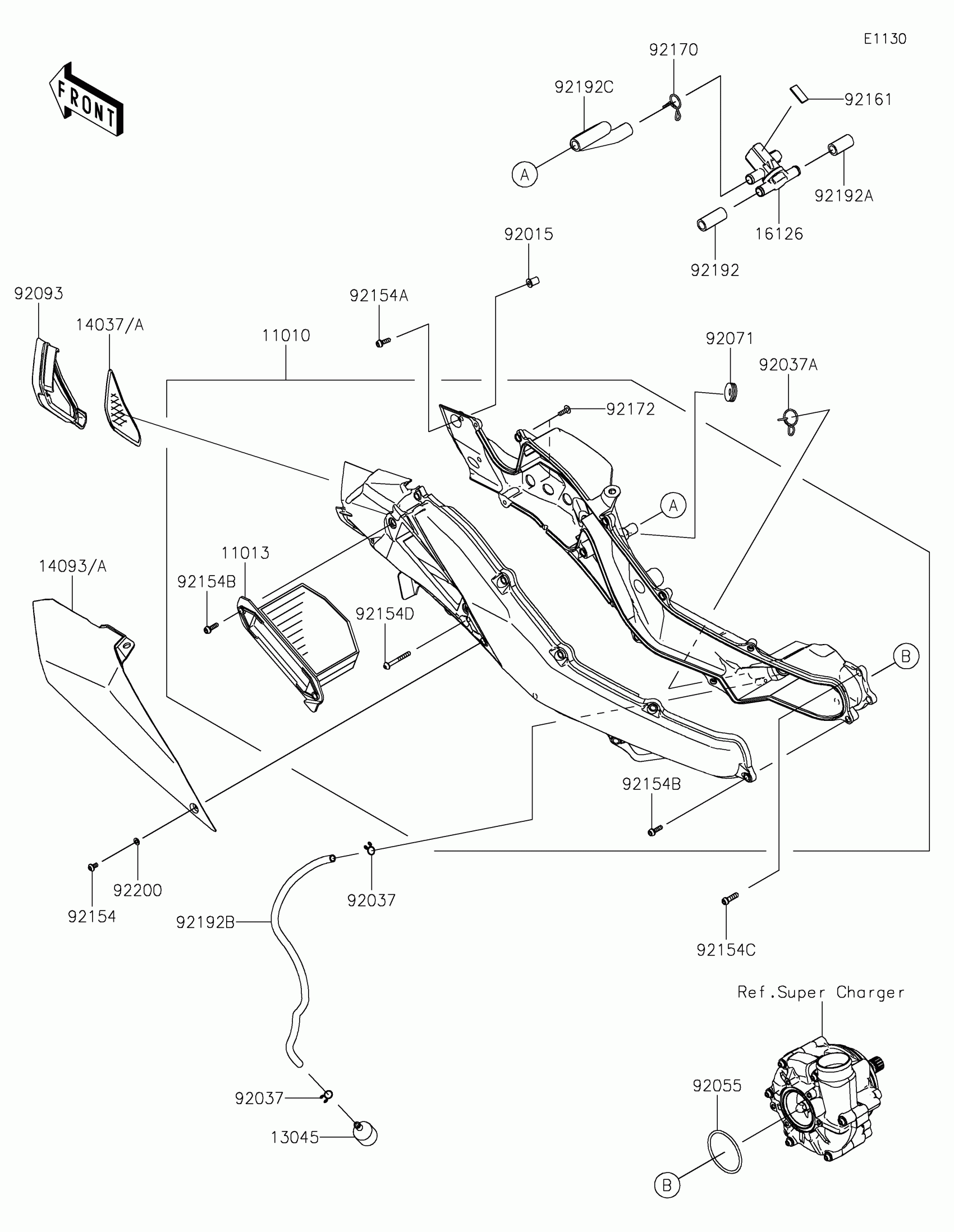

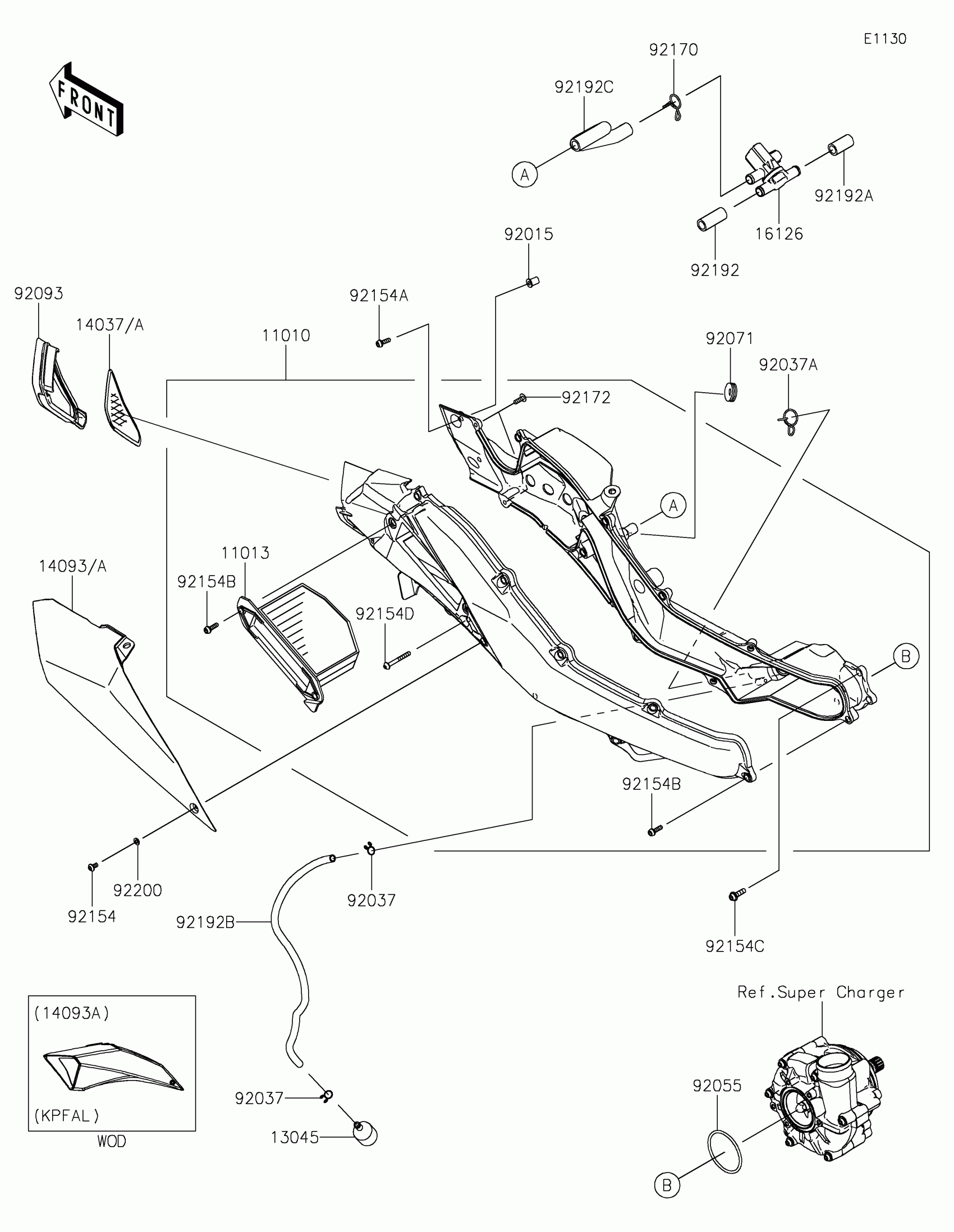

Kawasaki Z H2 Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0958

$678.56

11013

ELEMENT-AIR FILTER

11013-0804

$54.98

13045

RECEIVER-OIL

13045-1057

$7.79

14037A

SCREEN,G.B.GREEN

14037-0807-46Y

$58.94

14093A

COVER,M.C.BLACK

14093-0976-43Z

$493.47

16126

VALVE,AIR SWITCHING

16126-0745

$193.92

92015

NUT,WELL,5MM

92015-1757

$5.81

92037

CLAMP,TUBE

92037-147

$5.84

92037A

CLAMP,TUBE

92037-213

$3.43

92055

RING-O,59.6X3.5

92055-0974

$17.20

92071

GROMMET

92071-056

$3.39

92093

SEAL,SCREEN

92093-0746

$29.23

92154

BOLT,SOCKET,5X10

92154-0211

$1.78

92154A

BOLT,SOCKET,5X16

92154-1449

$1.10

92154B

BOLT,SOCKET,5X18

92154-1450

$1.10

92154C

BOLT,SOCKET,6X22,MEC

92154-2736

$2.20

92154D

BOLT,SOCKET,5X45

92154-2934

$5.56

92161

DAMPER,12X27X2

92161-2122

$2.59

92170

CLAMP

92170-1017

$3.72

92172

SCREW,TAPPING,5X16

92172-0482

$1.10

92192

TUBE,ASWV-HEAD CAP,LH

92192-1847

$14.20

92192A

TUBE,ASWV-HEAD CAP,RH

92192-2276

$14.20

92192B

TUBE,DRAIN

92192-2280

$7.59

92192C

TUBE,2ND AIR

92192-2281

$11.29

92200

WASHER,5.2X10X1.0

92200-1820

$0.68
