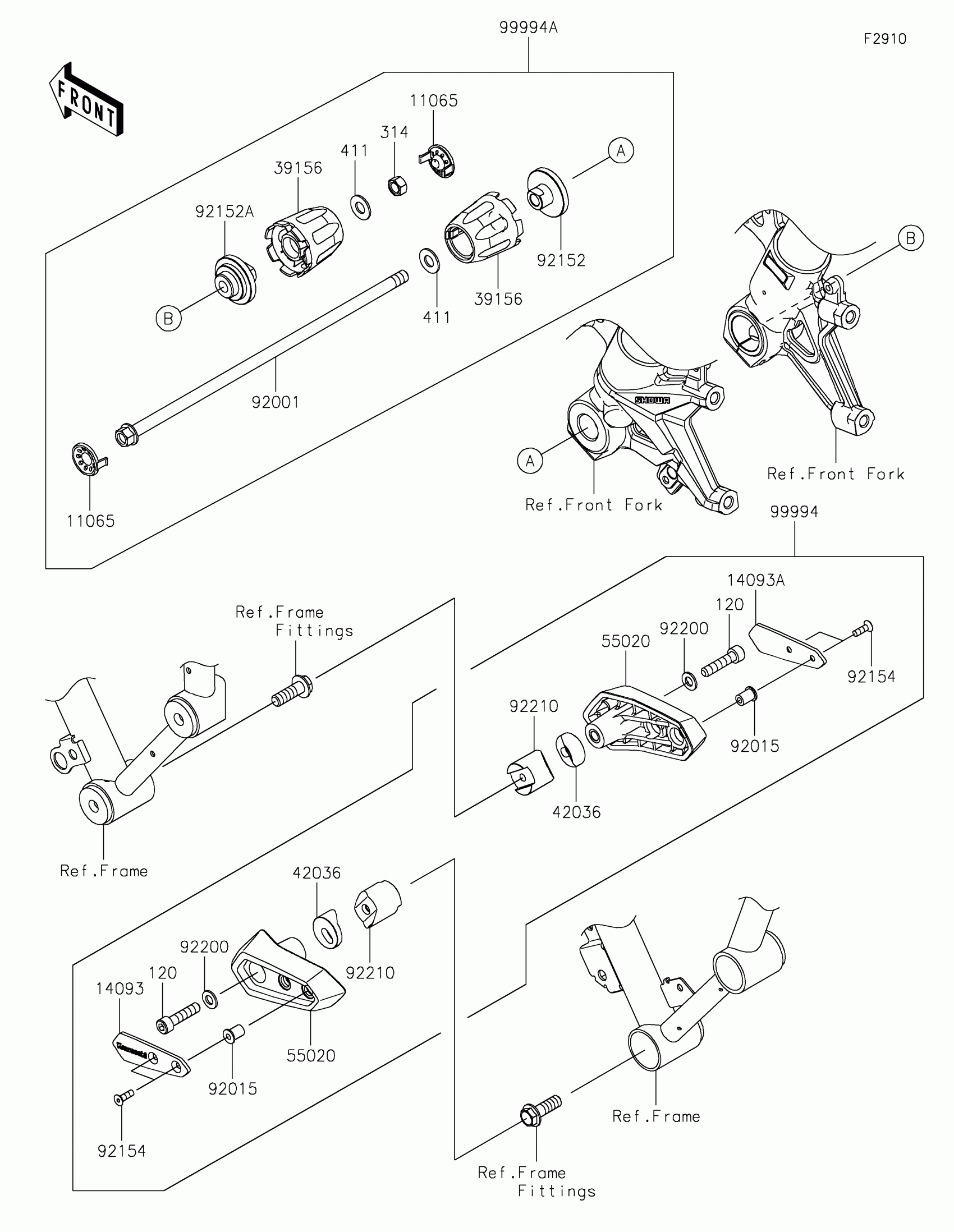

Kawasaki Z H2 Accessory(Slider) Diagram

Description

Price

11065

CAP,B.SILVER

11065-1313-54N

$7.52

14093

COVER,SLIDER,LH

14093-0350

$89.41

14093A

COVER,SLIDER,RH

14093-0351

$89.41

39156

PAD,AXLE SLIDER

39156-2212

$59.26

42036

SLEEVE

42036-0848

$90.66

55020

GUARD

55020-1997

$142.02

92001

BOLT,FLANGED,10X325

92001-1654

Unavailable

92015

NUT,WELL,5MM

92015-1757

$7.29

92152

COLLAR,LH

92152-2647

$148.06

92152A

COLLAR,RH

92152-2648

$143.42

92154

BOLT,SOCKET,5X16

92154-1014

$0.85

92200

WASHER,8.4X16X1.6

92200-0807

$4.41

92210

NUT

92210-1751

$125.13

99994

FRAME SLIDER

99994-1384

$344.31

99994A

FRONT AXLE SLIDER

99994-1385

$158.65

120

BOLT-SOCKET,8X35

120CB0835

$4.76

314

NUT-HEX-FINE,10MM

314BA1000

$1.06

411

WASHER-PLAIN,10MM

411AA1000

$0.96
