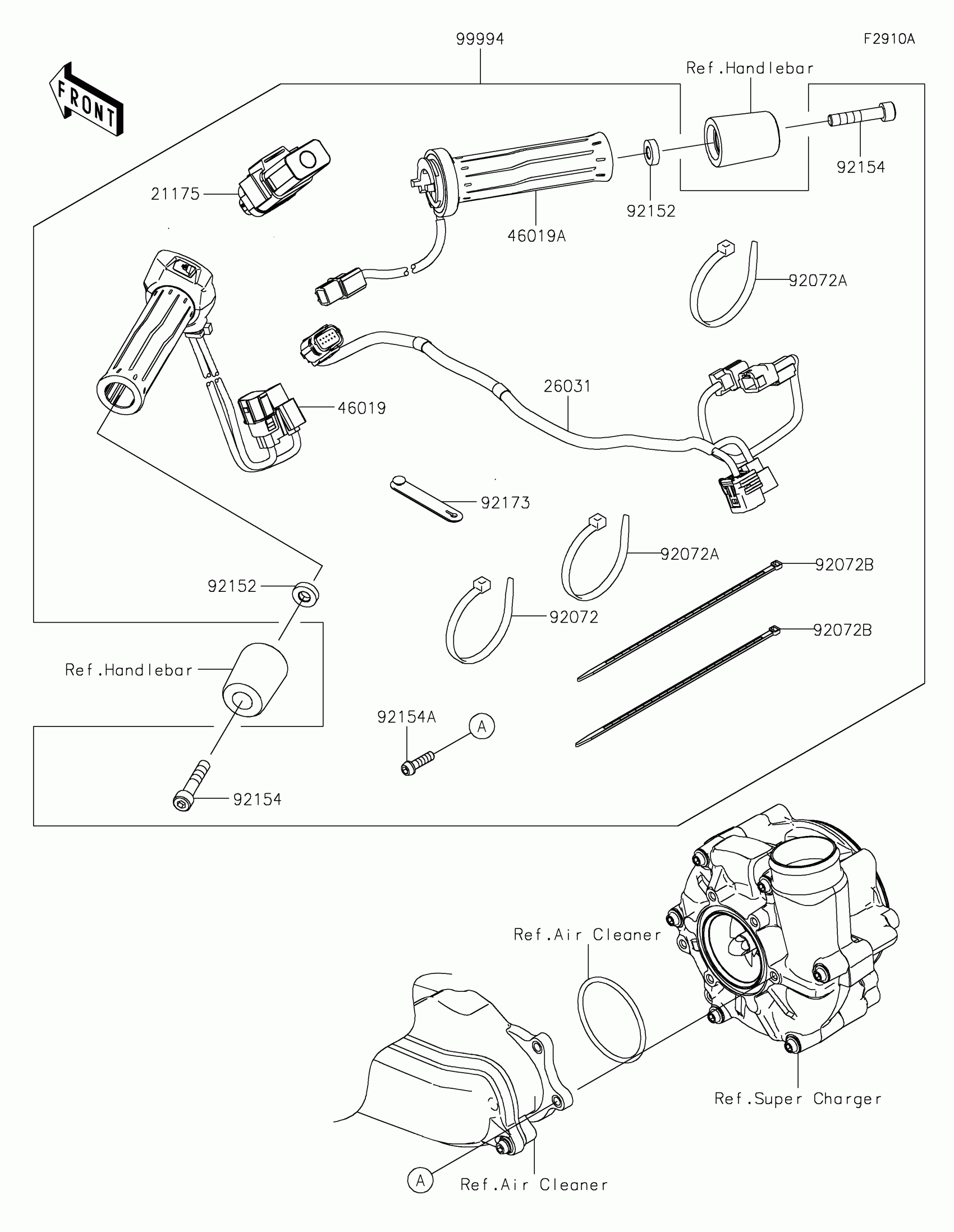

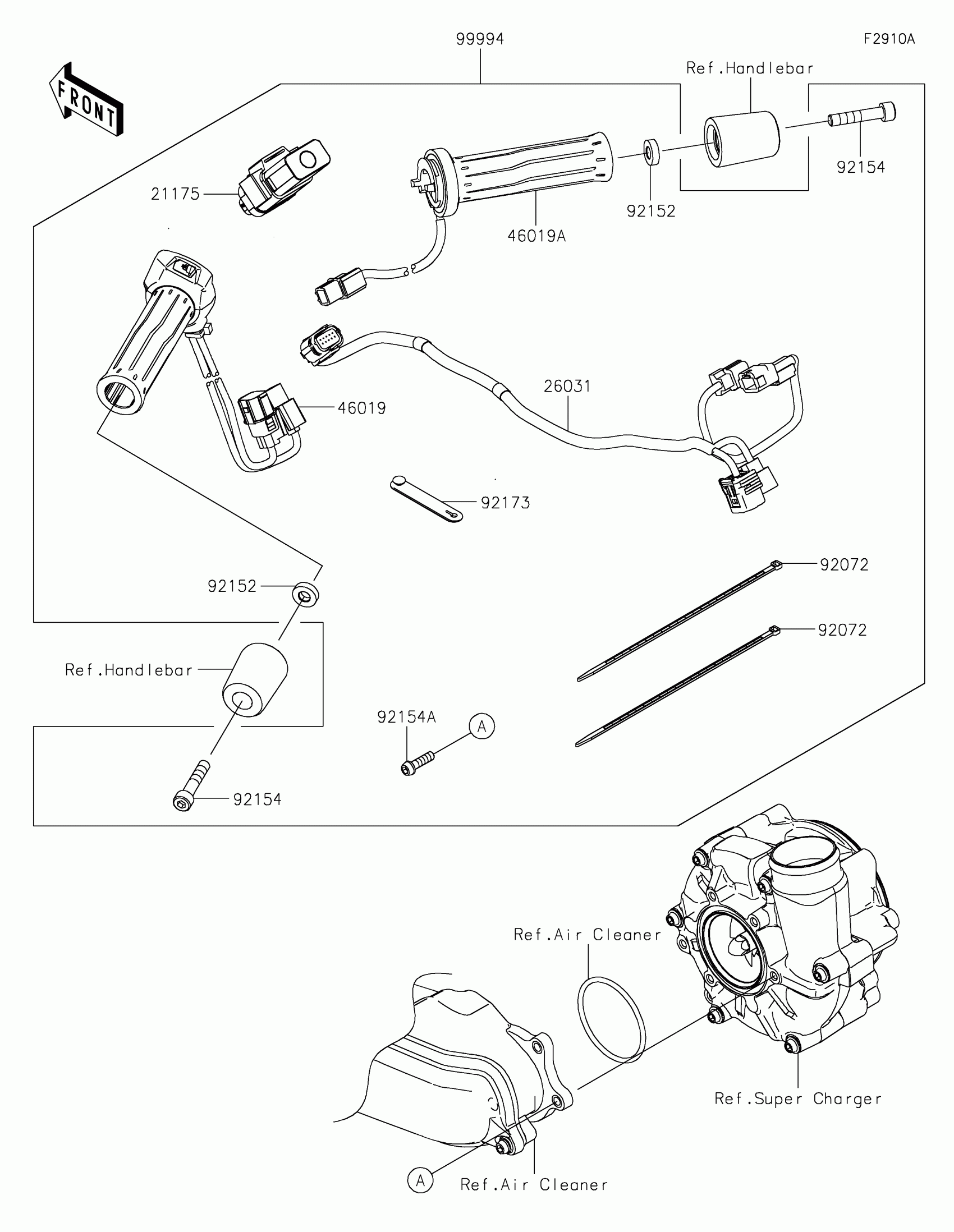

Kawasaki Z H2 Accessory(Grip Heater) Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

$127.41

26031

HARNESS

26031-2895

$114.15

46019

GRIP-ASSY,GRIP HEATER,LH

46019-0098

$197.39

46019A

GRIP-ASSY,GRIP HEATER,RH

46019-0099

$246.04

92072

BAND

92072-3851

$1.93

92152

COLLAR,8.2X18X5

92152-1848

$4.98

92154

BOLT,SOCKET,8X40

92154-1001

$3.68

92154A

BOLT,SOCKET,6X22,MEC

92154-2736

$1.90

92173

CLAMP

92173-2199

$1.32

99994

GRIP HEATER

99994-1434

$455.63
