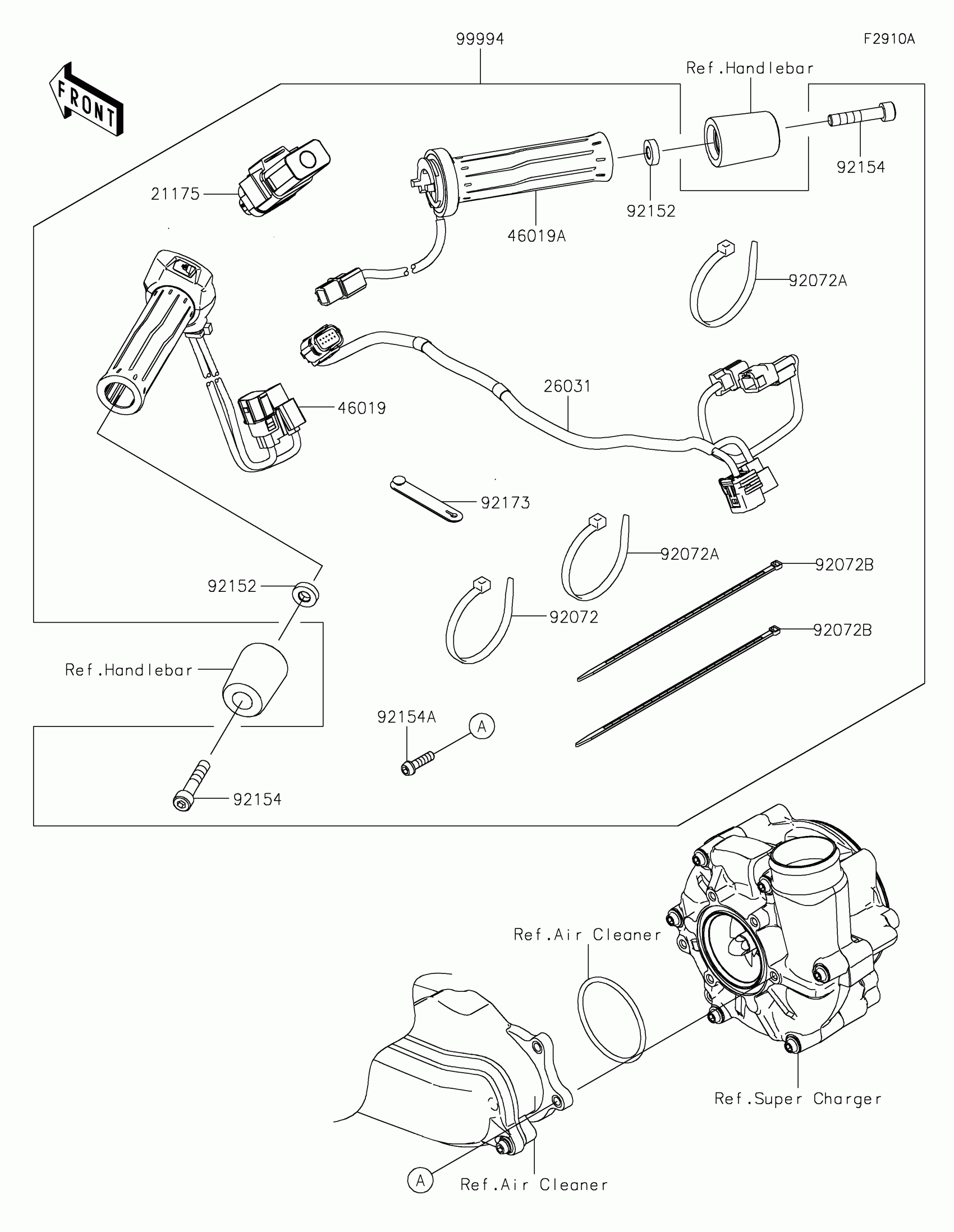

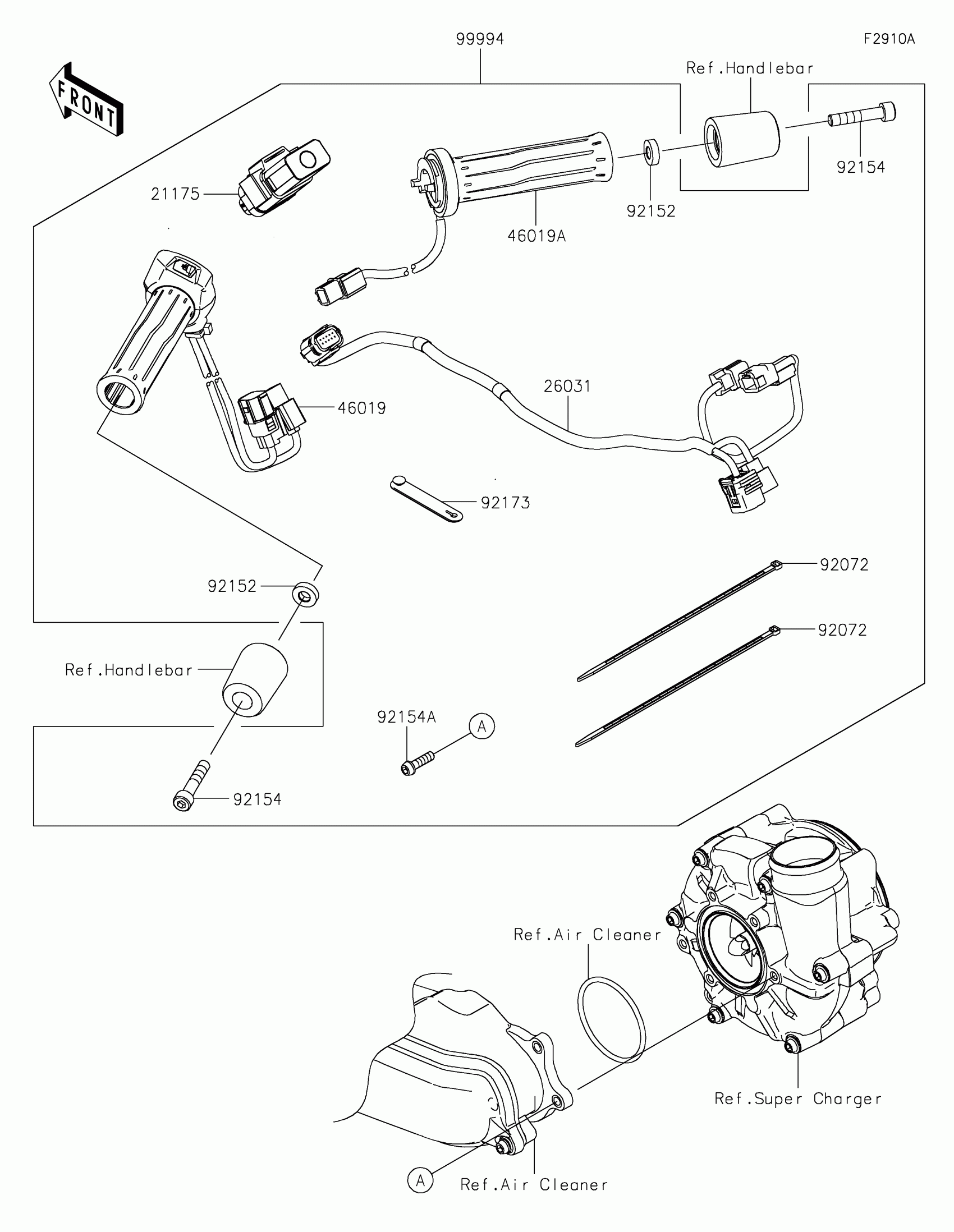

Kawasaki Z H2 Accessory(Grip Heater) Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

$124.80

26031

HARNESS

26031-2895

$111.78

46019

GRIP-ASSY,GRIP HEATER,LH

46019-0112

$186.38

46019A

GRIP-ASSY,GRIP HEATER,RH

46019-0113

$232.33

92072

BAND

92072-0904

$1.11

92072A

BAND,L=365

92072-1197

$7.84

92072B

BAND

92072-3851

$2.73

92152

COLLAR,8.2X18X5

92152-1848

$5.69

92154

BOLT,SOCKET,8X40

92154-1001

$4.10

92154A

BOLT,SOCKET,6X22,MEC

92154-2736

$2.70

92173

CLAMP

92173-2199

$1.48

99994

GRIP HEATER

99994-1667

$449.93
