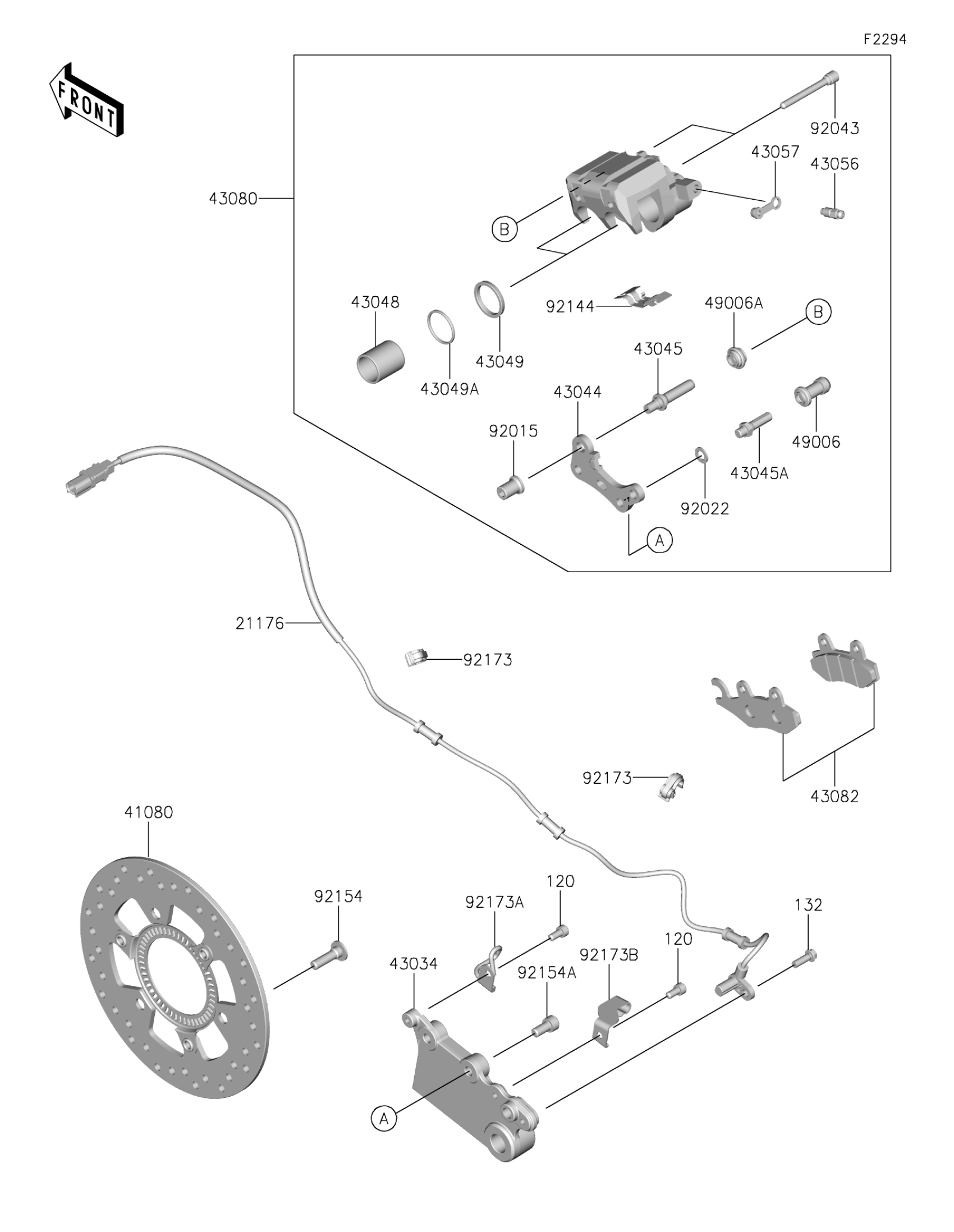

Kawasaki Z e-1 ABS Rear Brake Diagram
#
Description
Price
21176
SENSOR,SPEED,RR
21176-1193
$139.73
41080
DISC,RR,W/R,BLACK
41080-0762-11H
$262.90
43034
HOLDER-BRAKE
43034-0171
$85.82
43044
HOLDER-COMP-CALIPER
43044-1112
$118.22
43045
SHAFT-CALIPER
43045-0013
$20.77
43045A
SHAFT-CALIPER
43045-1010
$20.77
43048
PISTON-CALIPER
43048-1068
$81.86
43049
PACKING,PISTON SEAL
43049-1060
$19.45
43049A
PACKING,PISTON SEAL
43049-1061
$10.56
43056
BREATHER-BRAKE
43056-0004
$13.48
43057
CAP-BREATHER
43057-1001
$4.91
43080
CALIPER-SUB-ASSY,RR,BLACK
43080-0246-25S
$385.27
43082
PAD-ASSY-BRAKE
43082-0210
$385.27
49006
BOOT,CALIPER
49006-1088
$11.61
49006A
BOOT,CALIPER
49006-1242
$5.46
92015
NUT
92015-1740
$6.26
92022
WASHER,WAVE
92022-1373
$3.92
92043
PIN,HANGER
92043-1416
$18.57
92144
SPRING,PAD
92144-1847
$30.33
92154
BOLT,SOCKET,8X30
92154-1865
$4.69
92154A
BOLT-SOCKET,8X16
92154-7088
$3.04
92173
CLAMP,HOSE&SENSOR LINE
92173-1613
$1.42
92173A
CLAMP
92173-2481
$5.31
92173B
CLAMP
92173-2483
$3.53
120
BOLT-SOCKET,6X12
120CA0612
$1.71
132
BOLT-FLANGED-SMALL,6X18
132BC0618
$2.15
