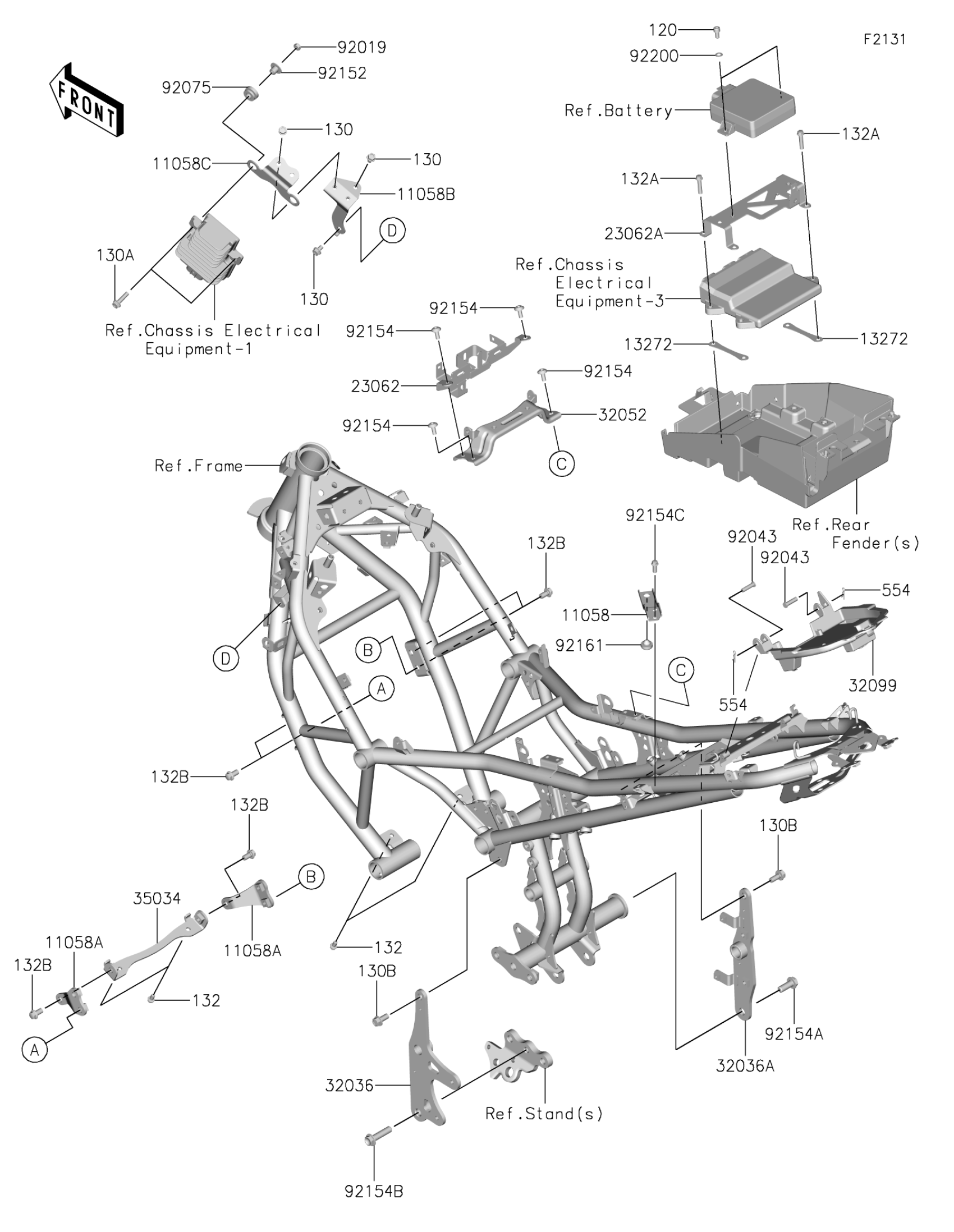

Kawasaki Z e-1 ABS Frame Fittings Diagram
#
Description
Price
11058
BRACKET
11058-0752
$10.19
11058A
BRACKET
11058-0820
$15.04
11058B
BRACKET
11058-1315
$9.98
11058C
BRACKET
11058-1316
$8.87
13272
PLATE
13272-4295
$1.90
23062
BRACKET-COMP,VDS
23062-1431
$22.13
23062A
BRACKET-COMP,BMU
23062-1432
$12.18
32036
BRACKET-SWINGARM,LH
32036-0417
$104.15
32036A
BRACKET-SWINGARM,RH
32036-0418
$79.62
32052
BRACKET-TANK
32052-0809
$32.18
32099
CASE,SEAT UNDER
32099-0787
$11.02
35034
REINFORCE
35034-0615
$26.06
92019
NUT,LOCK,6MM
92019-008
$4.26
92043
PIN,6X23
92043-0746
$1.97
92075
DAMPER
92075-277
$2.84
92152
COLLAR
92152-2855
$2.56
92154
BOLT,SOCKET,6X14
92154-0932
$1.97
92154A
BOLT,FLANGED,10X25
92154-2251
$4.60
92154B
BOLT,FLANGED,10X40
92154-2812
$4.85
92154C
BOLT,6X14
92154-4129
$0.90
92161
DAMPER,9.5X18X6
92161-1473
$1.63
92200
WASHER,6.5X11.5X0.8
92200-0947
$0.39
120
BOLT-SOCKET,6X12
120CA0612
$1.71
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X25
130BA0625
$1.20
130B
BOLT-FLANGED,8X18
130CA0818
$2.55
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X25
132BA0625
$2.80
132B
BOLT-FLANGED-SMALL,8X14
132BA0814
$3.02
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
