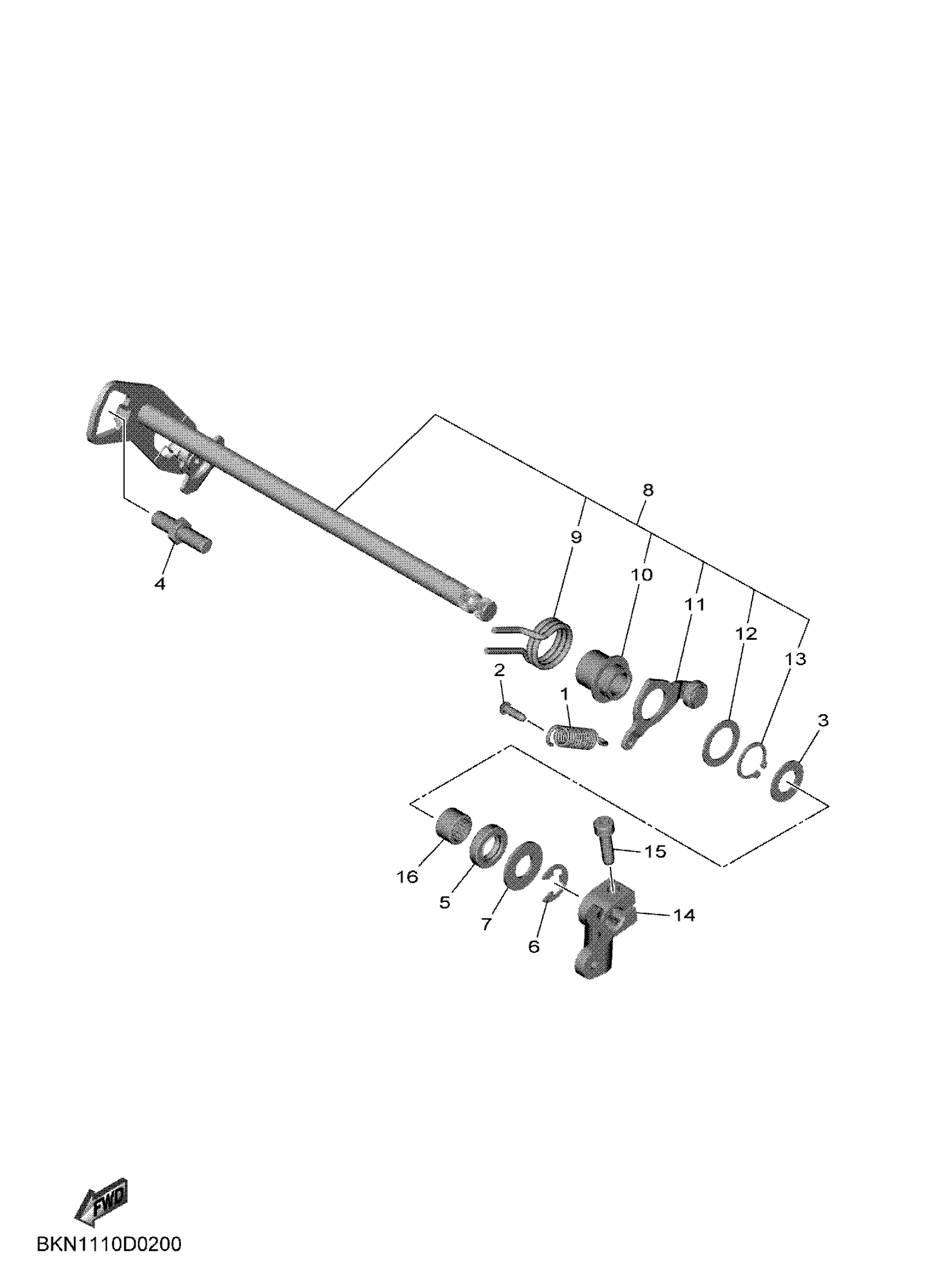

Yamaha YZFR9SW (YZFR9) BKN12 2025 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING

B7N-18143-00-00

$1.82

2

HOOK, SPRING

132-16346-00-00

$8.14

3

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

4

STOPPER, SCREW

5VK-18127-00-00

Unavailable

5

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

6

CIRCLIP

99002-10600-00

$5.86

7

WASHER, PLATE (353)

90201-12575-00

$5.75

8

SHIFT SHAFT ASSY

BKN-18101-00-00

Unavailable

9

SPRING, TORSION

90508-32141-00

Unavailable

10

SPACER

B7N-18175-00-00

Unavailable

11

STOPPER LEVER ASSY

B7N-18140-00-00

Unavailable

12

WASHER, PLATE (30X)

90201-177G4-00

$6.34

13

CIRCLIP(1EY)

99009-17400-00

$3.65

14

ARM, SHIFT

B7N-18112-00-00

Unavailable

15

BOLT,SOCKET HEAD

91314-06020-00

$1.91

16

BEARING

93317-11295-00

Unavailable
