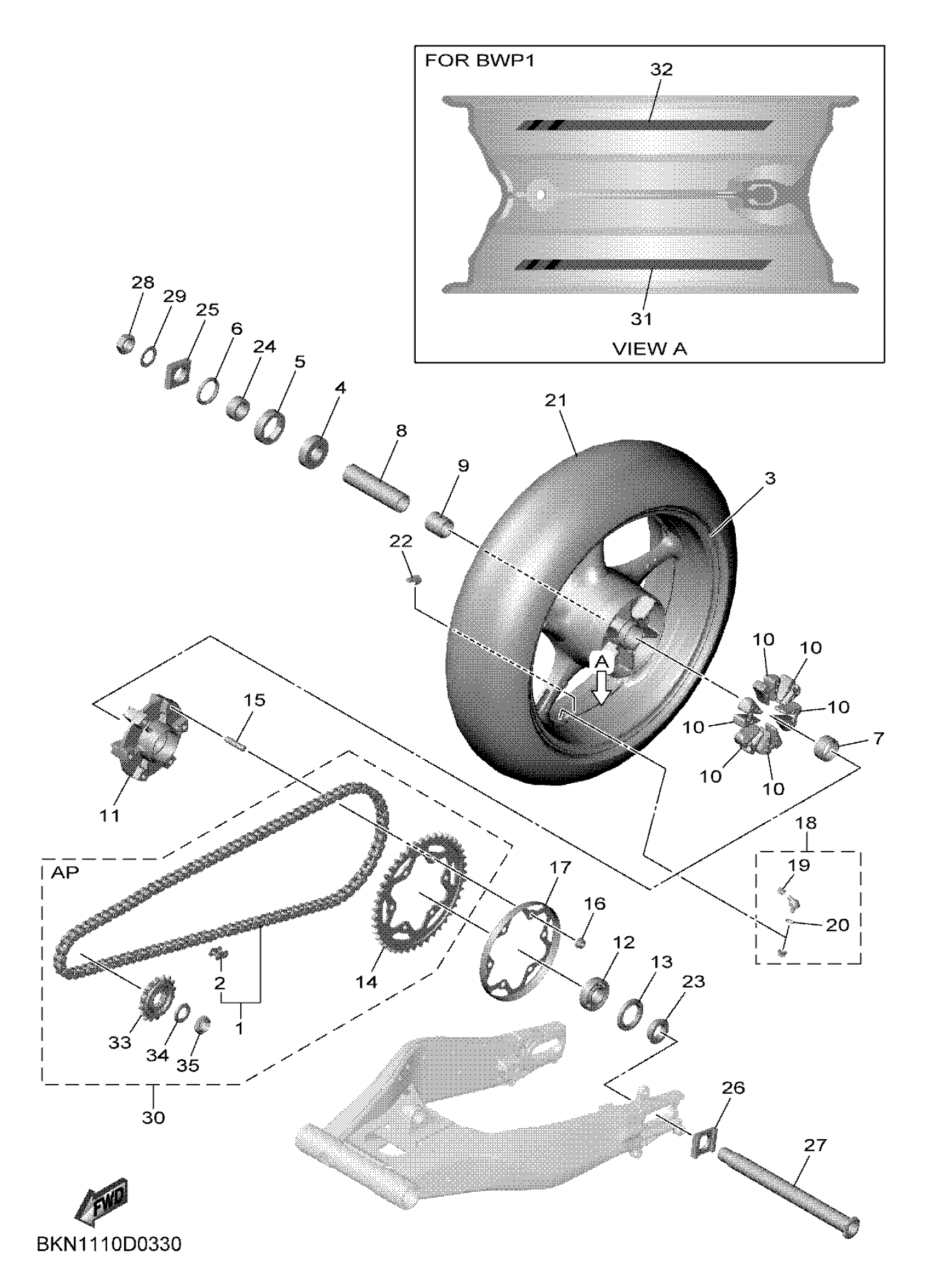

Yamaha YZFR9SW (YZFR9) BKN12 2025 REAR WHEEL Diagram

#

Description
Price

1

SET, CHAIN

94A40-25110-00

$231.99

2

JOINT, CHAIN (DID525HV3 ZJ)

94682-5202R-00

$16.99

3

CAST WHEEL, REAR

BKN-25338-00-98

$500.99

4

BEARING(3JN)

93306-20531-00

$50.99

5

NUT, ADJUSTING

BN6-2538E-00-00

$88.99

6

OIL SEAL

93106-40001-00

$12.49

7

BEARING

93317-43580-00

$73.99

8

SPACER, BEARING

5PW-25317-00-00

$57.99

9

COLLAR, WHEEL

BKN-25383-00-00

$46.99

10

DAMPER

5SL-25364-00-00

$41.99

11

CLUTCH, HUB

B60-25366-00-00

Unavailable

12

BEARING(3JN)

93306-20531-00

$50.99

13

OIL SEAL

93106-40013-00

$14.99

14

SPROCKET, DRIVEN (43T)

B67-25443-00-00

$154.99

15

BOLT, STUD

90116-10048-00

Unavailable

16

NUT, SELF-LOCKING

90185-10011-00

Unavailable

17

BRACKET 1

B67-2537W-10-00

Unavailable

18

VALVE, RIM

93900-00045-00

Unavailable

19

CAP

B5Y-25188-00-00

Unavailable

20

O-RING

B5Y-251H4-00-00

Unavailable

21

TIRE (180/55ZR17M/C 73W)

94118-17093-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

22

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

23

COLLAR

90387-28029-00

Unavailable

24

COLLAR

90387-28017-00

Unavailable

25

PULLER, CHAIN 1

4XV-25388-00-00

Unavailable

26

PULLER, CHAIN 2

4XV-25389-00-00

Unavailable

27

AXLE, WHEEL

4XV-25381-10-00

Unavailable

28

NUT SELF-LOCKING

90185-24002-00

Unavailable

29

WASHER PLATE

90201-25027-00

Unavailable

30

CHAIN & SPROCKET K

BKN-W001A-10-00

Unavailable

33

SPROCKET, DRIVE

2CR-17460-00-00

Unavailable

34

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

35

NUT

90179-22018-00

Unavailable
