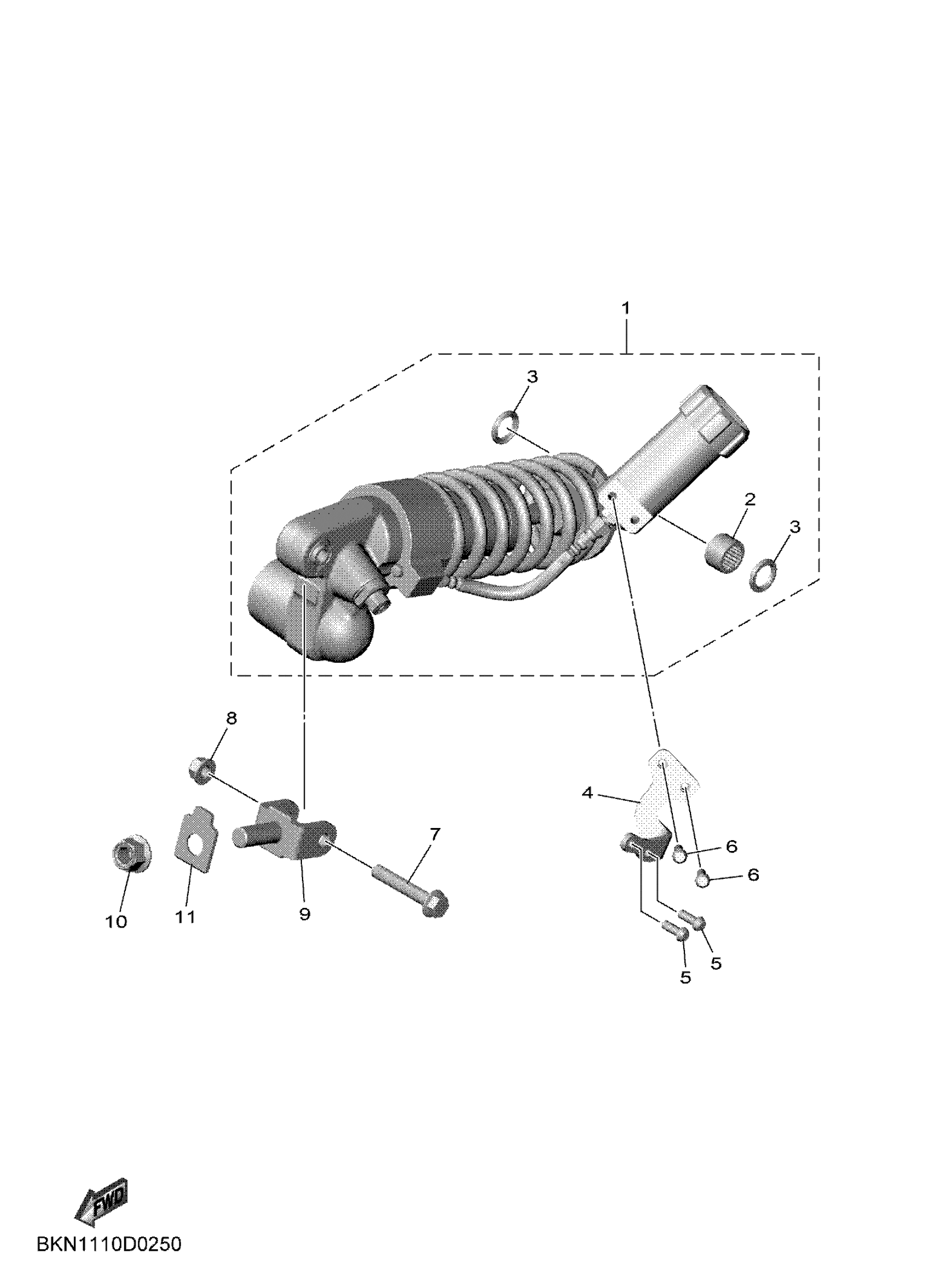

Yamaha YZFR9SW (YZFR9) BKN12 2025 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

BKN-22210-40-00

Unavailable

2

BEARING

93315-31758-00

$32.40

3

OIL SEAL

93109-17071-00

$6.29

4

BRACKET 2

BKN-2216C-00-00

Unavailable

5

BOLT, BUTTON HEAD

92017-06016-00

$5.75

6

BOLT, BUTTON

92017-06030-00

$6.22

7

BOLT, WASHER BASED(1KT)

90105-10402-00

$7.24

8

NUT, S/L FLANGE

95602-10200-00

$2.14

9

BRACKET, UPPER

5SL-22219-00-00

Unavailable

10

NUT, U FLANGE

95602-14200-00

$9.25

11

WASHER 1

13S-22243-00-00

Unavailable
