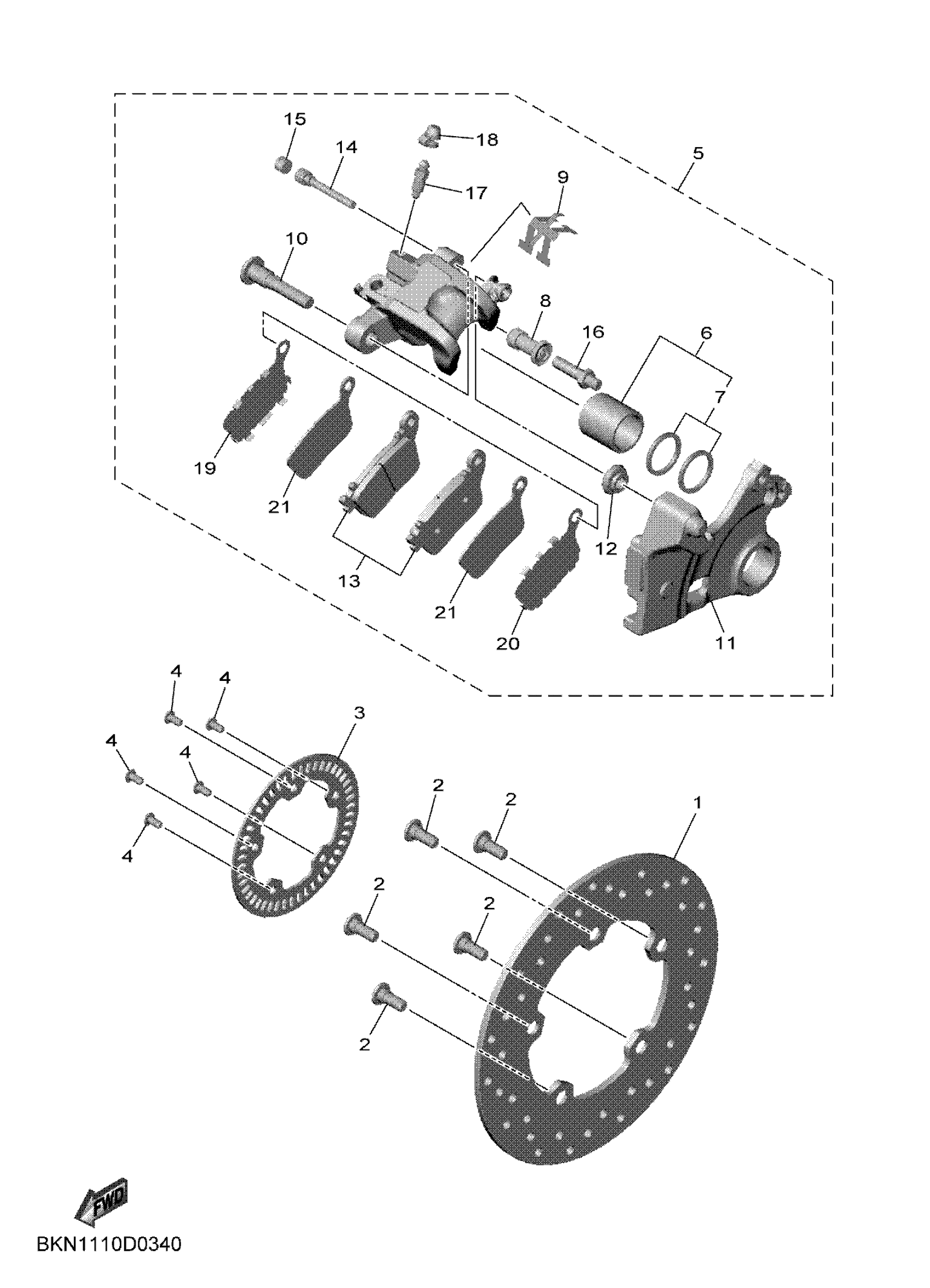

Yamaha YZFR9SW (YZFR9) BKN12 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5SL-2582W-00-00

$208.21

2

SCREW

90149-08010-00

$5.99

3

ROTOR, SENSOR

2PW-2517G-00-00

Unavailable

4

SCREW

90149-05030-00

$1.99

5

CALIPER ASSY, REAR 2

BKN-2580W-00-00

Unavailable

6

PISTON ASSY, CALIP

2CR-25802-00-00

Unavailable

7

CALIPER SEAL KIT

3JD-25803-50-00

$13.40

8

BOOT 2

1UY-25937-51-00

$11.48

9

SUPPORT, PAD

2CR-25919-50-00

$5.41

10

PIN, SLIDE

5DH-25914-50-00

$17.58

11

BRACKET, SUPPORT

BKN-25921-50-00

Unavailable

12

BOOT, CALIPER

3JD-25917-00-00

$7.03

13

BRAKE PAD KIT 2

2CR-25806-00-00

$43.71

14

PIN, PAD

2CR-25924-00-00

$7.61

15

PLUG

5DH-25916-50-00

$2.78

16

BOLT

3SP-25914-51-00

Unavailable

17

SCREW, BLEED

8CR-25824-00-00

Unavailable

18

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

19

SHIM, CALIPER

2CR-25827-00-00

Unavailable

20

SHIM, CALIPER

2CR-25827-10-00

Unavailable

21

SHIM, CALIPER

2CR-25828-00-00

Unavailable
