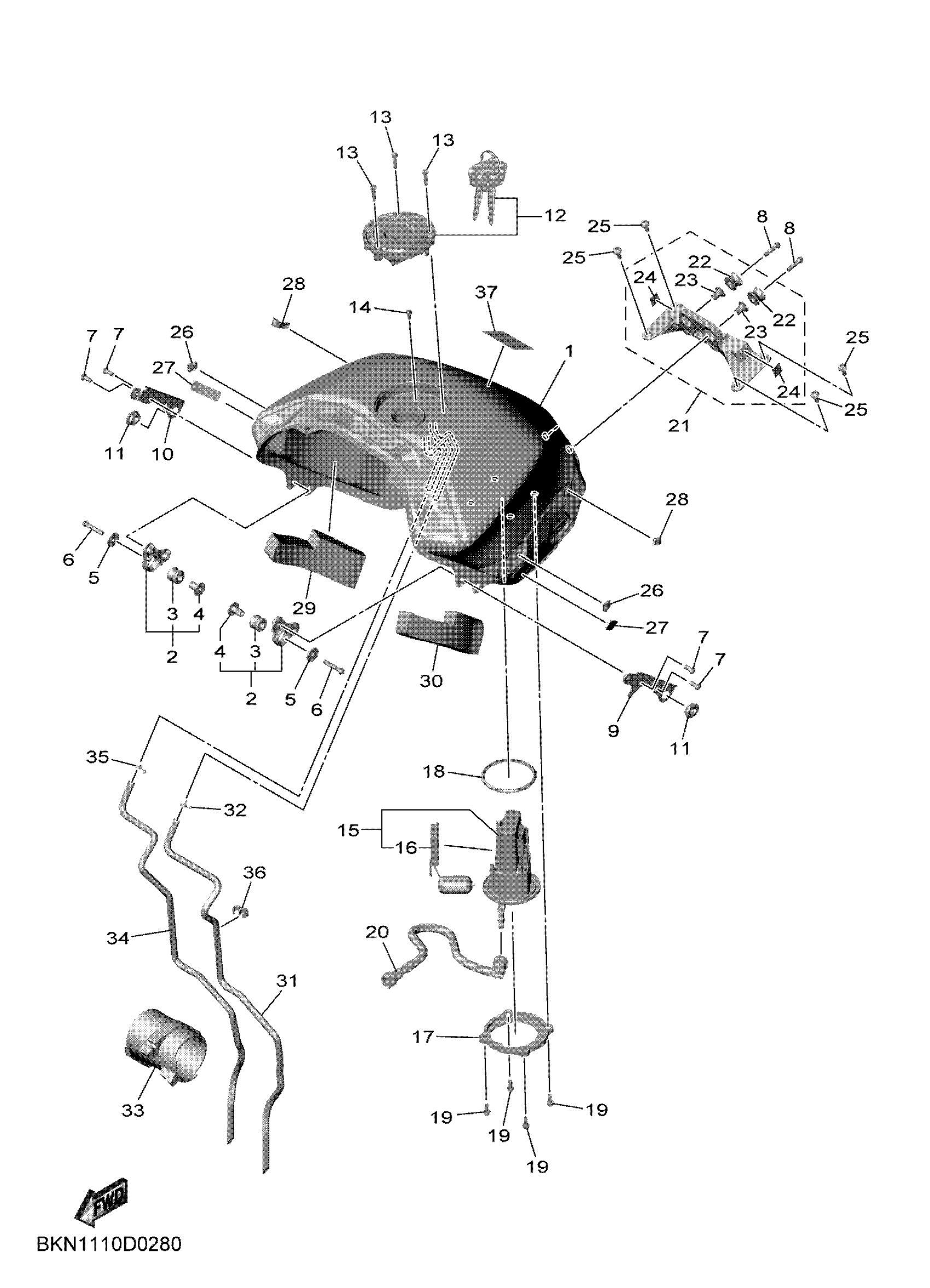

Yamaha YZFR9SW (YZFR9) BKN12 2025 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BKN-YK241-00-P3

$671.99

2

TANK BRACKET ASSY

23P-24104-01-00

Unavailable

3

GROMMET

90480-18008-00

$3.71

4

COLLAR

90387-06266-00

$4.61

5

WASHER PLATE 137241870000

90201-06072-00

$9.49

6

BOLT, BUTTON

92017-06035-00

$3.13

7

BOLT, BUTTON HEAD

92017-06014-00

$4.29

8

BOLT, BUTTON HEAD

92012-06025-00

$3.13

9

PLATE, FITTING

BKN-2411F-00-00

$15.99

10

HOOK TANK FITTING

BKN-2411L-00-00

$14.99

11

GROMMET(4DN)

90480-01558-00

$4.19

12

CAP ASSY

2CR-24602-01-00

$226.99

13

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

14

BOLT

91312-05010-00

$5.60

15

FUEL PUMP COMP.

BEA-13907-10-00

$256.99

16

SENDER UNIT ASSY,

BEA-85752-00-00

Unavailable

17

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

18

O-RING

1RC-24486-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

20

PIPE, FUEL 1

BKN-13971-00-00

Unavailable

21

TANK BRACKET ASSY 2

BKN-24105-00-00

Unavailable

22

GROMMET

3D7-24339-00-00

Unavailable

23

COLLAR

90387-06136-00

Unavailable

24

SEAL

5JW-23844-00-00

Unavailable

25

BOLT

90111-06029-00

Unavailable

26

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

27

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

28

DAMPER 1

7TG-2214F-00-00

Unavailable

29

DAMPER, PLATE 4

BKN-2414N-00-00

Unavailable

30

DAMPER, PLATE 5

BKN-2414P-00-00

Unavailable

31

PIPE 5

BKN-24315-10-00

Unavailable

32

CLIP

90467-090A2-00

Unavailable

33

DAMPER, LOCATING 3

BME-24183-10-00

Unavailable

34

PIPE 3

BKN-24313-20-00

Unavailable

35

CLIP

90467-090A2-00

Unavailable

36

CLAMP(6M7)

90464-09M31-00

Unavailable

37

LABEL, CAUTION

4C8-2118K-01-00

Unavailable
