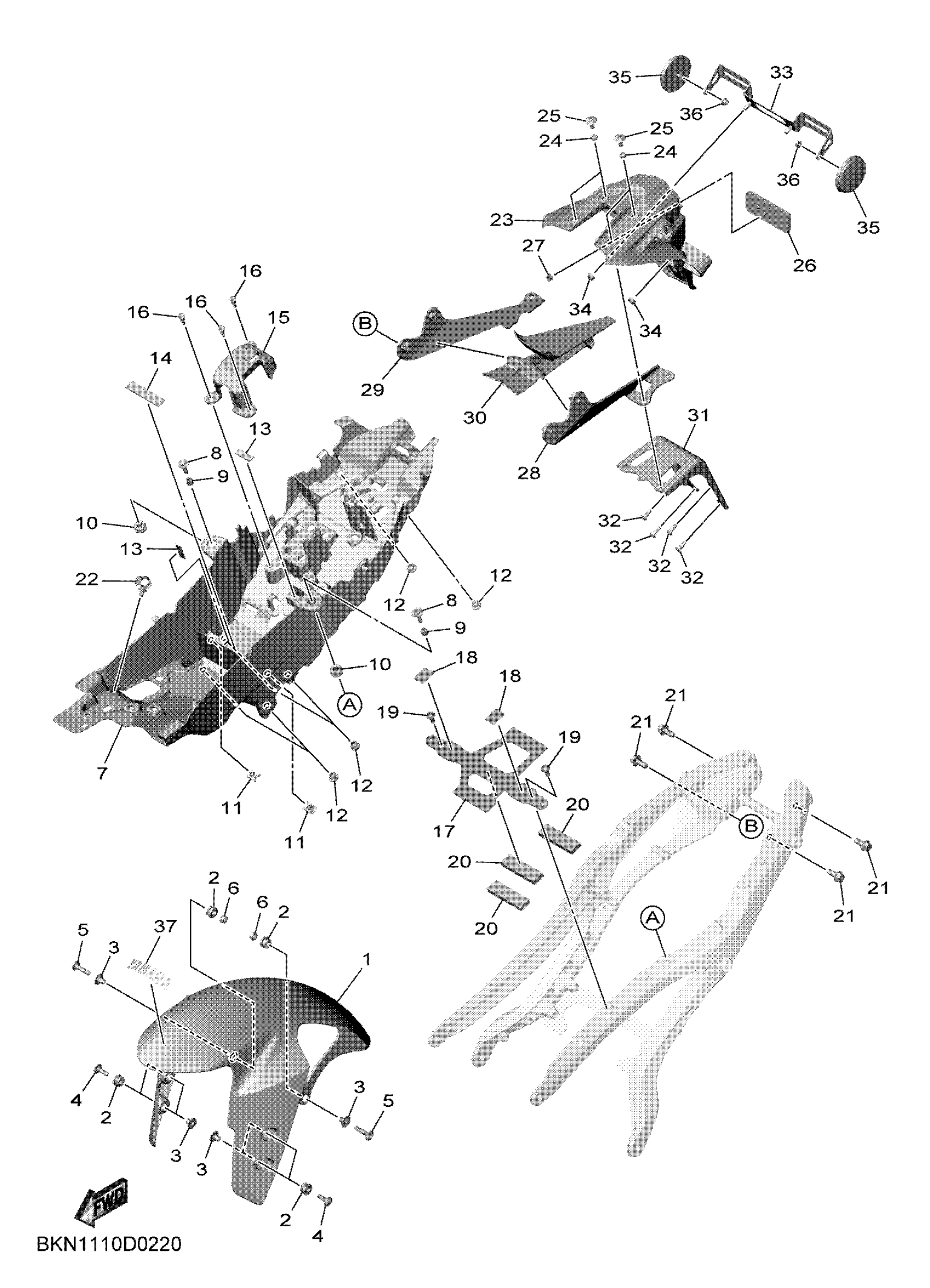

Yamaha YZFR9SW (YZFR9) BKN12 2025 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BKN-21511-00-P0

$163.99

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06051-00

$5.60

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

BKN-8212B-00-00

$69.99

8

BOLT WITH WASHER

90119-06313-00

Unavailable

9

COLLAR

90387-06113-00

$11.49

10

GROMMET

90480-14035-00

$2.17

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

PLUG (17J)

90338-10132-00

Unavailable

13

DAMPER

B7N-21649-00-00

$3.35

14

DAMPER 2

B5Y-21486-00-00

$2.75

15

COVER 9

BME-2116H-00-00

$9.49

16

RIVET

90269-06008-00

Unavailable

17

BRKT.

BKN-2116B-01-00

Unavailable

18

PROTECTOR

3MA-27491-00-00

Unavailable

19

BOLT

90111-06029-00

Unavailable

20

DAMPER

5GJ-21717-00-00

Unavailable

21

BOLT, FLANGE

95812-08020-00

Unavailable

22

CLAMP

90464-18002-00

Unavailable

23

GUARD, MUD

B7N-21629-00-00

Unavailable

24

COLLAR

90387-06106-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-06190-00

Unavailable

26

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

27

NUT, S/L FLANGE

95607-05200-00

Unavailable

28

STAY 1

BME-2164F-00-00

Unavailable

29

STAY 2

BME-2164G-00-00

Unavailable

30

COVER, REAR FENDER 2

BKN-2163E-00-00

Unavailable

31

STAY, PLATE

B7N-21682-00-00

Unavailable

32

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

33

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

34

NUT, SELF-LOCKING

95617-06100-00

Unavailable

35

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

37

EMBLEM, YAMAHA

99247-00080-00

Unavailable
