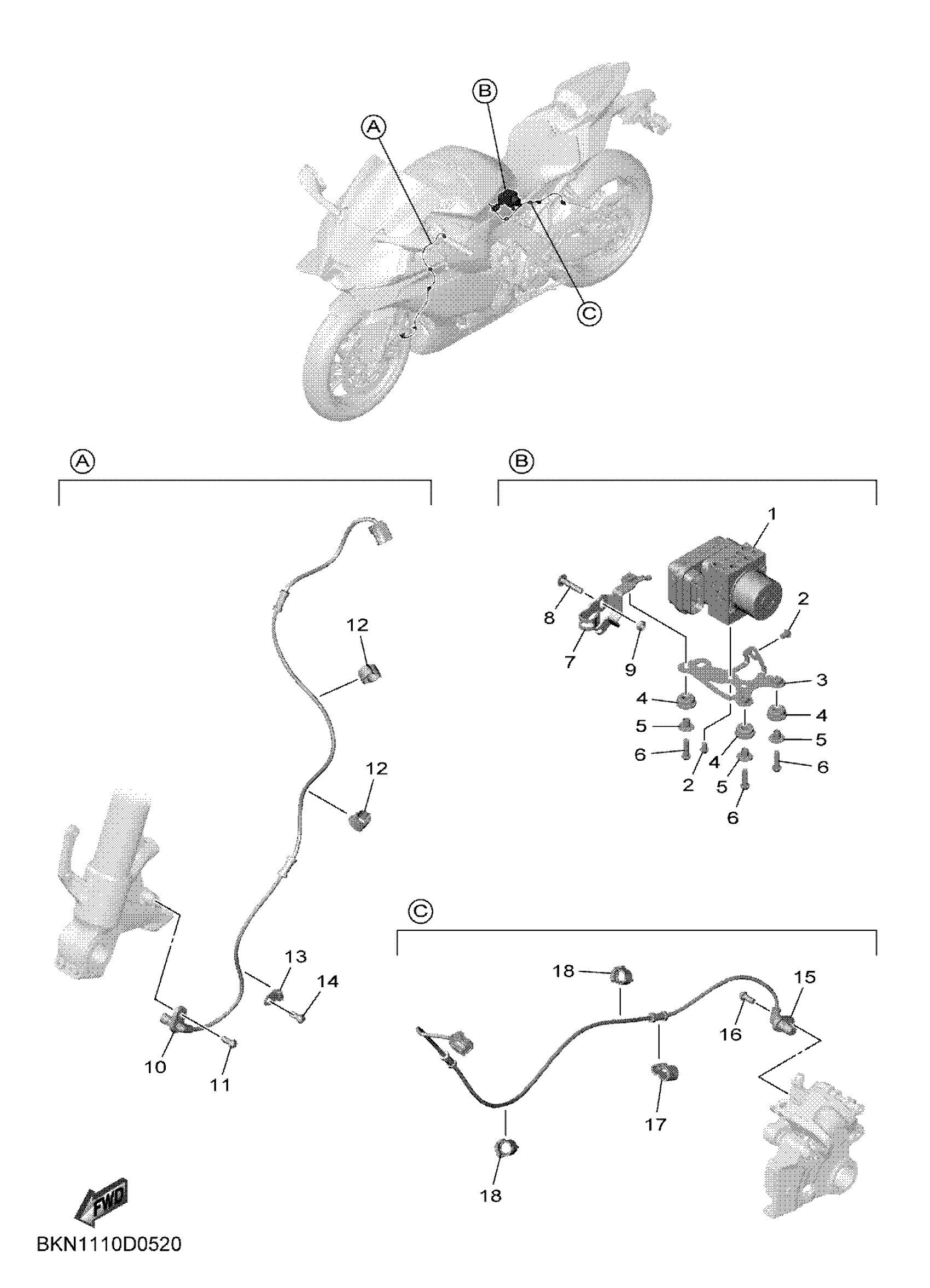

Yamaha YZFR9SW (YZFR9) BKN12 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

BKN-85930-08-00

Unavailable

2

BOLT, HEXAGON SOCK

90111-06204-00

Unavailable

3

BRACKET, UNIT

BME-85991-00-00

$20.99

4

GROMMET(4FU)

90480-13567-00

$4.99

5

COLLAR

90387-06160-00

Unavailable

6

BOLT, BUTTON HEAD

92012-06020-00

$8.49

7

BRACKET

BKN-85542-00-00

$43.99

8

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WHEEL SENSOR ASSY, FRONT

BKN-85970-00-00

$111.99

11

BOLT, BUTTON HEAD

92017-06014-00

$4.29

12

CLAMP

90464-14010-00

$3.40

13

HOLDER, CABLE

2CR-23317-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-06014-00

$4.29

15

WHEEL SENSOR ASSY, REAR

BKN-85980-00-00

$114.99

16

BOLT, BUTTON HEAD

92017-06014-00

$4.29

17

CLAMP(4GL)

90464-10233-00

Unavailable

18

CLAMP

90464-14010-00

$3.40
