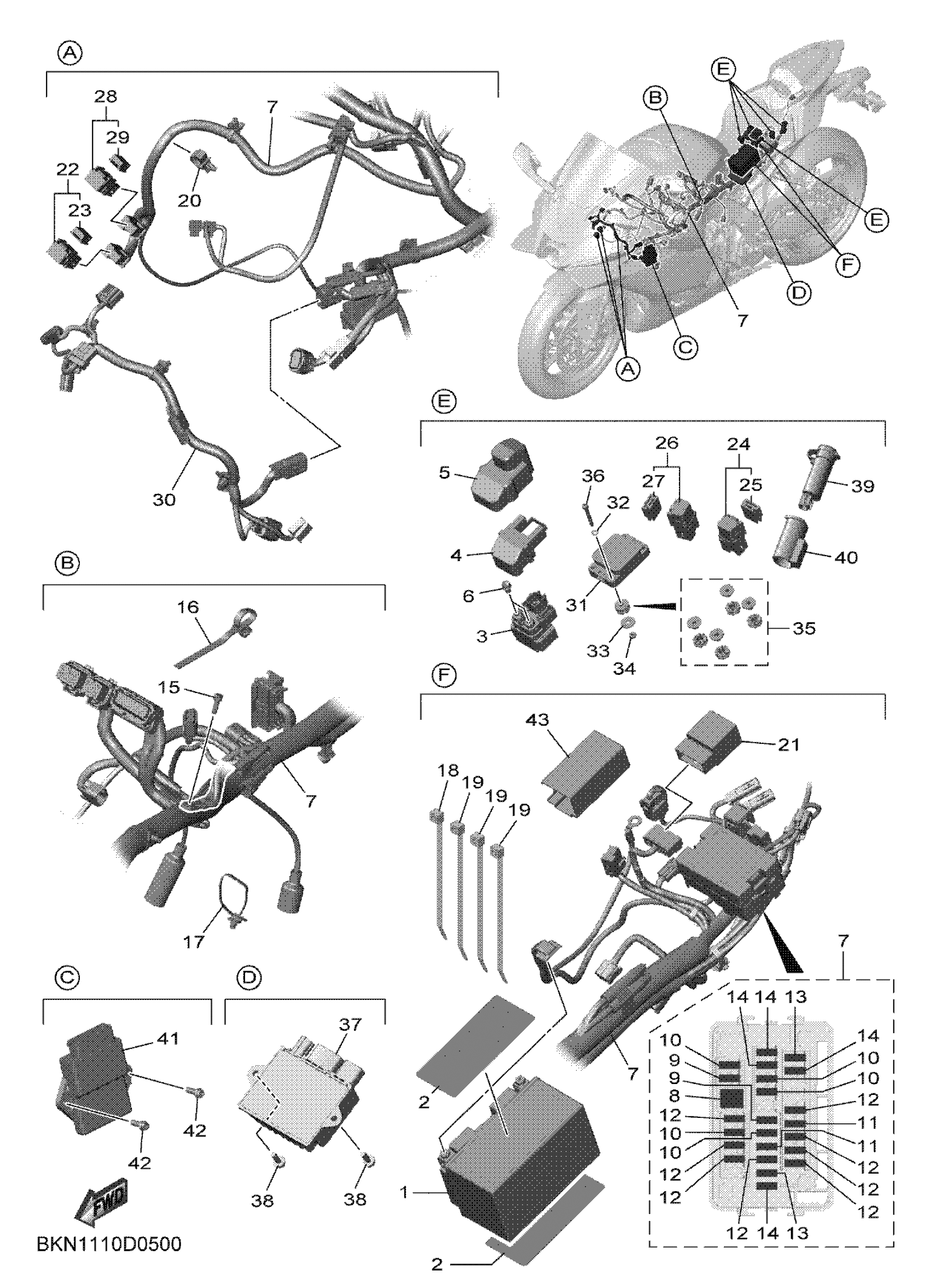

Yamaha YZFR9SW (YZFR9) BKN12 2025 ELECTRICAL 1 Diagram

BATTERY ASSY

5VY-82100-02-00

Unavailable

SEAL, BATTERY

BME-82118-00-00

$5.60

STARTER RELAY ASSY

B7N-81940-00-00

Unavailable

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

COVER

BME-81942-00-00

$10.49

BOLT FLANGE

90105-06230-00

Unavailable

WIRE HARNESS ASSY

BKN-82590-10-00

$877.99

FUSE

B7N-82151-B1-00

$15.99

FUSE (30A)

B7N-82151-60-00

$12.49

FUSE (15A)

B7N-82151-10-00

$12.49

FUSE (10A)

B7N-82151-30-00

Unavailable

FUSE (7.5A)

B7N-82151-00-00

$13.99

FUSE (5A)

BLG-82151-90-00

$12.49

FUSE (2A)

B7N-82151-80-00

$12.49

BOLT(3MA)

91312-06016-00

$5.60

CLAMP

90464-25009-00

Unavailable

CLAMP

90464-30010-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

BAND

3MA-82591-00-00

Unavailable

CLAMP

90464-16006-00

Unavailable

RELAY ASSY

5VK-81950-53-00

Unavailable

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

RELAY ASSY

1TP-81950-00-00

Unavailable

HOLDER,RELAY

5EA-81952-00-00

Unavailable

RELAY ASSY

1TP-81950-00-00

Unavailable

HOLDER,RELAY

5EA-81952-00-00

Unavailable

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

CORD, HEADLIGHT

BKN-84359-10-00

Unavailable

INERTIAL MEASURE,

BKN-8593A-00-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

Unavailable

WASHER PLATE

90201-04034-00

Unavailable

NUT, U (7LY)

95617-04100-00

Unavailable

GROMMET AND COLLAR

B7N-W8A8D-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

91317-04030-00

Unavailable

GENERATOR CONTROL

BME-81963-01-00

Unavailable

BOLT, FLANGE DEEP

95D37-06016-00

Unavailable

USB ASSY

BME-821E0-00-00

Unavailable

BAND

BKN-82591-00-00

Unavailable

BODY CONT,MODULE ASSY

BMG-85903-30-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-06435-00

Unavailable

COVER 1

1WS-8246B-00-00

Unavailable
