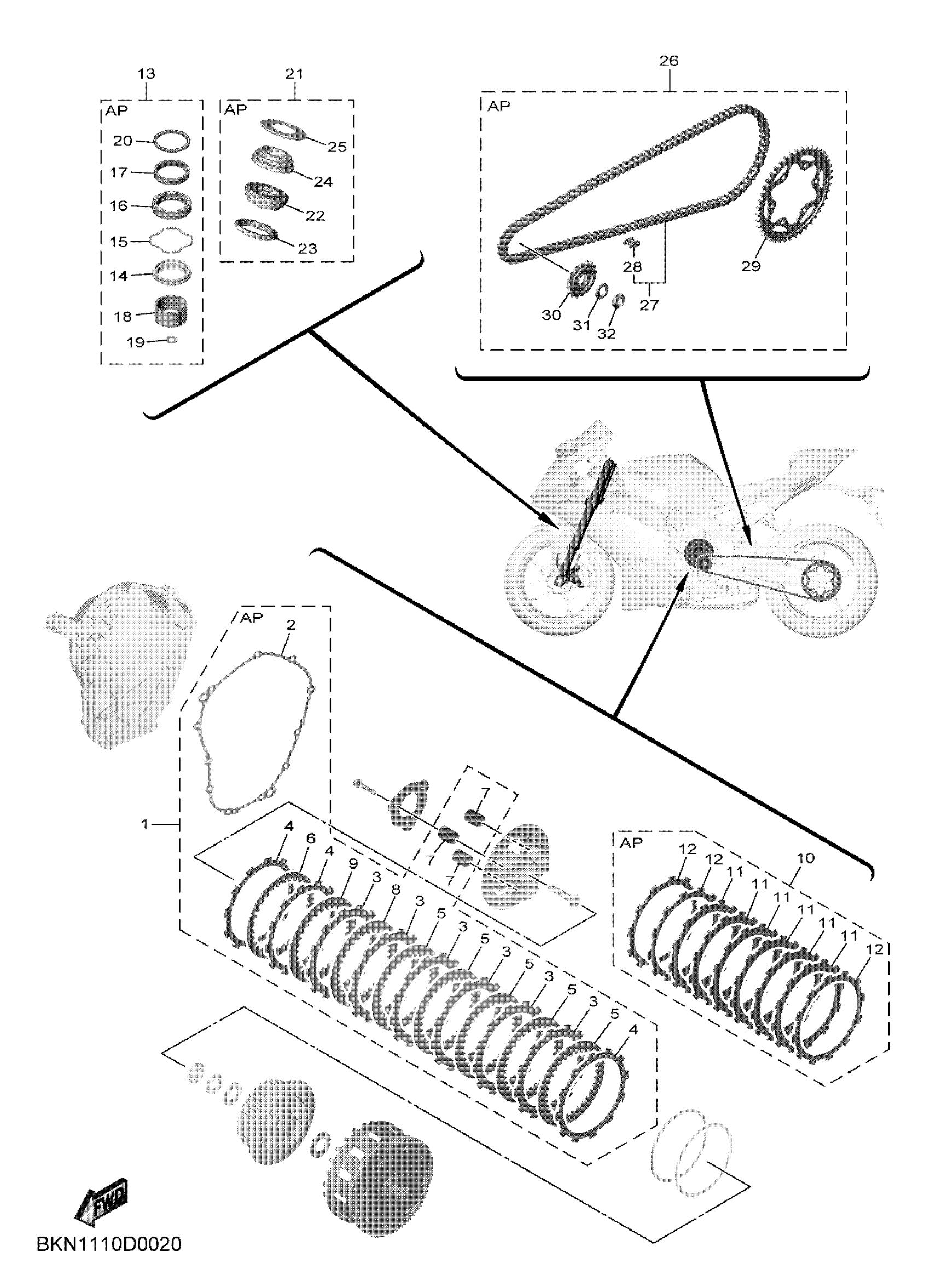

Yamaha YZFR9SW (YZFR9) BKN12 2025 2 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B7N-W001G-10-00

$233.99

2

GASKET, CRANKCASE COVER 2

B7N-15461-01-00

$14.99

3

PLATE, FRICTION

B7N-16321-00-00

$13.99

4

PLATE, FRICTION 2

B90-16331-00-00

$23.99

5

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

6

PLATE, CLUTCH 1

1TD-16324-00-00

$9.99

7

SPRING, COMPRESSIO

B7N-16173-00-00

$11.49

8

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

8

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

8

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

9

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

9

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

9

PLATE, CLUTCH 1

BR9-16324-10-00

$10.49

10

FRICTION PLATE KIT

B7N-W001M-00-00

$137.99

11

PLATE, FRICTION

B7N-16321-00-00

$13.99

12

PLATE, FRICTION 2

B90-16331-00-00

$23.99

13

FORK SEALS KIT

D45-W003B-00-00

Unavailable

14

SEAL, DUST

4PU-23144-00-00

Unavailable

15

RING, SNAP

4V4-23153-L0-00

Unavailable

16

OIL SEAL

4PU-23145-01-00

Unavailable

17

METAL, SLIDE 1

2CR-23125-00-00

Unavailable

18

PISTON, FRONT FORK

2CR-23171-01-00

Unavailable

19

GASKET

509-23158-L0-00

Unavailable

20

O-RING

39P-23147-00-00

Unavailable

21

STEERING BEARING KIT

BMP-W000B-00-00

Unavailable

22

BEARING

93399-99957-00

Unavailable

23

SEAL, STEERING

3FV-23462-00-00

Unavailable

24

BEARING(3FV)

93399-99932-00

Unavailable

25

COVER, BALL RACE 1

4XV-23415-01-00

Unavailable

26

CHAIN & SPROCKET K

BKN-W001A-10-00

Unavailable

27

SET, CHAIN

94A40-25110-00

Unavailable

28

JOINT, CHAIN (DID525HV3 ZJ)

94682-5202R-00

Unavailable

29

SPROCKET, DRIVEN (43T)

B67-25443-00-00

Unavailable

30

SPROCKET, DRIVE

2CR-17460-00-00

Unavailable

31

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

32

NUT

90179-22018-00

Unavailable
