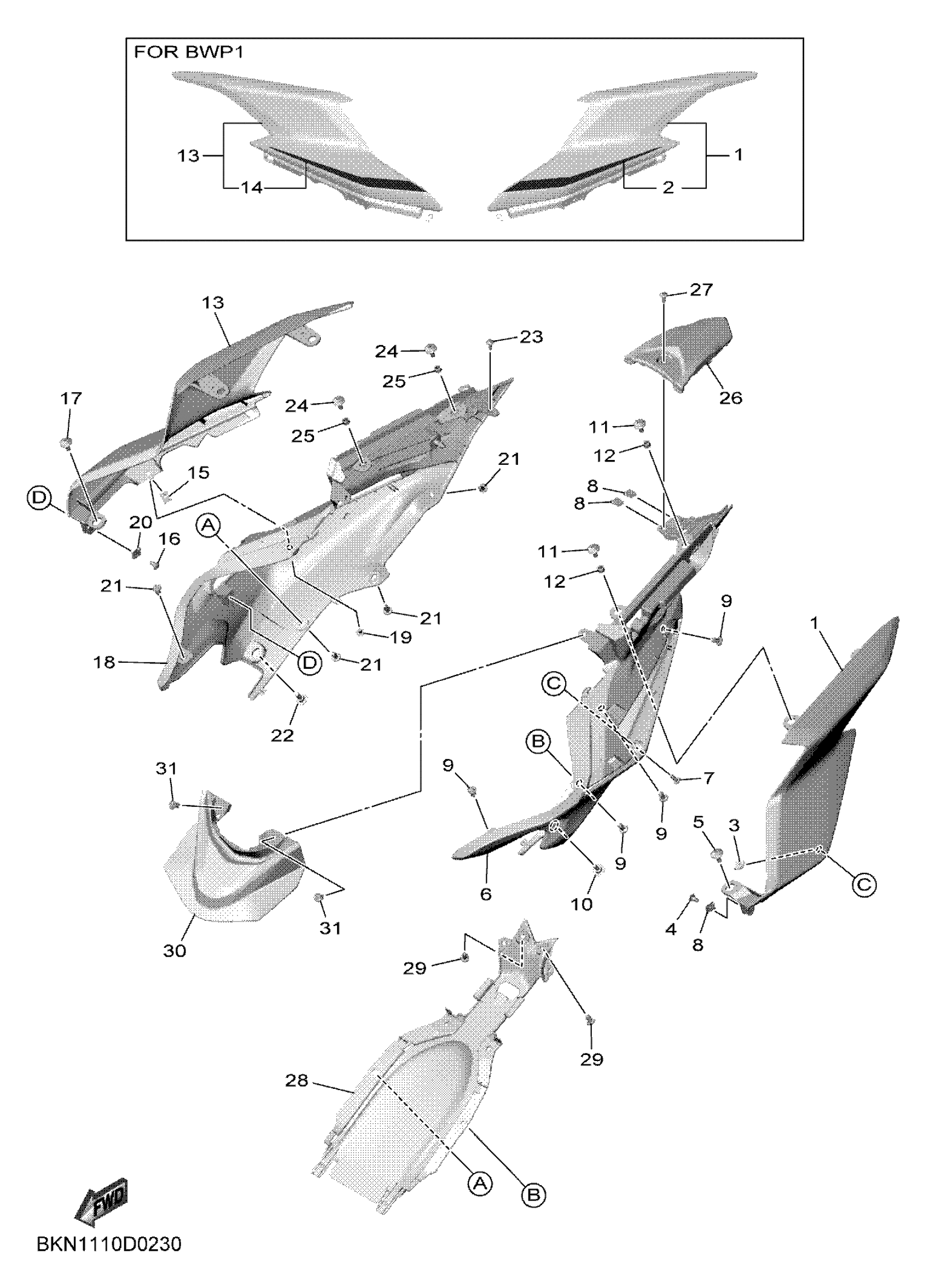

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BKN-21711-00-P3

Unavailable

3

NUT, SPRING(1YT)

90183-05042-00

$0.86

4

SCREW, TRUSS TAP.

97707-50012-00

$3.02

5

BOLT

90109-06253-00

$4.56

6

COVER, SIDE 3

BKN-21731-00-00

Unavailable

7

SCREW, TAPPING

90167-05079-00

$2.84

8

NUT, SPRING(1YT)

90183-05042-00

$0.86

9

RIVET

90269-06821-00

Unavailable

10

BOLT

90109-06334-00

$2.33

11

BOLT

90111-06061-00

$5.84

12

COLLAR

90387-06105-00

$6.20

13

COVER, SIDE 2

BKN-21721-00-P3

Unavailable

15

NUT, SPRING(1YT)

90183-05042-00

$0.86

16

SCREW, TRUSS TAP.

97707-50012-00

$3.02

17

BOLT

90109-06253-00

$4.56

18

COVER, SIDE 4

BKN-21741-00-00

Unavailable

19

SCREW, TAPPING

90167-05079-00

$2.84

20

NUT, SPRING(1YT)

90183-05042-00

$0.86

21

RIVET

90269-06821-00

Unavailable

22

BOLT

90109-06334-00

$2.33

23

SCREW, TAPPING

90167-05079-00

$2.84

24

BOLT

90111-06061-00

$5.84

25

COLLAR

90387-06105-00

$6.20

26

COVER, TAILLIGHT

BKN-2172X-00-00

Unavailable

27

SCREW, TAPPING

90167-05079-00

$2.84

28

COVER, REAR FENDER

BKN-21651-00-00

Unavailable

29

RIVET

90269-06821-00

Unavailable

30

COVER, SIDE 5

BKN-2171E-00-00

Unavailable

31

RIVET

90269-06821-00

Unavailable
