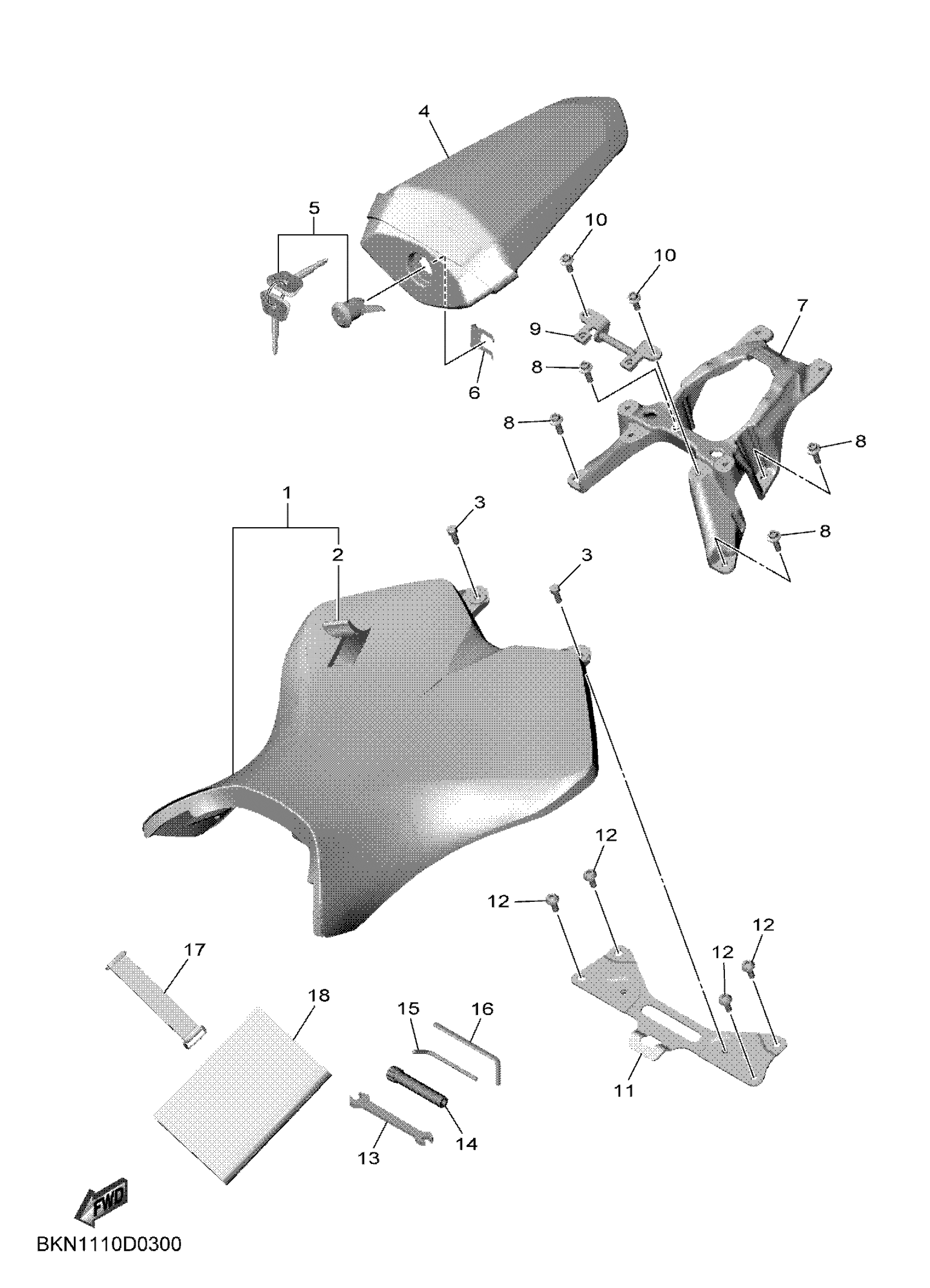

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

BKN-24710-00-00

Unavailable

2

COVER, SINGLE SEAT

BKN-24711-00-00

Unavailable

3

BOLT,SOCKET

91317-06016-00

$1.15

4

TANDEM SEAT ASSY

BEB-24750-00-00

$101.51

5

ROTOR SET

2CR-W2470-00-00

$55.57

6

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

7

STAY, SEAT

BKN-2471A-00-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15

9

BRACKET, SEAT LOCK

2CR-2478X-00-00

$16.29

10

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

$5.18

11

REINF. COMP.

BKN-21670-00-00

Unavailable

12

BOLT

90111-06029-00

$4.40

13

SPANNER 12-14

33M-28125-00-00

$7.82

14

BOX, SPARK PLUG

3D8-2814F-00-00

Unavailable

15

WRENCH, HEXAGON 8

23P-28164-00-00

$2.55

16

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

17

BAND,BATTERY

7H3-82131-00-00

Unavailable

18

POUCH

B7N-28186-00-00

Unavailable
