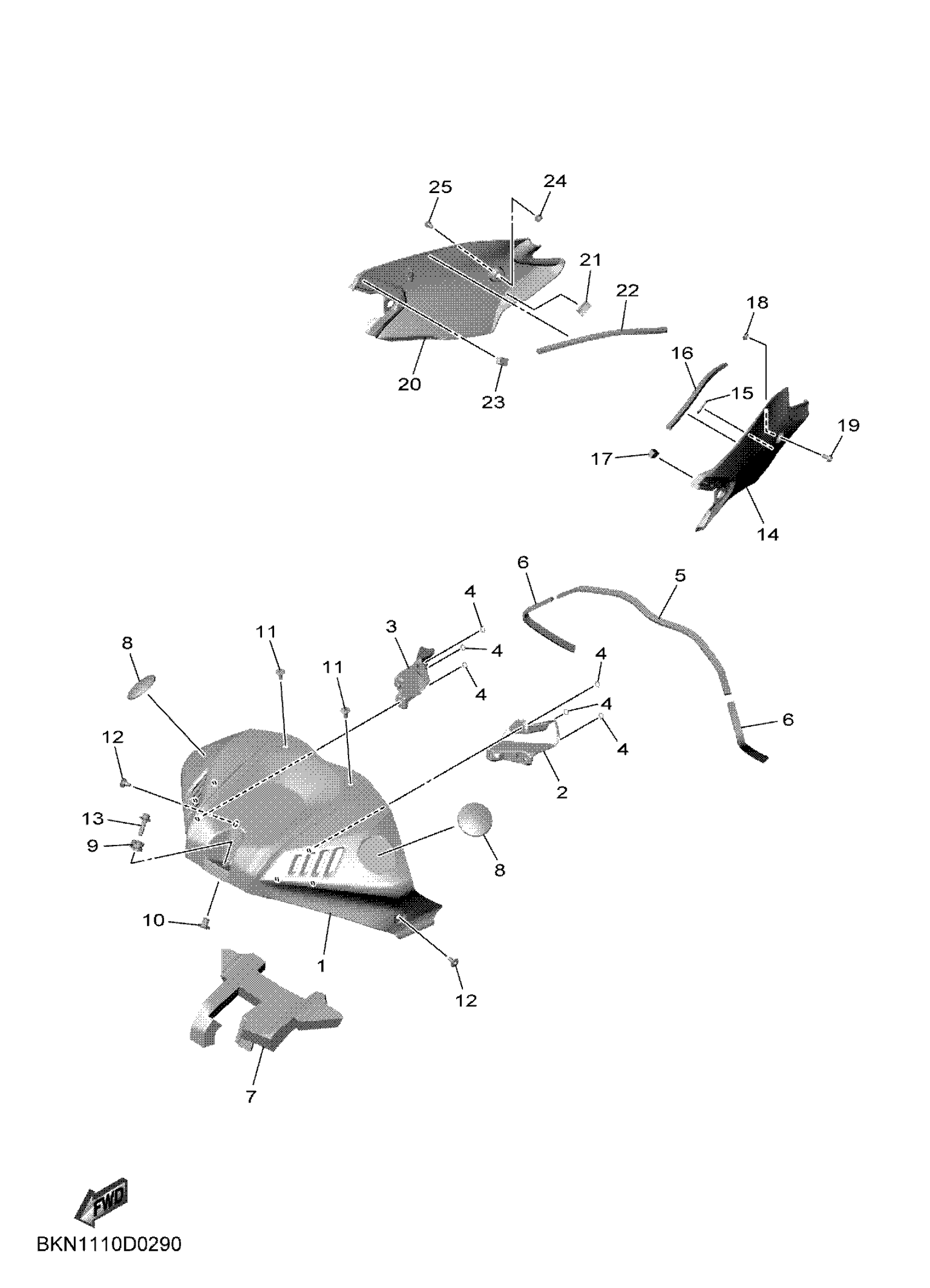

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, TOP

BKN-2171A-00-P3

$171.99

2

GRILL, AIR INTAKE 1

BKN-2837N-00-00

$12.49

3

GRILL, AIR INTAKE 2

BKN-2837R-00-00

$12.49

4

NUT, SPRING (6E5)

90183-05M02-00

$0.33

5

DAMPER, PLATE

90520-04024-00

$2.97

6

DAMPER, PLATE

90520-04023-00

$1.28

7

DAMPER, PLATE 2

BKN-2414J-00-00

$9.49

8

EMBLEM

1RC-2413B-02-00

$21.99

9

GROMMET

90480-12023-00

$8.49

10

COLLAR

90387-06203-00

$8.49

11

BOLT, HEXAGON SOCKET BUTTON

90111-05066-00

Unavailable

12

BOLT, HEXAGON SOCKET BUTTON

90111-05066-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

$8.49

14

MOLE, SIDE COVER 1

BKN-2171L-00-00

$21.99

15

DAMPER

BKN-21488-00-00

$2.02

16

DAMPER, PLATE

90520-07005-00

Unavailable

17

DAMPER, PLATE

90520-08009-00

Unavailable

18

COLLAR

90387-05035-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

20

MOLE, SIDE COVER 2

BKN-2171M-00-00

Unavailable

21

DAMPER

BKN-21488-00-00

$2.02

22

DAMPER, PLATE

90520-07005-00

Unavailable

23

DAMPER, PLATE

90520-08009-00

Unavailable

24

COLLAR

90387-05035-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable
