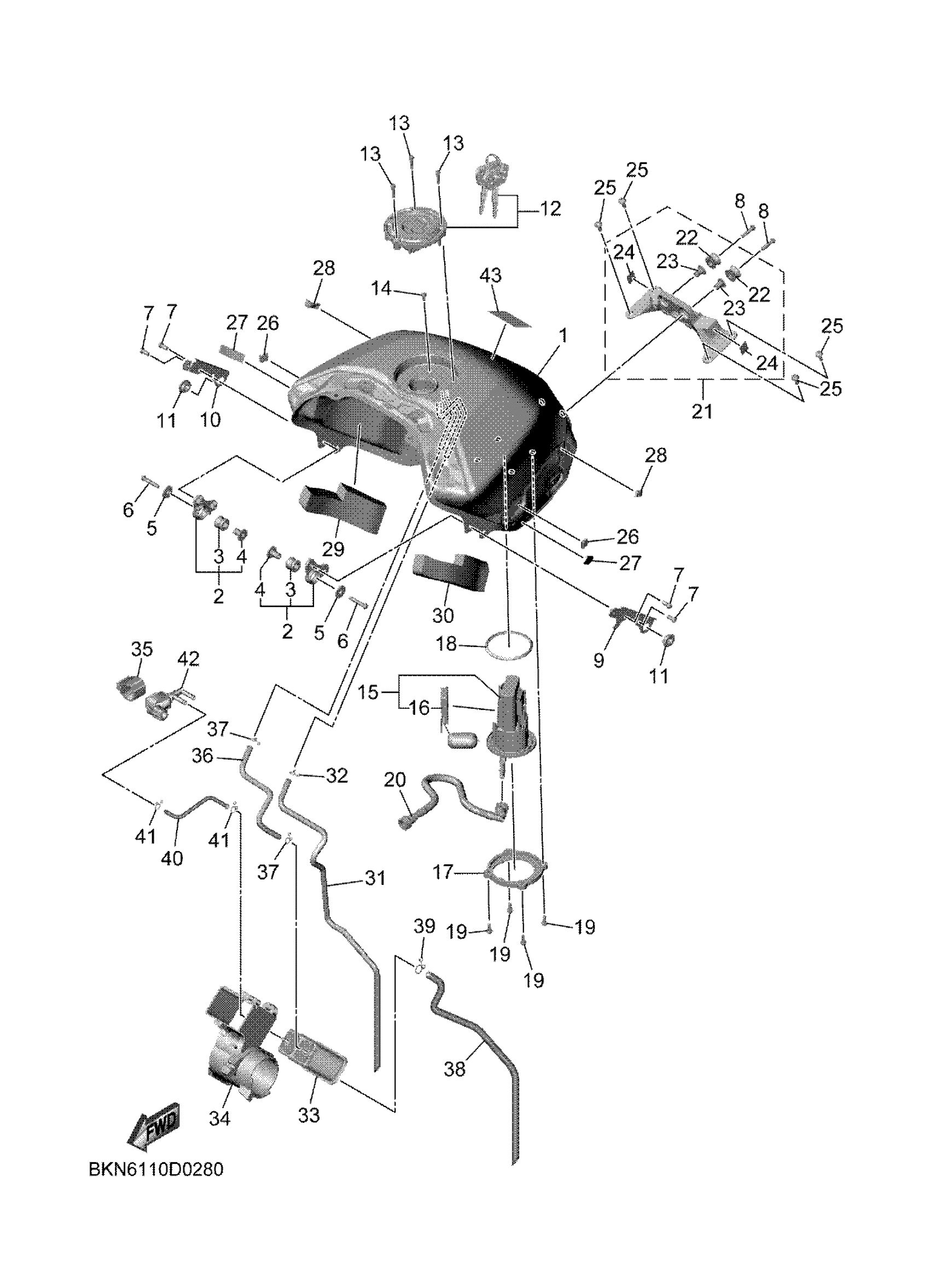

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 FUEL TANK Diagram
#
2
TANK BRACKET ASSY
23P-24104-01-00
Unavailable
16
SENDER UNIT ASSY,
BEA-85752-00-00
Unavailable
17
BRACKET, FUEL PUMP
1RC-24491-00-00
Unavailable
18
O-RING
1RC-24486-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
20
PIPE, FUEL 1
BKN-13971-00-00
Unavailable
21
TANK BRACKET ASSY 2
BKN-24105-00-00
Unavailable
22
GROMMET
3D7-24339-00-00
Unavailable
23
COLLAR
90387-06136-00
Unavailable
24
SEAL
5JW-23844-00-00
Unavailable
25
BOLT
90111-06029-00
Unavailable
26
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
27
DAMPER, LOCATING 1
3XV-21778-00-00
Unavailable
28
DAMPER 1
7TG-2214F-00-00
Unavailable
29
DAMPER, PLATE 4
BKN-2414N-00-00
Unavailable
30
DAMPER, PLATE 5
BKN-2414P-00-00
Unavailable
31
PIPE 5
BKN-24315-00-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
CANISTER ASSY
B7N-24170-00-00
Unavailable
34
DAMPER, LOCATING 3
BME-24183-00-00
Unavailable
35
BAND 1
BME-24398-00-00
Unavailable
36
PIPE 3
BKN-24313-10-00
Unavailable
37
CLIP
90467-090A2-00
Unavailable
38
PIPE 6
BME-24316-00-00
Unavailable
39
CLIP
90467-100A1-00
Unavailable
40
PIPE 7
BME-24317-10-00
Unavailable
41
CLIP
90467-090A2-00
Unavailable
42
SOLENOID VALVE ASS
B7N-86120-00-00
Unavailable
43
LABEL, CAUTION
4C8-2118K-01-00
Unavailable
