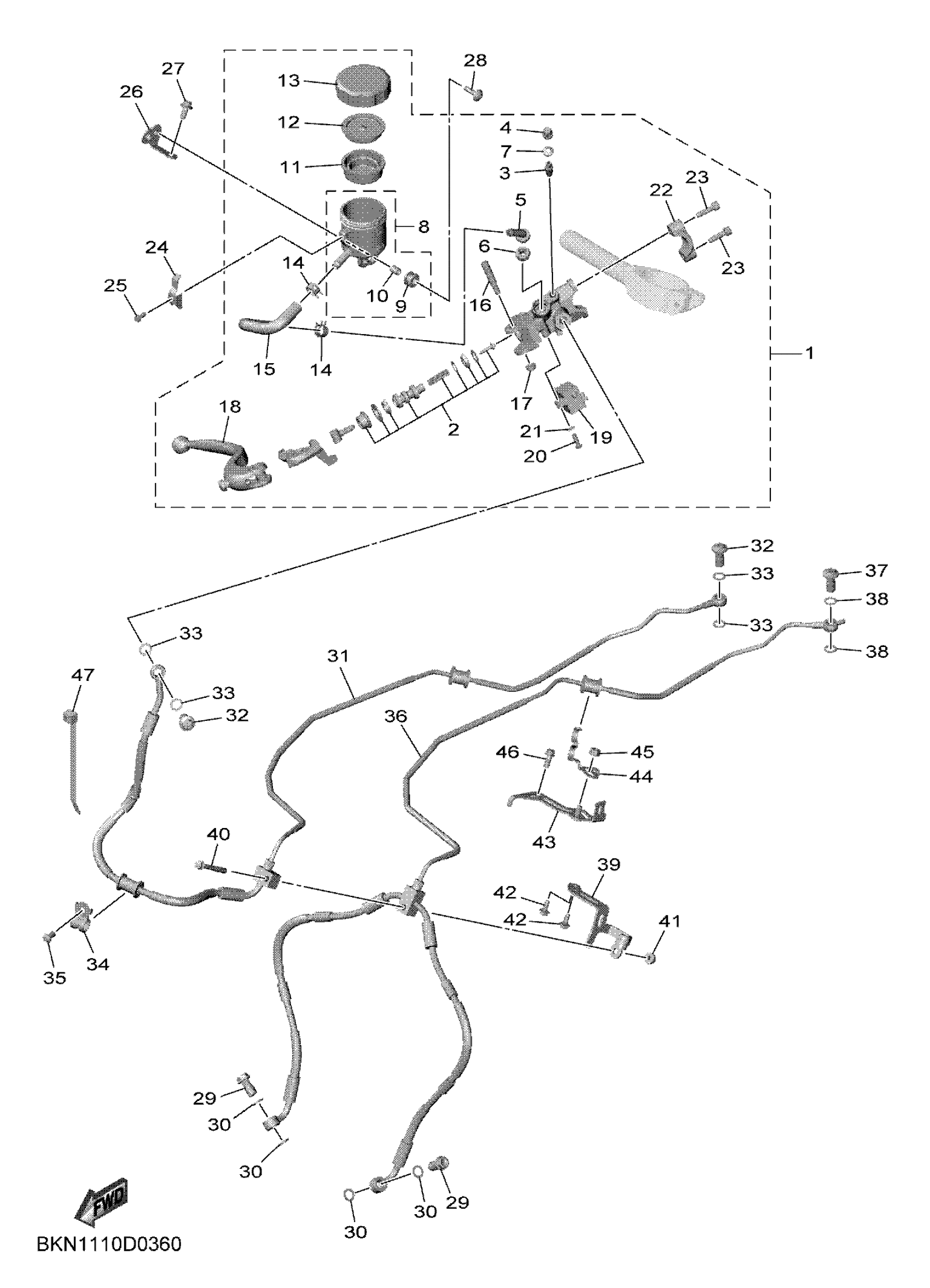

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

BKN-2583T-00-00

$329.99

2

MASTER CYLINDER SEAL KIT, FR.

B5Y-2580B-00-00

$49.99

3

SCREW, BLEED

3YK-25824-00-00

$8.99

4

CAP

3YK-25825-00-00

Unavailable

5

JOINT

B5Y-2582A-00-00

$4.72

6

O-RING

4BP-2585F-01-00

Unavailable

7

SEAL 1

5VY-25975-00-00

$2.29

8

TANK, RESERVOIR

BAM-25894-00-00

$63.99

9

GROMMET

5SL-26326-00-00

Unavailable

10

COLLAR

5SL-26277-00-00

Unavailable

11

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

12

BUSH,DIAPHRAGM

5VY-25855-00-00

$5.49

13

CAP, RESERVOIR

5VY-25852-00-00

$18.49

14

CLIP

90467-120A3-00

$7.49

15

HOSE, RESERVOIR

BKN-25895-00-00

$10.49

16

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

17

NUT, SELF-LOCKING

95617-06100-00

Unavailable

18

LEVER SET

BEB-W2616-00-00

Unavailable

19

FRONT STOP SWITCH

BME-83980-00-00

Unavailable

20

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

21

WASHER, PLAIN (646)

92990-04600-00

Unavailable

22

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

HOLDER

5VY-2589G-00-00

Unavailable

25

SCREW

5VY-2589H-00-00

Unavailable

26

STAY

BKN-26292-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06122-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

29

BOLT, OIL 1

BMM-25877-00-00

Unavailable

30

GASKET

90430-10005-00

Unavailable

31

BRAKE HOSE ASSY

BKN-2584A-00-00

Unavailable

32

BOLT, UNION

90401-10172-00

Unavailable

33

GASKET

90430-10005-00

Unavailable

34

CLAMP

90461-10005-00

Unavailable

35

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

36

HOSE, BRAKE

BKN-2584B-00-00

Unavailable

37

BOLT, UNION

90401-10172-00

Unavailable

38

GASKET

90430-10005-00

Unavailable

39

BRACKET, REFLECTOR 1

BKN-85132-00-00

Unavailable

40

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

41

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

42

BOLT, WASHER BASED

90105-05002-00

Unavailable

43

BRACKET

BKN-2612E-00-00

Unavailable

44

BRACKET 2

BKN-2175U-00-00

Unavailable

45

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

46

BOLT, FLANGE DEEP

95E37-06014-00

Unavailable

47

BAND

3MA-82591-00-00

Unavailable
