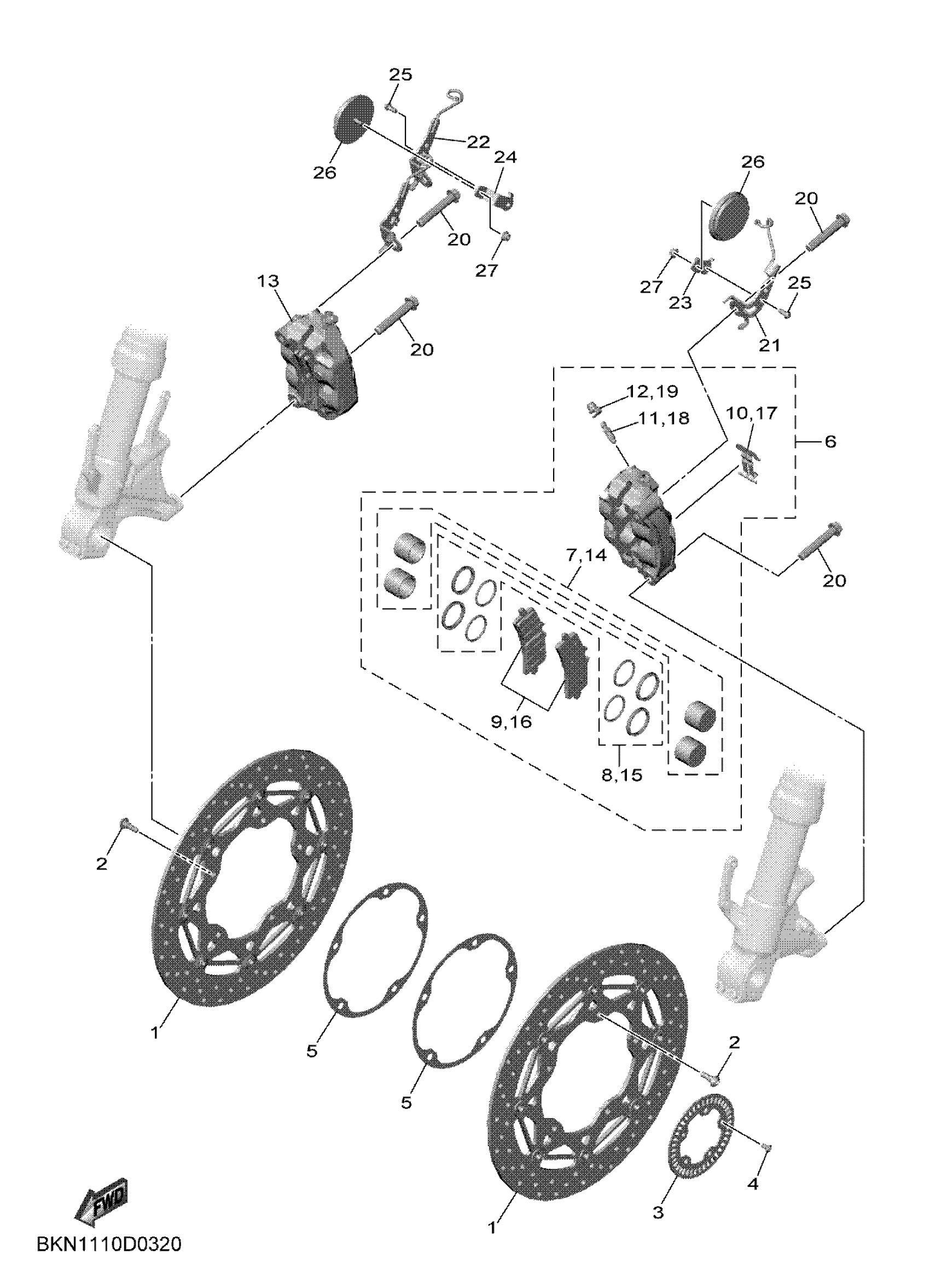

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

BKN-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

4

SCREW

90149-05030-00

$1.99

5

PLATE, FITTING

BKN-2518A-00-00

Unavailable

6

CALIPER ASSY (LEFT)

BMM-2580T-00-00

$524.99

7

PISTON ASSY, CALIPER

BMM-25802-00-00

$42.55

8

CALIPER SEAL KIT

BMM-25803-00-00

$34.41

9

BRAKE PAD KIT

BMM-W0045-00-00

$84.52

10

PIN, PAD

BMM-25924-00-00

$7.65

11

SCREW, BLEED

3YK-25824-00-00

$7.03

12

CAP

BMM-25825-00-00

$5.12

13

CALIPER ASSY (RIGHT)

BMM-2580U-00-00

$526.99

14

PISTON ASSY, CALIPER

BMM-25802-00-00

$42.55

15

CALIPER SEAL KIT

BMM-25803-00-00

$34.41

16

BRAKE PAD KIT

BMM-W0045-00-00

$84.52

17

PIN, PAD

BMM-25924-00-00

$7.65

18

SCREW, BLEED

3YK-25824-00-00

$7.03

19

CAP

BMM-25825-00-00

$5.12

20

BOLT, FLANGE

90105-10497-00

Unavailable

21

BRACKET, REFLECTOR 1

BKN-85112-00-00

Unavailable

22

BRACKET, REFLECTOR 2

BKN-85122-00-00

Unavailable

23

BRACKET 1

BKN-84781-00-00

Unavailable

24

BRACKET 2

BKN-84782-00-00

Unavailable

25

BOLT, BUTTON

92017-05012-00

Unavailable

26

REFLECTOR, REAR 1

59C-85131-00-00

Unavailable

27

NUT, FLANGE

95702-05500-00

Unavailable
