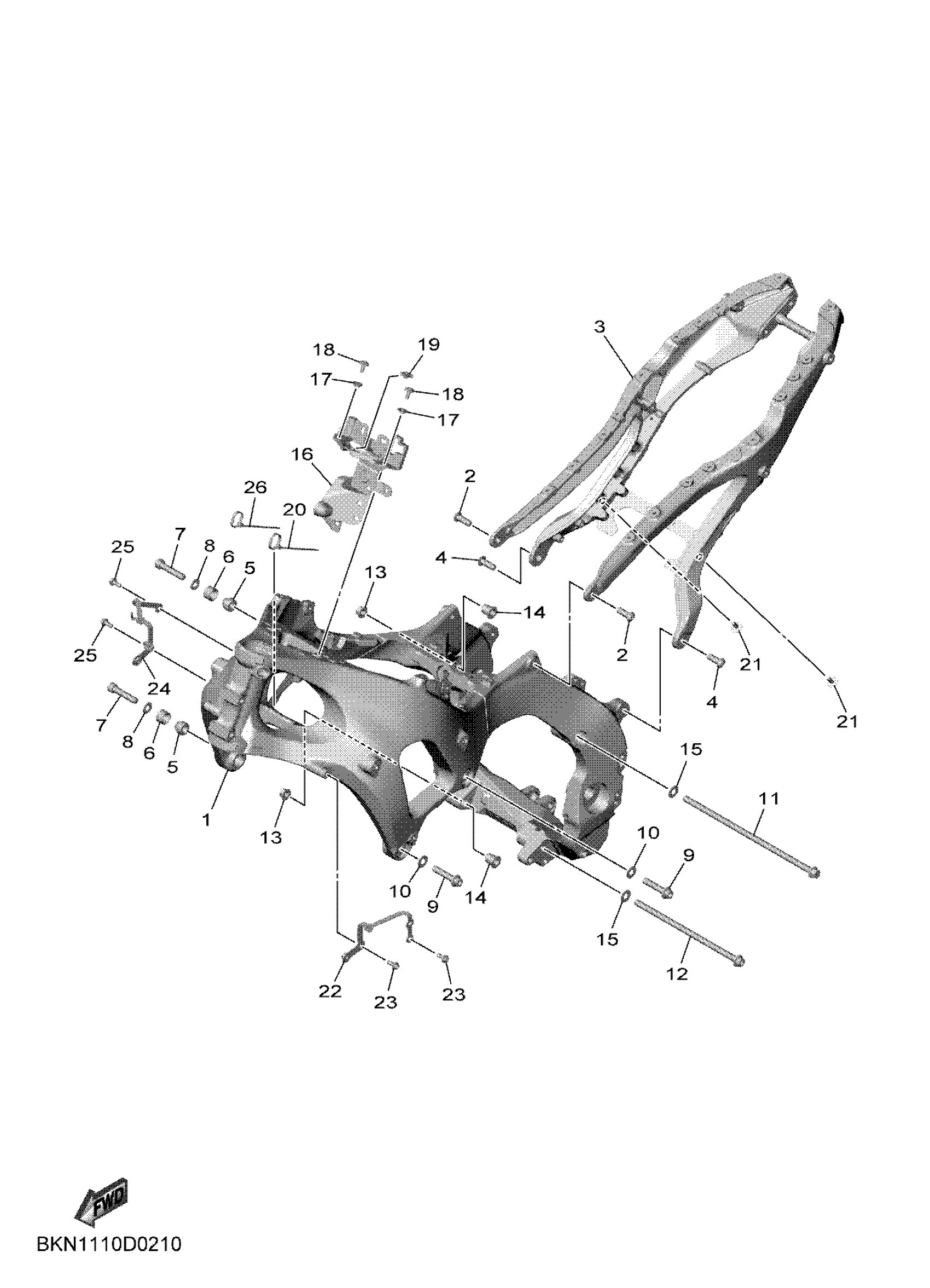

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 FRAME Diagram

#

Description
Price

1

FRAME SUB COMP.

BKN-2111B-09-00

Unavailable

2

SCREW

90149-10044-00

$8.49

3

REAR FRAME COMP

BKN-21190-09-00

$1,144.99

4

SCREW

90149-10044-00

$8.49

5

BOSS, ENGINE MOUNT

2C0-21414-00-00

$28.99

6

BOSS, ENGINE MOUNT

5VY-21424-00-00

$30.99

7

BOLT,SOCKET

91314-10050-00

$5.60

8

WASHER, PLATE

90201-10033-00

$8.49

9

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

10

WASHER, PLATE

90201-10075-00

$3.28

11

BOLT, FLANGE

90105-10301-00

$15.99

12

BOLT, HEXAGON SOCKET HEAD

90110-10064-00

Unavailable

13

NUT(4KG)

90179-10658-00

$9.49

14

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

15

WASHER, PLATE

90201-10075-00

$3.28

16

CASE 2

BKN-82164-00-00

Unavailable

17

COLLAR (3L1)

90387-07717-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

19

NUT, SPRING

90183-061A4-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

RIVET

90269-07005-00

Unavailable

22

BRACKET, 1

BKN-2138K-01-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

Unavailable

24

BRACKET 2

BKN-2138L-01-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable
