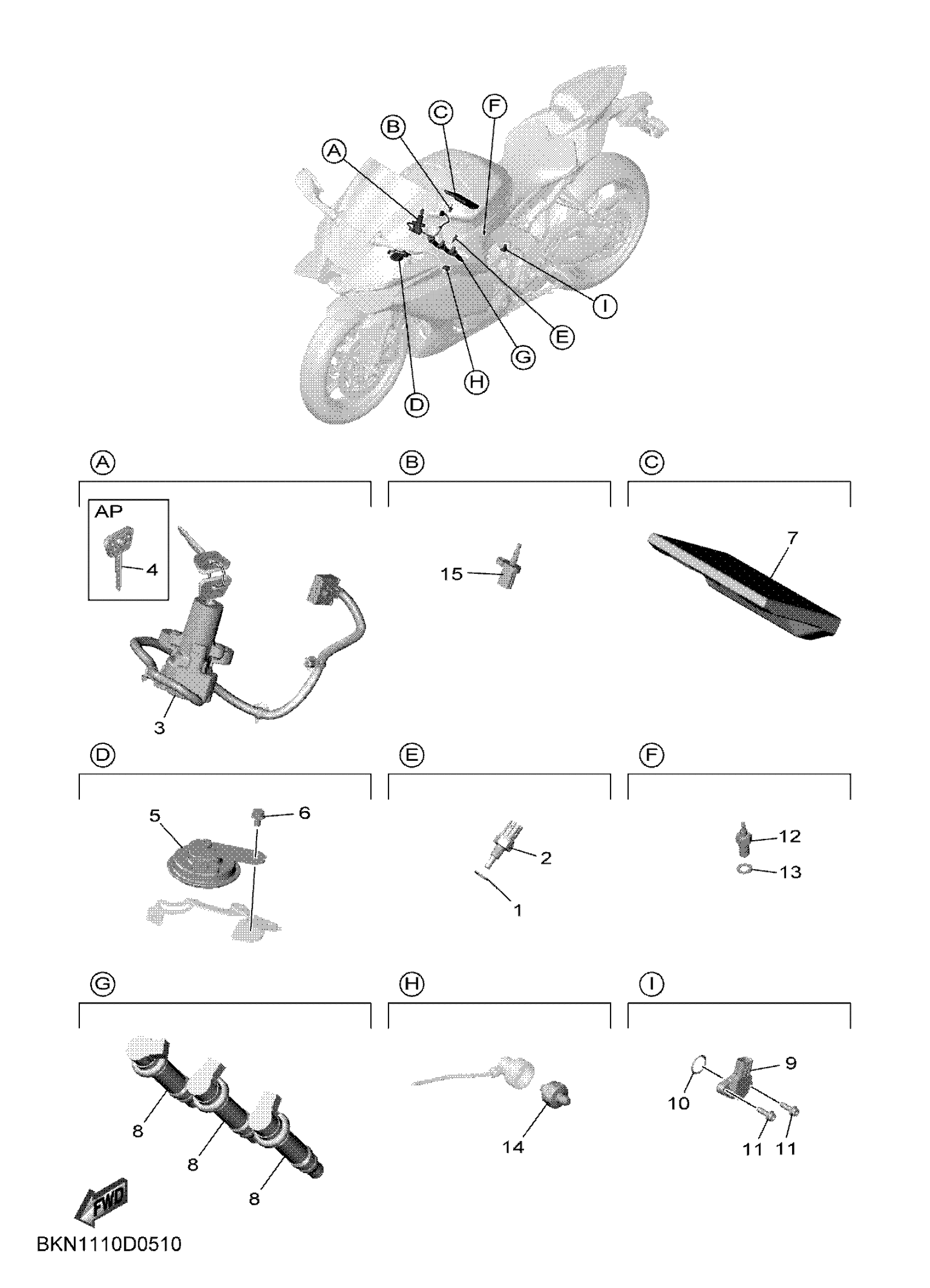

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 ELECTRICAL 2 Diagram

GASKET

90430-10004-00

$5.55

THERMO UNIT

52B-H3591-00-00

Unavailable

MAIN SWITCH STEERING LOCK

BKN-82501-10-00

Unavailable

BLANK KEY

4BH-82511-09-00

$22.81

HORN

BEA-83371-00-00

Unavailable

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.58

ENGINE CONTROL UNIT ASSY

BKN-8591A-60-00

Unavailable

IGNITION COIL ASSY

BME-82310-00-00

$85.21

SENSOR, GEAR POSITION

2CR-85899-10-00

$104.08

O-RING

93210-17008-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$5.86

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$49.24

GASKET (1KH,1.0T)

90430-10148-00

$4.44

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$57.05

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$28.08
