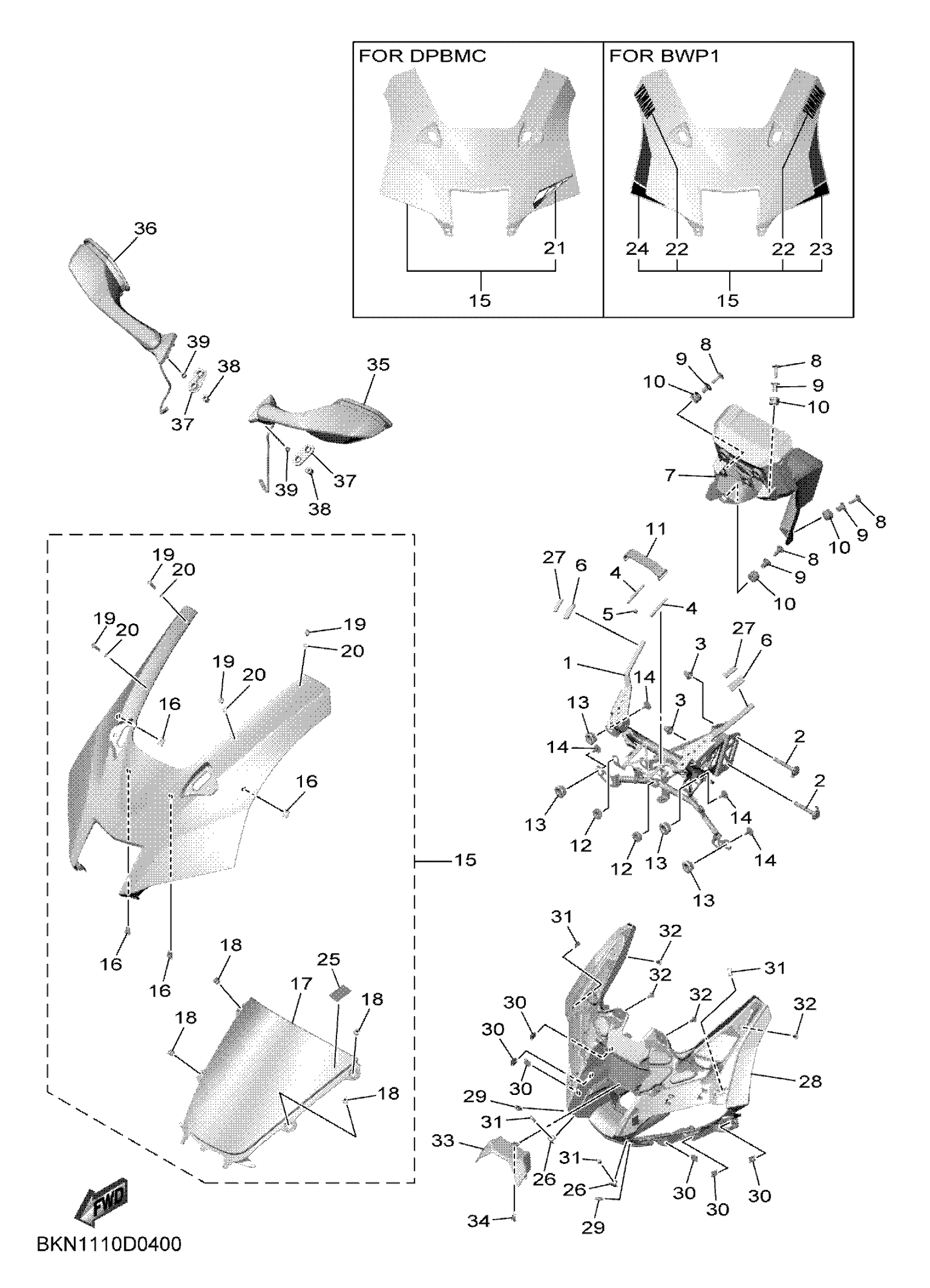

Yamaha YZFR9SCW (YZFR9 CA) BKN62 2025 COWLING 1 Diagram

#

Description
Price

1

STAY 1

BKN-28356-00-00

$289.99

2

PLATE

BKN-28336-00-00

$12.49

3

NUT, CROWN (4G0)

90176-08026-00

$14.99

4

DAMPER 4

2C0-28247-00-00

$4.47

5

DAMPER 3

4D9-28425-00-00

$0.57

6

HOOK, SIDE COVER 1

BKN-2411G-00-00

$3.98

7

COVER

BKN-28365-00-00

$36.99

8

BOLT,HEX. SOCKET BUTTON

90111-06117-00

$2.17

9

COLLAR

90387-06136-00

$7.49

10

GROMMET 839774310000

90480-14023-00

$7.49

11

BAND,BATTERY

7H3-82131-00-00

$17.49

12

GROMMET(4FU)

90480-13567-00

$4.99

13

GROMMET

90480-14039-00

$7.49

14

SCREW, TAPPING

90167-05020-00

$3.28

15

BODY, FRONT UPPER

BKN-Y283G-10-P1

$354.99

16

NUT, SPRING(1YT)

90183-05042-00

Unavailable

17

WINDSHIELD

BKN-28381-00-00

Unavailable

18

NUT(1KT)

90179-05523-00

Unavailable

19

SCREW, ROUND HEAD(1UX)

90150-05024-00

Unavailable

20

. WASHER, PLATE

90202-05088-00

Unavailable

25

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable

26

CLIP, COWLING

BKN-28334-00-00

Unavailable

27

HOOK,SIDE COVER 3

BKN-2411N-00-00

Unavailable

28

BODY, FRONT UPPER 2

BKN-2835H-00-00

Unavailable

29

NUT, SPRING(1YT)

90183-05042-00

Unavailable

30

NUT, SPRING(1YT)

90183-05042-00

Unavailable

31

CLAMP

90464-04005-00

Unavailable

32

SCREW, TAPPING

90167-05079-00

Unavailable

33

PLATE, FRONT

BKN-28361-00-P0

Unavailable

34

CLAMP

90464-04005-00

Unavailable

35

REAR VIEW MIRROR ASSY (LEFT)

B3L-26280-11-00

Unavailable

36

REAR VIEW MIRROR ASSY (RIGHT)

B3L-26290-11-00

Unavailable

37

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

38

NUT (1AE)

90179-06500-00

Unavailable

39

COLLAR(J45)

90387-064T3-00

Unavailable
