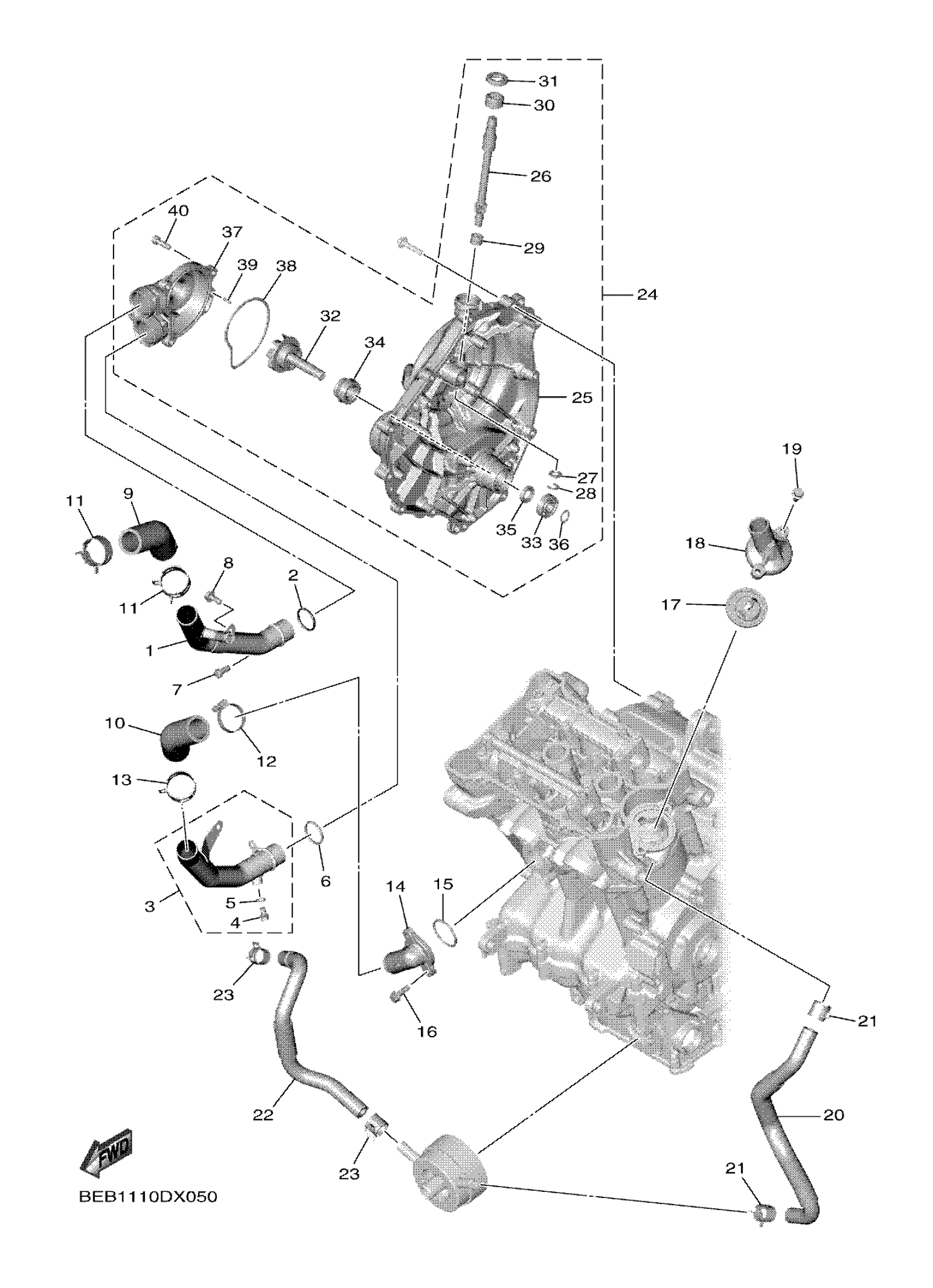

Yamaha YZFR7SL (YZFR7) BVAK 2025 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

1WS-12481-01-00

$76.99

2

O-RING

93210-235A1-00

$7.49

3

PIPE 2

1WS-12482-01-00

$85.99

4

BOLT, FLANGE

95022-06010-00

$5.60

5

GASKET 256113960000

90430-06014-00

Unavailable

6

O-RING

93210-235A1-00

$7.49

7

BOLT,SOCKET HEAD

91314-06014-00

$4.15

8

BOLT, HEXAGON SOCKET HEAD

90110-06152-00

$8.49

9

HOSE 1

1WS-12576-00-00

$9.99

10

HOSE 1

1WS-12576-00-00

$9.99

11

CLIP

90467-290A0-00

Unavailable

12

HOSE CLAMP ASSY

90450-35001-00

$5.60

13

CLIP

90467-290A0-00

Unavailable

14

JOINT 1

1WS-12469-10-00

Unavailable

15

O-RING

93210-33006-00

$4.72

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

THERMOSTAT ASSY

1WS-12410-01-00

Unavailable

18

COVER, THERMOSTAT

1WS-12413-10-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

HOSE 5

1WS-12588-01-00

Unavailable

21

CLIP

90467-170A6-00

Unavailable

22

HOSE 6

1WS-12589-01-00

Unavailable

23

CLIP

90467-170A6-00

Unavailable

24

WATER PUMP ASSY

1WS-12420-10-00

Unavailable

25

COVER, CRANKCASE 2

1WS-15421-10-00

Unavailable

26

AXLE, PUSH LEVER

2D1-16382-00-00

Unavailable

27

WASHER(6TA)

92907-08600-00

Unavailable

28

CIRCLIP

99080-07600-00

Unavailable

29

BEARING

93317-11096-00

Unavailable

30

BEARING

93315-21570-00

Unavailable

31

OIL SEAL (3X3)

93102-15212-00

Unavailable

32

IMPELLER SHAFT ASS

1WS-12450-00-00

Unavailable

33

BRG,R-B 6001 28MM 28G KY

93306-00105-00

Unavailable

34

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

35

SEAL

2CR-13338-00-00

Unavailable

36

CIRCLIP(10Y)

99009-12400-00

Unavailable

37

COVER, HOUSING

1WS-12422-10-00

Unavailable

38

O-RING

1WS-12439-00-00

Unavailable

39

PIN,DOWEL (603)

93603-12007-00

Unavailable

40

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
