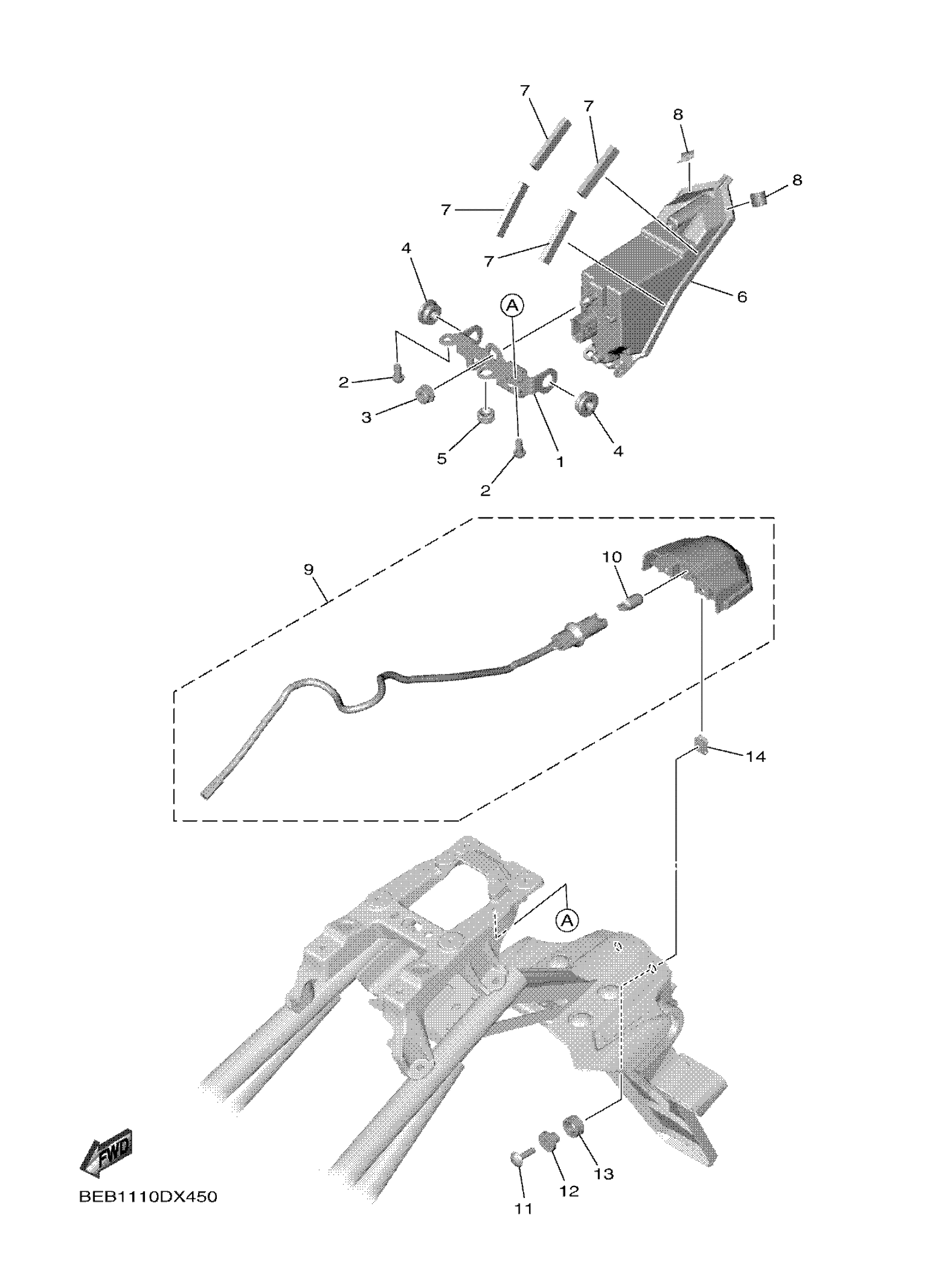

Yamaha YZFR7SL (YZFR7) BVAK 2025 TAILLIGHT Diagram

#

Description
Price

1

BRACKET, TAILLIGHT

BEB-2117E-00-00

$12.65

2

BOLT, BUTTON HEAD

92012-06012-00

$2.33

3

GROMMET

90480-10003-00

$5.86

4

GROMMET(4FU)

90480-13567-00

$3.62

5

GROMMET (17J)

90480-10334-00

$6.43

6

TAILLIGHT UNIT ASSY

2CR-84710-01-00

$161.87

7

PAD

JT4-48214-00-00

$1.10

8

SEAL

5JW-23844-00-00

$7.03

9

LICENCE LIGHT UNIT

B5U-84745-00-00

$46.32

10

BULB (12V-5W)

2DP-H4347-00-00

$6.33

11

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$6.34

12

COLLAR

90387-05044-00

$11.71

13

GROMMET

90480-14017-00

$4.14

14

NUT, SPRING

90183-050A6-00

$2.21
