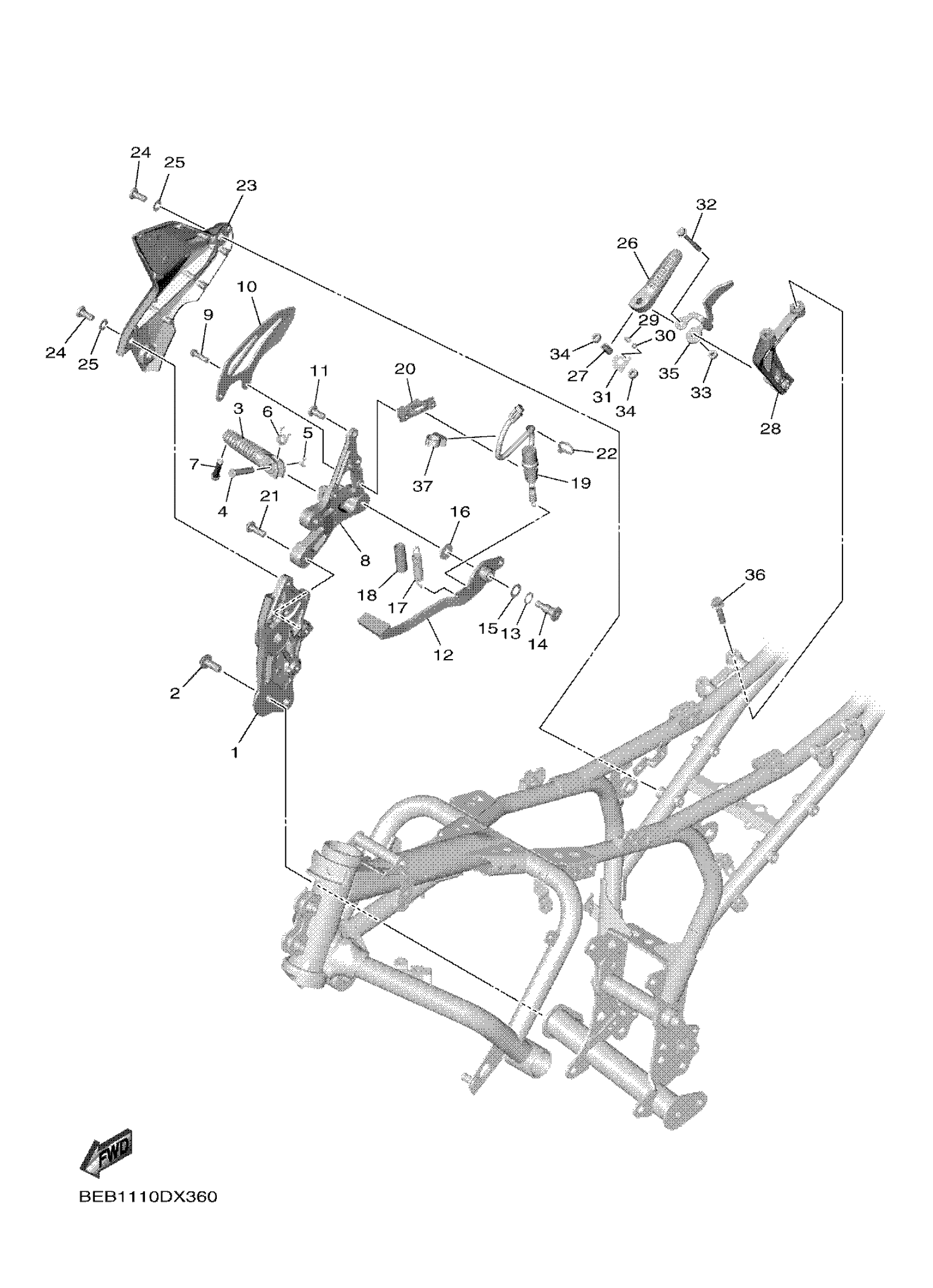

Yamaha YZFR7SL (YZFR7) BVAK 2025 STAND & FOOTREST 2 Diagram

#

Description
Price

1

BRACKET,ADAPTER 2

BEB-274A4-00-00

Unavailable

2

BOLT

90111-10006-00

$5.49

3

FOOTREST 4

B7N-27461-00-00

$17.99

4

PIN, CLEVIS

91702-08040-00

$4.35

5

PIN, COTTER

91490-25020-00

$3.19

6

SPRING, TORSION

90508-18135-00

$10.49

7

BOLT

90109-08269-00

$5.60

8

BRACKET 3

BEB-27443-00-00

Unavailable

9

BOLT, BUTTON HEAD

92012-06025-00

$3.13

10

PLATE 2

BEB-27446-00-00

$41.99

11

BOLT,HEX. SOCKET BUTTON

90111-08038-00

$10.49

12

PEDAL, BRAKE

BEB-27211-00-00

$55.99

13

WASHER, WAVE (17W)

90206-12074-00

$9.49

14

BOLT

4BP-27434-11-00

$3.17

15

WASHER, PLATE

90201-12051-00

$7.49

16

WASHER, PLATE

90201-08053-00

Unavailable

17

SPRING, TENSION

90506-18022-00

Unavailable

18

HOSE

90446-15386-00

Unavailable

19

STOP SWITCH ASSY

BEB-82530-01-00

Unavailable

20

STAY, STOP SWITCH

BEB-2144G-00-00

Unavailable

21

BOLT

90109-084F7-00

Unavailable

22

CLAMP

90464-16061-00

Unavailable

23

COVER 2

BEB-27463-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-08020-00

Unavailable

25

WASHER PLATE 141181390000

90201-08085-00

Unavailable

26

FOOTREST, REAR 2

B3L-27441-00-00

Unavailable

27

COLLAR (8H9)

90387-06697-00

Unavailable

28

BRACKET 5

2CR-2742L-01-00

Unavailable

29

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

30

BALL

93501-04011-00

Unavailable

31

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

32

BOLT, FLANGE

95817-06055-00

Unavailable

33

NUT,SELF-LOCKING

95607-06200-00

Unavailable

34

COLLAR

90387-06358-00

Unavailable

35

STOPPER

BEB-27314-00-00

Unavailable

36

BOLT, FLANGE

95817-08035-00

Unavailable

37

CLAMP

90464-14010-00

Unavailable
