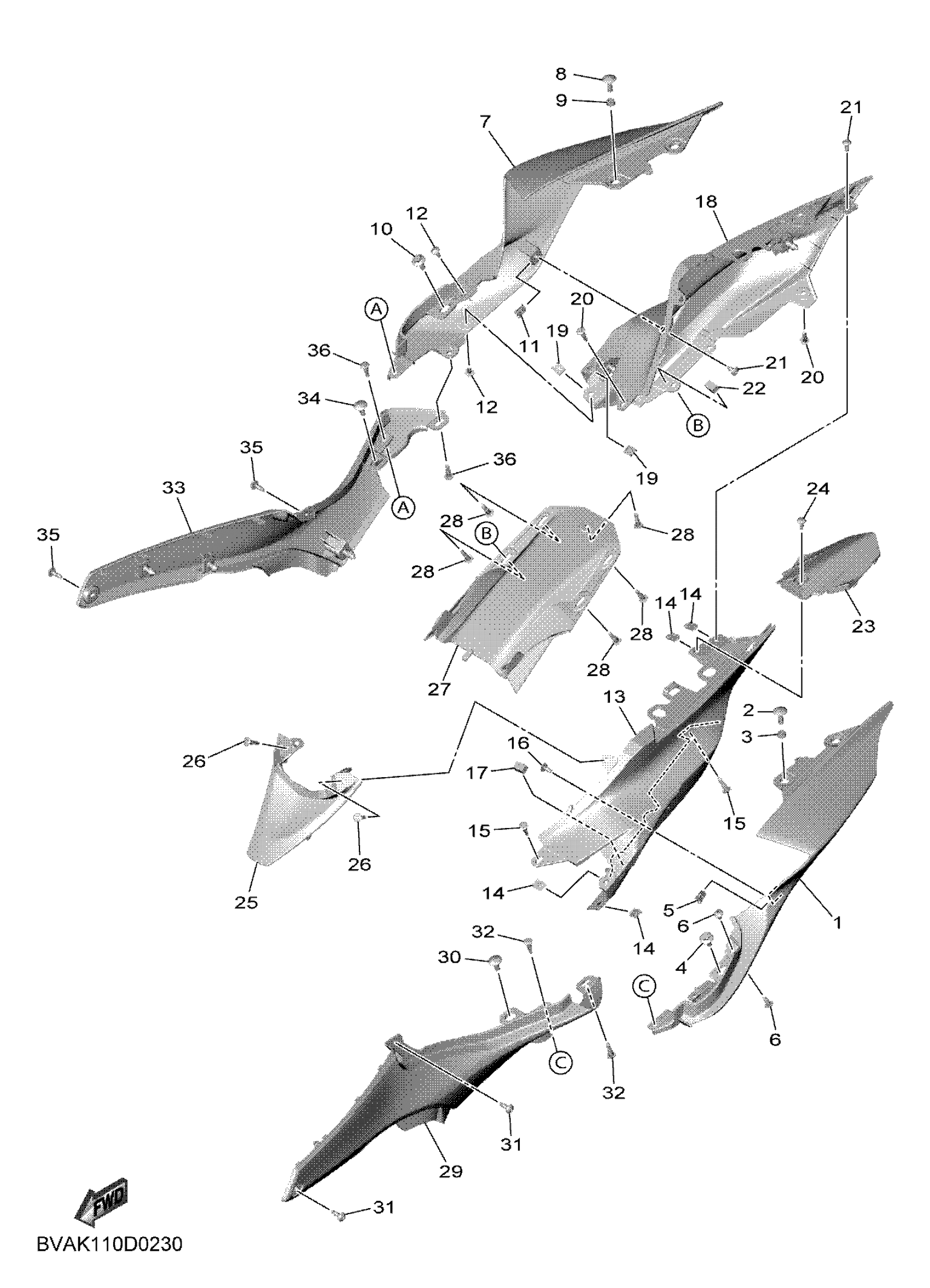

Yamaha YZFR7SL (YZFR7) BVAK 2025 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BEB-21711-00-P2

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06129-00

$7.49

3

COLLAR(4AJ)

90387-065X6-00

Unavailable

4

BOLT

90109-06043-00

Unavailable

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

SCREW, TAPPING

90167-05079-00

$4.14

7

COVER, SIDE 2

BEB-21721-00-P2

$106.99

8

BOLT,HEX. SOCKET BUTTON

90111-06129-00

$7.49

9

COLLAR(4AJ)

90387-065X6-00

Unavailable

10

BOLT

90109-06043-00

Unavailable

11

NUT, SPRING(1YT)

90183-05042-00

$5.60

12

SCREW, TAPPING

90167-05079-00

$4.14

13

COVER, SIDE 3

BEB-21731-00-00

$24.99

14

NUT, SPRING(1YT)

90183-05042-00

$5.60

15

RIVET

90269-06008-00

$9.49

16

SCREW, TAPPING

90167-05079-00

$4.14

17

DAMPER, PLATE

90520-08009-00

Unavailable

18

COVER, SIDE 4

BEB-21741-00-00

Unavailable

19

NUT, SPRING(1YT)

90183-05042-00

$5.60

20

RIVET

90269-06008-00

$9.49

21

SCREW, TAPPING

90167-05079-00

$4.14

22

DAMPER, PLATE

90520-08009-00

Unavailable

23

COVER, TAILLIGHT

BEB-2172X-00-00

Unavailable

24

SCREW, TAPPING

90167-05079-00

$4.14

25

COVER, SIDE 5

BEB-2171E-00-00

Unavailable

26

RIVET

90269-06008-00

$9.49

27

COVER, REAR FENDER

BEB-21651-01-00

Unavailable

28

RIVET

90269-06008-00

$9.49

29

MOLE, SIDE COVER 1

BEB-2171L-00-00

Unavailable

30

BOLT

90109-06084-00

Unavailable

31

SCREW, TAPPING

90167-05079-00

$4.14

32

RIVET

90269-06008-00

$9.49

33

MOLE, SIDE COVER 2

BEB-2171M-00-00

Unavailable

34

BOLT

90109-06084-00

Unavailable

35

SCREW, TAPPING

90167-05079-00

$4.14

36

RIVET

90269-06008-00

$9.49
