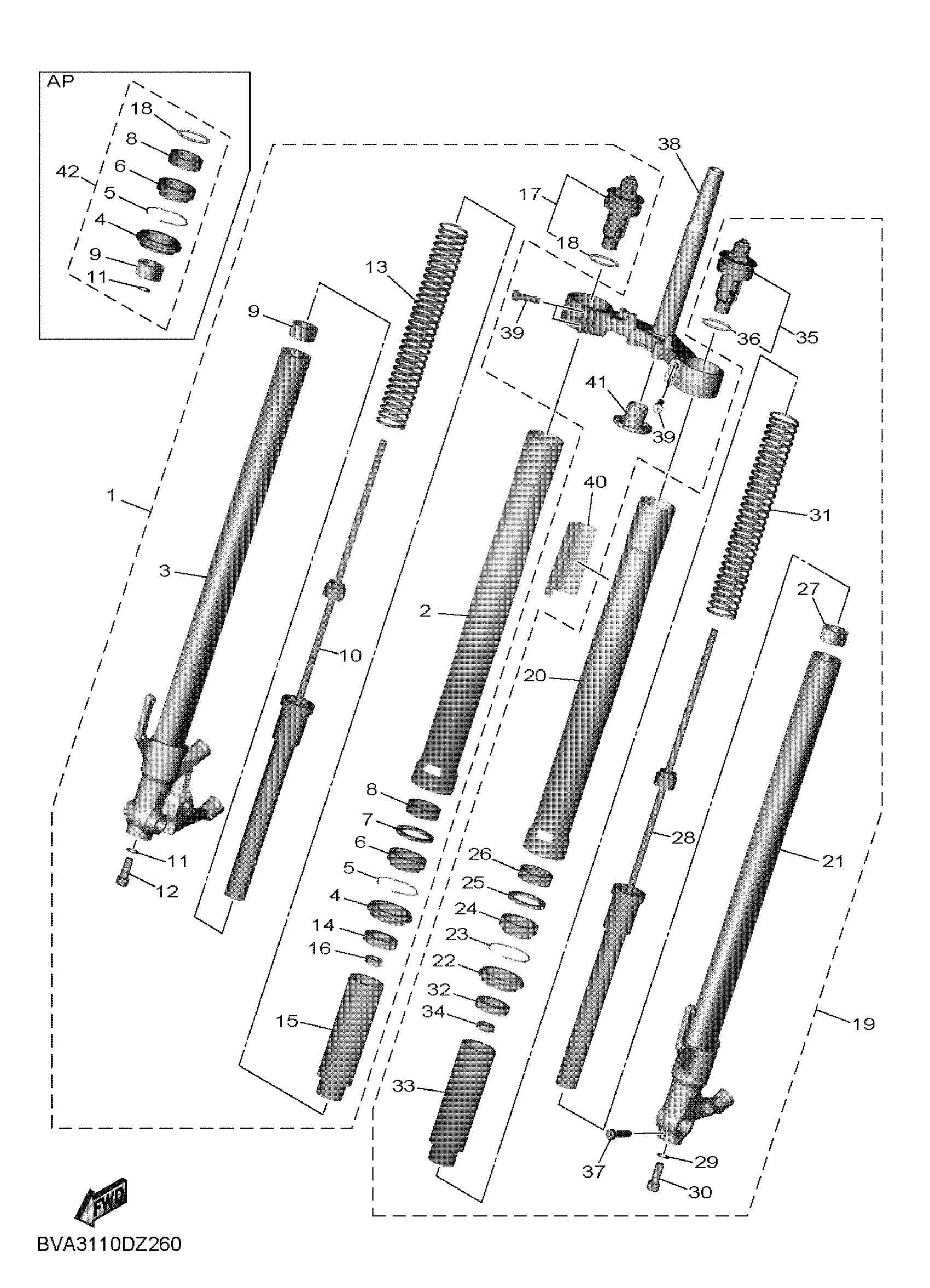

Yamaha YZFR7SL (YZFR7) BVAK 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R

BEB-23103-00-00

$840.99

2

TUBE, OUTER (L.H)

BEB-23126-00-00

$361.99

3

INNER TUBE COMP.2

BEB-23120-00-00

$350.99

4

SEAL, DUST

4EB-23144-00-00

$22.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

OIL SEAL

4EB-23145-01-00

$28.99

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

METAL, SLIDE 1

1RC-23125-00-00

$15.49

9

METAL, SLIDE

4FM-23171-40-00

$23.99

10

CYLINDER COMP., FR

BEB-23170-10-00

Unavailable

11

GASKET

509-23158-L0-00

$16.49

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

13

SPRING, FRONT FORK

BEB-23141-00-00

Unavailable

14

WASHER

5VY-12277-00-00

$12.99

15

SPACER

5VY-23118-00-00

Unavailable

16

NUT

3LC-23357-00-00

Unavailable

17

BOLT, CAP

BEB-23111-10-00

Unavailable

18

O-RING

3XJ-23147-L1-00

Unavailable

19

FRONT FORK ASSY (L

BEB-23102-00-00

Unavailable

20

TUBE, OUTER (L.H)

BEB-23126-00-00

$361.99

21

INNER TUBE COMP.1

BEB-23110-00-00

Unavailable

22

SEAL, DUST

4EB-23144-00-00

$22.99

23

CLIP, OIL SEAL

26H-23156-00-00

$7.99

24

OIL SEAL

4EB-23145-01-00

$28.99

25

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

26

METAL, SLIDE 1

1RC-23125-00-00

$15.49

27

METAL, SLIDE

4FM-23171-40-00

$23.99

28

CYLINDER COMP., FR

BEB-23170-00-00

Unavailable

29

GASKET

509-23158-L0-00

$16.49

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

31

SPRING, FRONT FORK

BEB-23141-00-00

Unavailable

32

WASHER

5VY-12277-00-00

$12.99

33

SPACER

5VY-23118-00-00

Unavailable

34

NUT

3LC-23357-00-00

Unavailable

35

BOLT, CAP

BEB-23111-00-00

Unavailable

36

O-RING

3XJ-23147-L1-00

Unavailable

37

BOLT, SOCKET

91314-08035-00

Unavailable

38

UNDER BRACKET COMP

BEB-23340-00-00

Unavailable

39

BOLT,SOCKET

91314-08030-00

Unavailable

40

PROTECTOR

BEB-23472-00-00

Unavailable

41

COVER, LOWER 1

4KM-23123-01-00

Unavailable

42

FORK SEAL KIT (ONE FORK)

B7N-W003B-00-00

Unavailable
