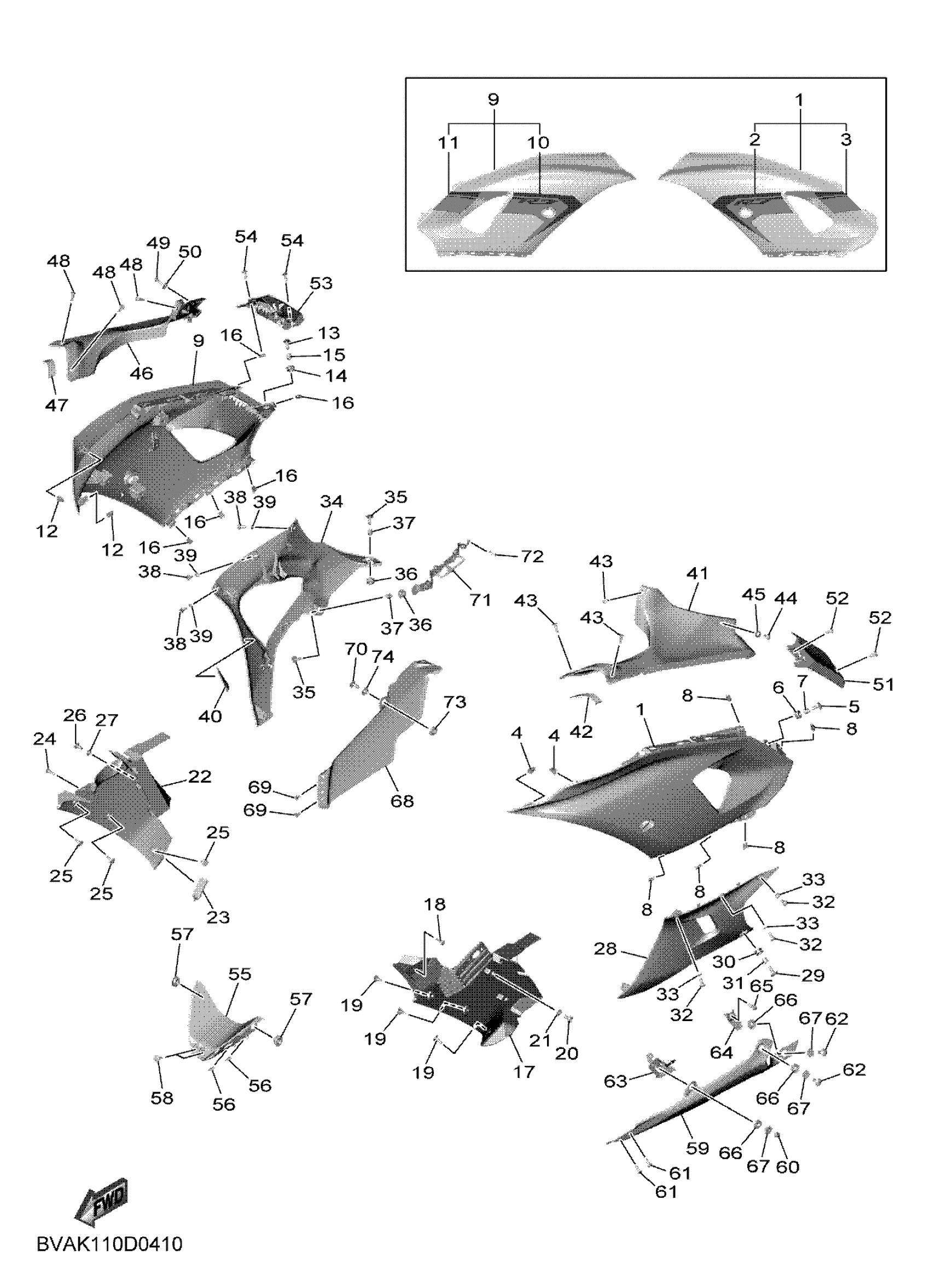

Yamaha YZFR7SL (YZFR7) BVAK 2025 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSY 1

BEB-W283U-80-P5

Unavailable

2

GRAPHIC 1

BVA-28391-40-00

$73.99

3

GRAPHIC 3

BVA-28393-40-00

$31.99

4

CLAMP

90464-07018-00

$0.65

5

BOLT

90111-06040-00

$4.29

6

GROMMET

90480-14003-00

$8.49

7

COLLAR

90387-06260-00

$8.49

8

NUT, SPRING(1YT)

90183-05042-00

$5.60

9

PANEL ASSY 2

BEB-W283V-80-P5

Unavailable

10

GRAPHIC 2

BVA-28392-40-00

$73.99

11

GRAPHIC 4

BVA-28394-40-00

$31.99

12

CLAMP

90464-07018-00

$0.65

13

BOLT

90111-06040-00

$4.29

14

GROMMET

90480-14003-00

$8.49

15

COLLAR

90387-06260-00

$8.49

16

NUT, SPRING(1YT)

90183-05042-00

$5.60

17

PANEL, INNER 1

BEB-2836K-00-00

Unavailable

18

RIVET

90269-06008-00

Unavailable

19

RIVET

90269-06021-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

21

COLLAR

90387-06130-00

Unavailable

22

PANEL, INNER 2

BEB-2836L-00-00

Unavailable

23

DAMPER 2

BEB-28227-00-00

Unavailable

24

RIVET

90269-06008-00

Unavailable

25

RIVET

90269-06021-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

27

COLLAR

90387-06130-00

Unavailable

28

PANEL 3

BEB-2172G-00-P5

Unavailable

29

BOLT

90111-06040-00

$4.29

30

GROMMET

90480-14003-00

$8.49

31

COLLAR

90387-06260-00

$8.49

32

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

33

. WASHER, PLATE

90202-05088-00

Unavailable

34

PANEL 4

BEB-2172H-00-P5

Unavailable

35

BOLT

90111-06040-00

$4.29

36

GROMMET

90480-14003-00

$8.49

37

COLLAR

90387-06260-00

$8.49

38

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

39

. WASHER, PLATE

90202-05088-00

Unavailable

40

SEAT 1

BEB-2838G-00-00

Unavailable

41

PANEL, CONSOLE 1

BEB-2837L-00-P4

Unavailable

42

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

43

RIVET

90269-06001-00

Unavailable

44

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

45

. WASHER, PLATE

90202-05088-00

Unavailable

46

PANEL, CONSOLE 2

BEB-2837M-00-P4

Unavailable

47

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

48

RIVET

90269-06001-00

Unavailable

49

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

50

. WASHER, PLATE

90202-05088-00

Unavailable

51

COVER 1

BEB-28219-00-00

Unavailable

52

SCREW, TAPPING

90167-05080-00

Unavailable

53

COVER 2

BEB-28229-00-00

Unavailable

54

SCREW, TAPPING

90167-05080-00

Unavailable

55

PANEL, INNER 3

BEB-2836M-00-00

Unavailable

56

NUT, SPRING(1YT)

90183-05042-00

$5.60

57

GROMMET(4BH)

90480-01559-00

Unavailable

58

RIVET

90269-06021-00

Unavailable

59

PROTECTOR 1

BEB-2834V-11-P5

Unavailable

60

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

61

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

62

BOLT

90111-06040-00

$4.29

63

BRACKET 1

BEB-2836A-00-00

Unavailable

64

BRACKET 2

BEB-2836E-00-00

Unavailable

65

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

66

GROMMET(2JG)

90480-14477-00

Unavailable

67

COLLAR

90387-06323-00

Unavailable

68

PROTECTOR 2

BEB-2834W-11-P5

Unavailable

69

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

70

BOLT

90111-06040-00

$4.29

71

BRACKET 3

BEB-2836F-00-00

Unavailable

72

CLAMP

90464-36005-00

Unavailable

73

GROMMET(2JG)

90480-14477-00

Unavailable

74

COLLAR

90387-06323-00

Unavailable
