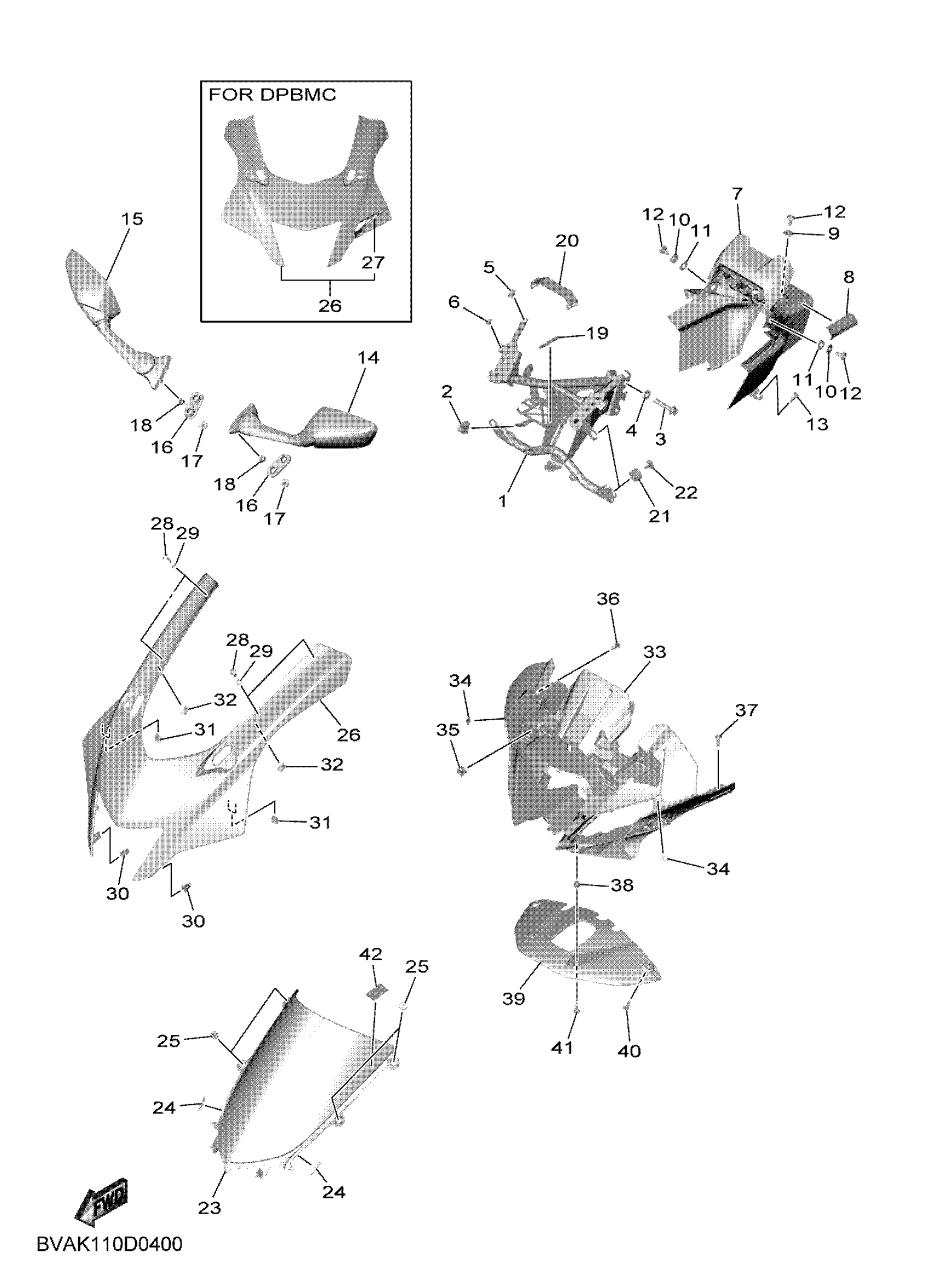

Yamaha YZFR7SL (YZFR7) BVAK 2025 COWLING 1 Diagram
#
Description
Price
14
REAR VIEW MIRROR A
BEB-26280-00-00
Unavailable
16
PLATE, MIRROR FITTING 1
4C8-26298-00-00
Unavailable
17
NUT, CROWN(1FN)
90176-06055-00
Unavailable
18
COLLAR(J45)
90387-064T3-00
Unavailable
19
DAMPER 4
2C0-28247-00-00
Unavailable
20
BAND,BATTERY
7H3-82131-00-00
Unavailable
21
GROMMET
90480-14004-00
Unavailable
22
SCREW, TAPPING
90167-05020-00
Unavailable
23
WINDSHIELD
BN6-28381-00-00
Unavailable
24
SEAL 1
BEB-28428-00-00
Unavailable
25
NUT(1KT)
90179-05523-00
Unavailable
26
BODY, FRONT UPPER
BEB-2835G-00-P4
Unavailable
28
SCREW, ROUND HEAD(1UX)
90150-05023-00
Unavailable
29
. WASHER, PLATE
90202-05088-00
Unavailable
30
CLAMP
90464-07018-00
Unavailable
31
NUT, SPRING(1YT)
90183-05042-00
Unavailable
33
BODY, FRONT UPPER
BEB-2835H-00-00
Unavailable
34
DAMPER
5SL-21649-00-00
Unavailable
35
GROMMET
90480-10003-00
Unavailable
36
SCREW, TAPPING
90167-05080-00
Unavailable
37
RIVET
90269-06001-00
Unavailable
38
GROMMET
90480-08005-00
Unavailable
39
PLATE, FRONT
BEB-28361-00-P4
Unavailable
40
RIVET
90269-06001-00
Unavailable
41
SCREW, TAPPING
90167-05080-00
Unavailable
42
LABEL, NOTICE WINDSHIELD 1
4B5-2815K-00-00
Unavailable
