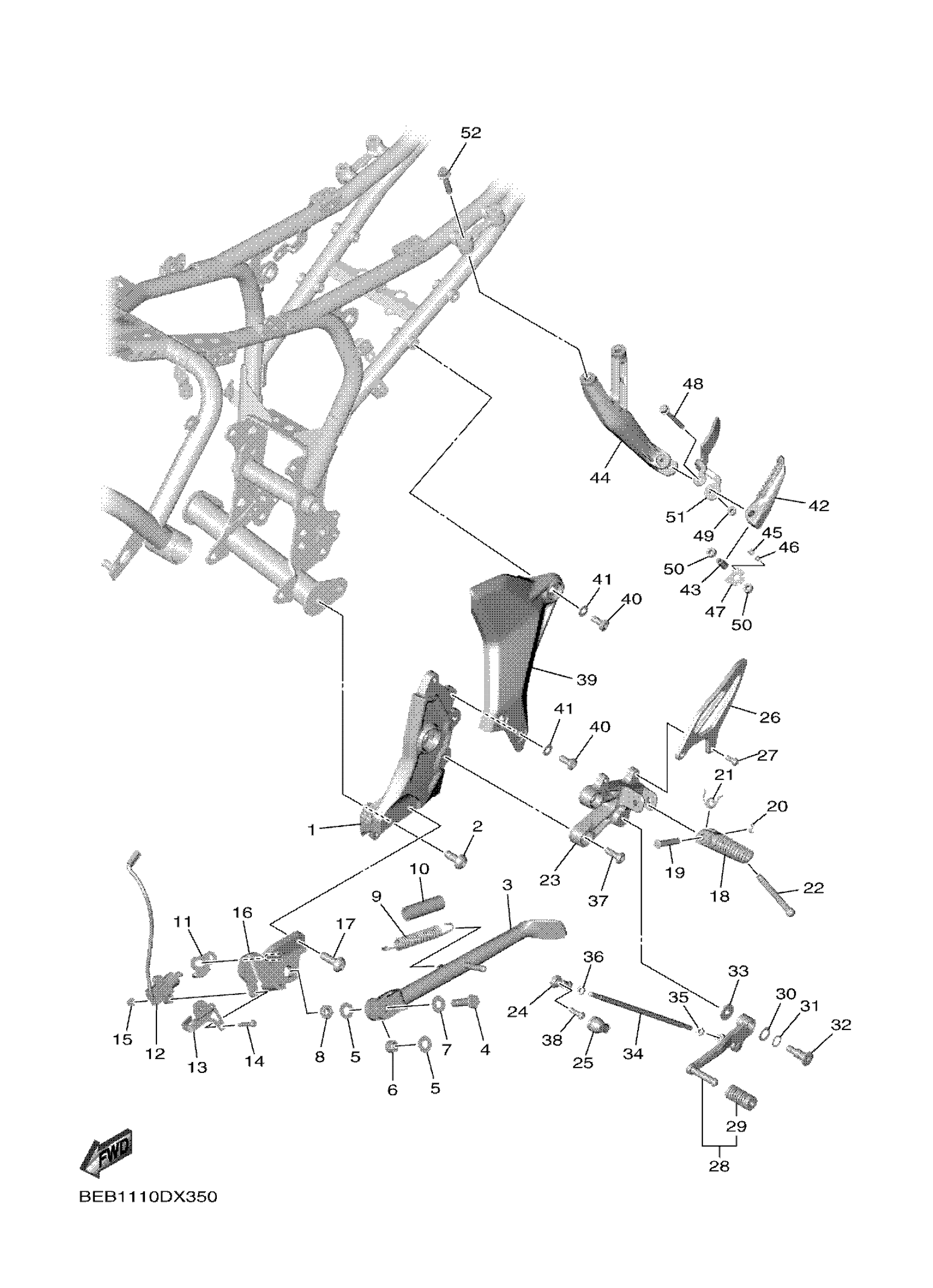

Yamaha YZFR7RL (YZFR7) BVA3 2024 STAND & FOOTREST Diagram

#

Description
Price

1

BRACKET, ADAPTER 1

BEB-274A3-00-00

Unavailable

2

BOLT

90111-10006-00

$5.49

3

STAND, SIDE

BEB-27311-00-00

$48.99

4

BOLT

90101-10034-00

$8.49

5

WASHER, PLATE

90201-10075-00

$3.28

6

COLLAR

90387-10020-00

$17.99

7

WASHER, PLATE(47X)

90201-101J1-00

$8.49

8

NUT, SELF-LOCKING

90185-10012-00

$9.49

9

SPRING TENSION

90506-26014-00

$8.49

10

HOSE (L60)

90445-197J2-00

$4.61

11

LINK, SIDE STAND

BEB-27315-00-00

Unavailable

12

SWITCH, SIDE STAND

1WS-82566-01-00

$55.99

13

HOLDER

BEB-2419A-00-00

$13.99

14

BOLT, HEXAGON SOCK

90110-05071-00

$2.65

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

BRACKET, SIDE STAN

BEB-27321-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-10059-00

Unavailable

18

FOOTREST 3

B7N-27451-00-00

Unavailable

19

PIN, CLEVIS

91702-08040-00

Unavailable

20

PIN, COTTER

91490-25020-00

Unavailable

21

SPRING, TORSION

90508-18134-00

Unavailable

22

BOLT

90109-08269-00

Unavailable

23

BRACKET 2

BEB-27442-00-00

Unavailable

24

JOINT, ROD 1

5VX-18116-00-00

Unavailable

25

COVER, DUST

5VX-18154-00-00

Unavailable

26

PLATE 1

BEB-27445-00-00

Unavailable

27

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

28

SHIFT PEDAL ASSY

BEB-18110-00-00

Unavailable

29

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

30

WASHER, PLATE

90201-12051-00

Unavailable

31

WASHER, WAVE (17W)

90206-12074-00

Unavailable

32

BOLT

4BP-27434-11-00

Unavailable

33

WASHER, PLATE

90201-08053-00

Unavailable

34

ROD, SHIFT

BW3-18115-00-00

Unavailable

35

NUT (2H9)

90170-06228-00

Unavailable

36

NUT(650)

95380-06700-00

Unavailable

37

BOLT

90109-084F7-00

Unavailable

38

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

39

COVER 1

BEB-27453-00-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-08020-00

Unavailable

41

WASHER PLATE 141181390000

90201-08085-00

Unavailable

42

FOOTREST, REAR 1

B3L-27431-00-00

Unavailable

43

COLLAR (8H9)

90387-06697-00

Unavailable

44

BRACKET 4

2CR-2741L-01-00

Unavailable

45

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

46

BALL

93501-04011-00

Unavailable

47

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

48

BOLT, FLANGE

95817-06055-00

Unavailable

49

NUT,SELF-LOCKING

95607-06200-00

Unavailable

50

COLLAR

90387-06358-00

Unavailable

51

STOPPER

BEB-27214-00-00

Unavailable

52

BOLT, FLANGE

95817-08035-00

Unavailable
