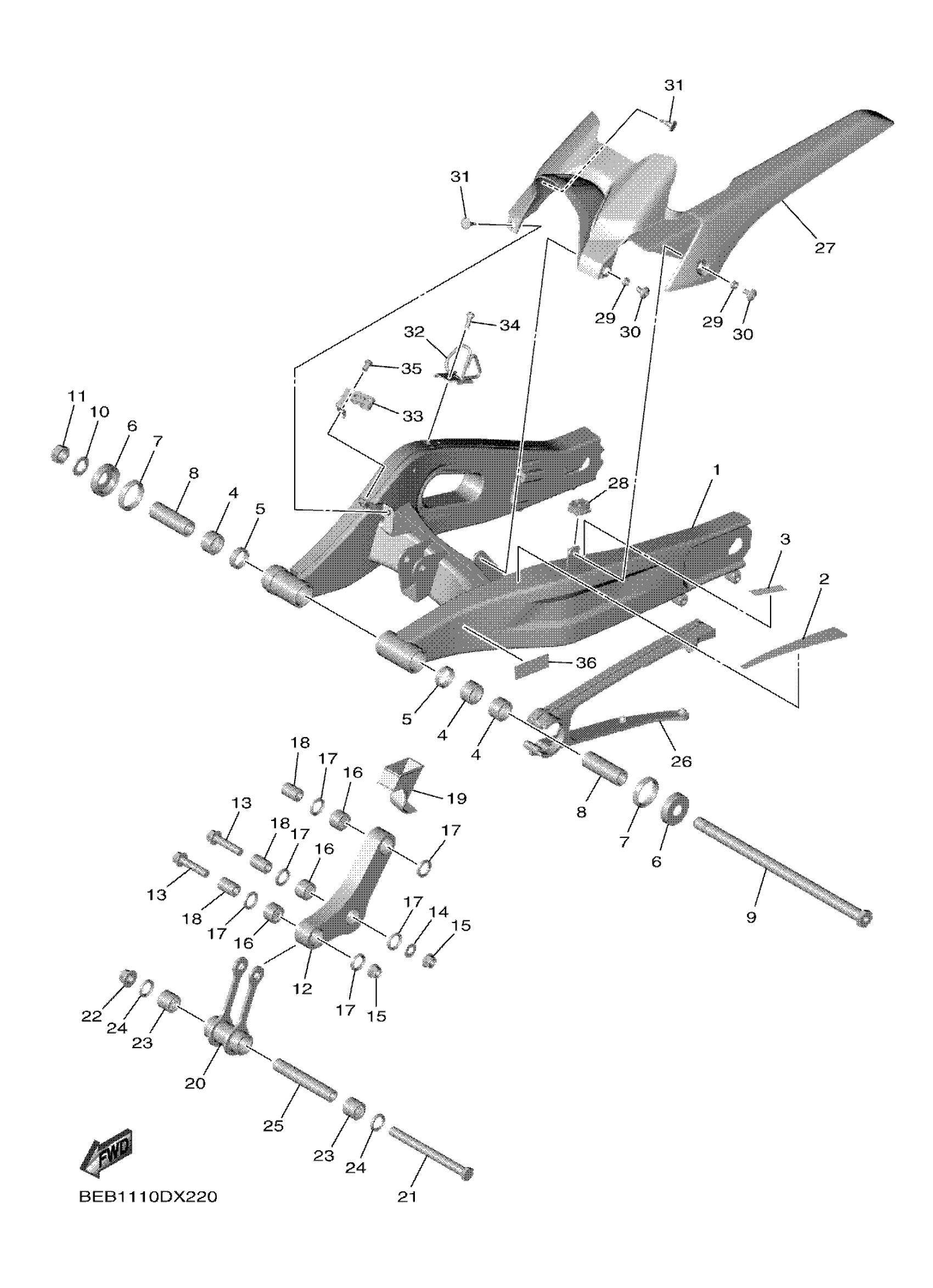

Yamaha YZFR7RL (YZFR7) BVA3 2024 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

BEB-22110-01-P0

$386.99

2

SEAL 1

BU2-22358-00-00

$8.49

3

SEAL 2

3P6-28228-00-00

$9.99

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

5

OIL SEAL (23X)

93106-22019-00

$11.49

6

COVER

30X-2219X-00-00

$16.49

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

BUSH, SOLID(1LV)

90380-16158-00

$31.99

9

SHAFT, PIVOT

1UY-22141-10-00

$61.99

10

WASHER, PLATE(33Y)

90201-164H4-00

$9.49

11

NUT, SELF-LOCKING

90185-16002-00

$16.99

12

ARM, RELAY

1WS-2217A-00-00

$96.99

13

BOLT, WASHER BASED(4KD)

90105-10728-00

$30.99

14

WASHER, PLATE

90201-10045-00

$8.49

15

NUT, S/L FLANGE

95602-10200-00

$4.82

16

BEARING

93315-31758-00

Unavailable

17

OIL SEAL

93109-17071-00

Unavailable

18

COLLAR

90387-1012A-00

Unavailable

19

BOOT, RUBBER

1WS-22189-00-00

Unavailable

20

ROD, CONNECTING 1

BEB-2217F-00-00

Unavailable

21

BOLT

90101-12049-00

Unavailable

22

NUT, SELF-LOCKING

95602-12200-00

Unavailable

23

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

BUSH

1WS-22184-00-00

Unavailable

26

SEAL, GUARD

BEB-22151-00-00

Unavailable

27

RR FENDER COVER COMP

B34-F1650-02-00

Unavailable

28

DAMPER, CHAIN CASE

B4C-22332-00-00

Unavailable

29

COLLAR

90387-06344-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

31

RIVET

90269-07007-00

Unavailable

32

HOLDER, BRAKE HOSE

BU2-25887-00-00

Unavailable

33

HOLDER, BRAKE HOSE

1WS-2588F-00-00

Unavailable

34

BOLT, BUTTON

92014-06016-00

Unavailable

35

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

36

LABEL, TIRE

2CR-21668-01-00

Unavailable
