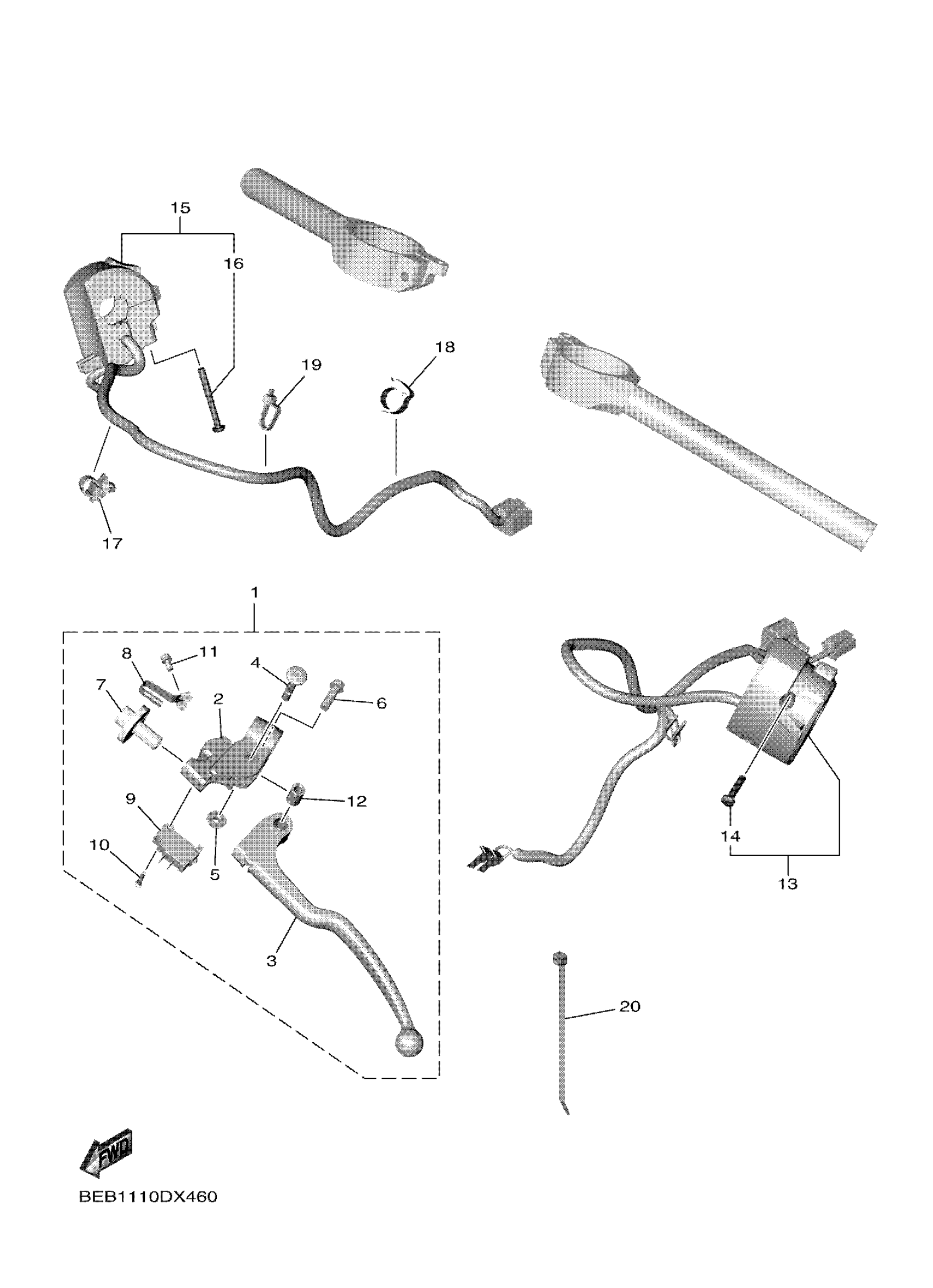

Yamaha YZFR7RL (YZFR7) BVA3 2024 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY

2C0-82910-02-00

$89.67

2

HOLDER, LEVER 1

4XV-82911-10-00

$32.59

3

LEVER 1

5EB-83912-03-00

$46.16

4

BOLT, LEVER

2C0-83945-00-00

Unavailable

5

NUT,SELF-LOCKING

95607-06200-00

$10.09

6

. BOLT, FLANGE

95027-06020-00

$0.93

7

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$47.04

8

PLATE, SPRING

4XV-83929-00-00

$8.72

9

SWITCH

4XV-82917-01-00

$67.31

10

SCREW, FLAT

98707-03016-00

$6.22

11

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.06

12

COLLAR, LEVER 1

5JJ-83913-00-00

$7.01

13

SWITCH, HANDLE 5

BEB-83969-00-00

$114.10

14

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.76

15

SWITCH, HANDLE 3

BEB-83963-00-00

$59.27

16

SCREW, PAN

98507-05045-00

Unavailable

17

CLAMP

90464-25009-00

Unavailable

18

CLAMP

90464-16001-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP

90464-80002-00

Unavailable
