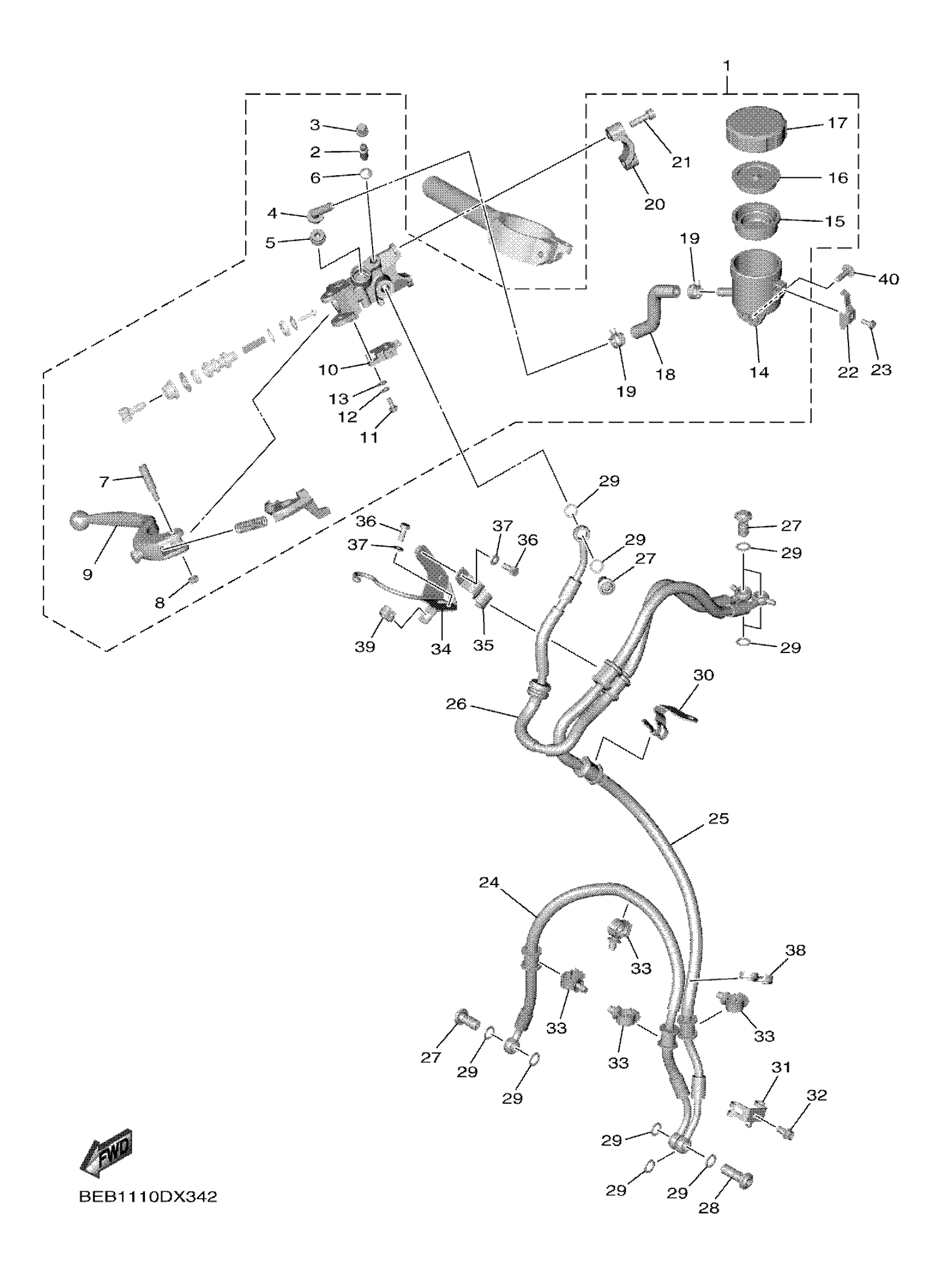

Yamaha YZFR7RL (YZFR7) BVA3 2024 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

BEB-2583T-01-00

Unavailable

2

SCREW, BLEED

3YK-25824-00-00

$8.99

3

CAP

3YK-25825-00-00

Unavailable

4

JOINT

B5Y-2582A-00-00

$4.72

5

O-RING

4BP-2585F-01-00

Unavailable

6

SEAL 1

5VY-25975-00-00

$2.29

7

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER SET

BEB-W2616-00-00

$55.99

10

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

TANK, RESERVOIR

5SL-25894-20-00

$38.99

15

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

16

BUSH,DIAPHRAGM

5VY-25855-00-00

Unavailable

17

CAP, RESERVOIR

5VY-25852-00-00

Unavailable

18

HOSE, RESERVOIR

BEB-25895-00-00

Unavailable

19

CLIP

90467-120A3-00

Unavailable

20

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

21

BOLT

5VS-26332-00-00

Unavailable

22

HOLDER

5VY-2589G-00-00

Unavailable

23

SCREW

5VY-2589H-00-00

Unavailable

24

HOSE, BRAKE 1

BEB-25872-01-00

Unavailable

25

BRAKE HOSE ASSY

BEB-2584A-01-00

Unavailable

26

HOSE, BRAKE

BEB-2584B-01-00

Unavailable

27

BOLT, UNION

90401-10172-00

Unavailable

28

BOLT, UNION

90401-10042-00

Unavailable

29

GASKET

90430-10005-00

Unavailable

30

HOLDER, BRAKE HOSE

BEB-25875-00-00

Unavailable

31

HOLDER, BRAKE HOSE

BEB-25886-00-00

Unavailable

32

BOLT, FLANGE DEEP

95E37-06012-00

Unavailable

33

CLAMP

90464-18002-00

Unavailable

34

BRACKET

BEB-26296-00-00

Unavailable

35

BRACKET 2

BEB-27264-00-00

Unavailable

36

BOLT(4GV)

97017-05012-00

Unavailable

37

WASHER(1RW)

92907-05600-00

Unavailable

38

CLAMP(6R3)

90464-13M34-00

Unavailable

39

CLAMP (26H)

90464-08051-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable
