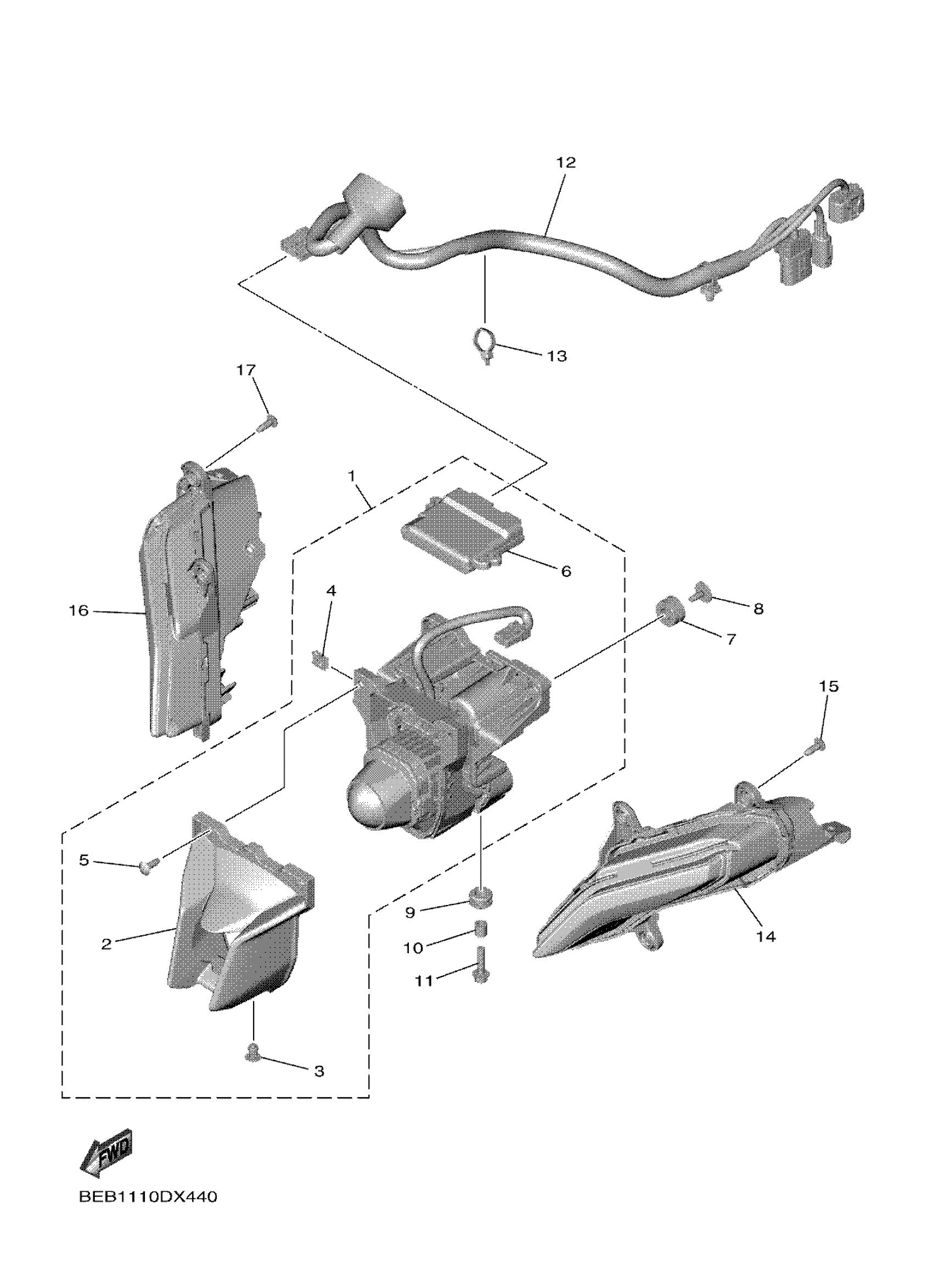

Yamaha YZFR7PW (YZFR7) BEBN1 2023 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

BEB-84300-03-00

Unavailable

2

COVER, HEADLIGHT

BEB-2838E-00-00

$32.99

3

RIVET

90269-06816-00

$4.31

4

NUT, SPRING(1YT)

90183-05042-00

$5.60

5

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

6

LIGHT CONTROL UNIT

BEB-85490-01-00

$373.99

7

GROMMET

90480-14004-00

$8.49

8

SCREW, TAPPING

90167-05020-00

$3.28

9

GROMMET

90480-14003-00

$8.49

10

COLLAR

90387-06113-00

$11.49

11

BOLT, FLANGE DEEP RECESS

95D37-06025-00

$1.12

12

CORD, HEADLIGHT

BEB-84359-00-00

$185.99

13

BAND

1UA-82591-00-00

$4.78

14

PILOT LIGHT ASSY 1

BEB-84301-00-00

$258.99

15

SCREW, TAPPING

90167-05080-00

$2.39

16

PILOT LIGHT ASSY 2

BEB-84302-00-00

Unavailable

17

SCREW, TAPPING

90167-05080-00

$2.39
