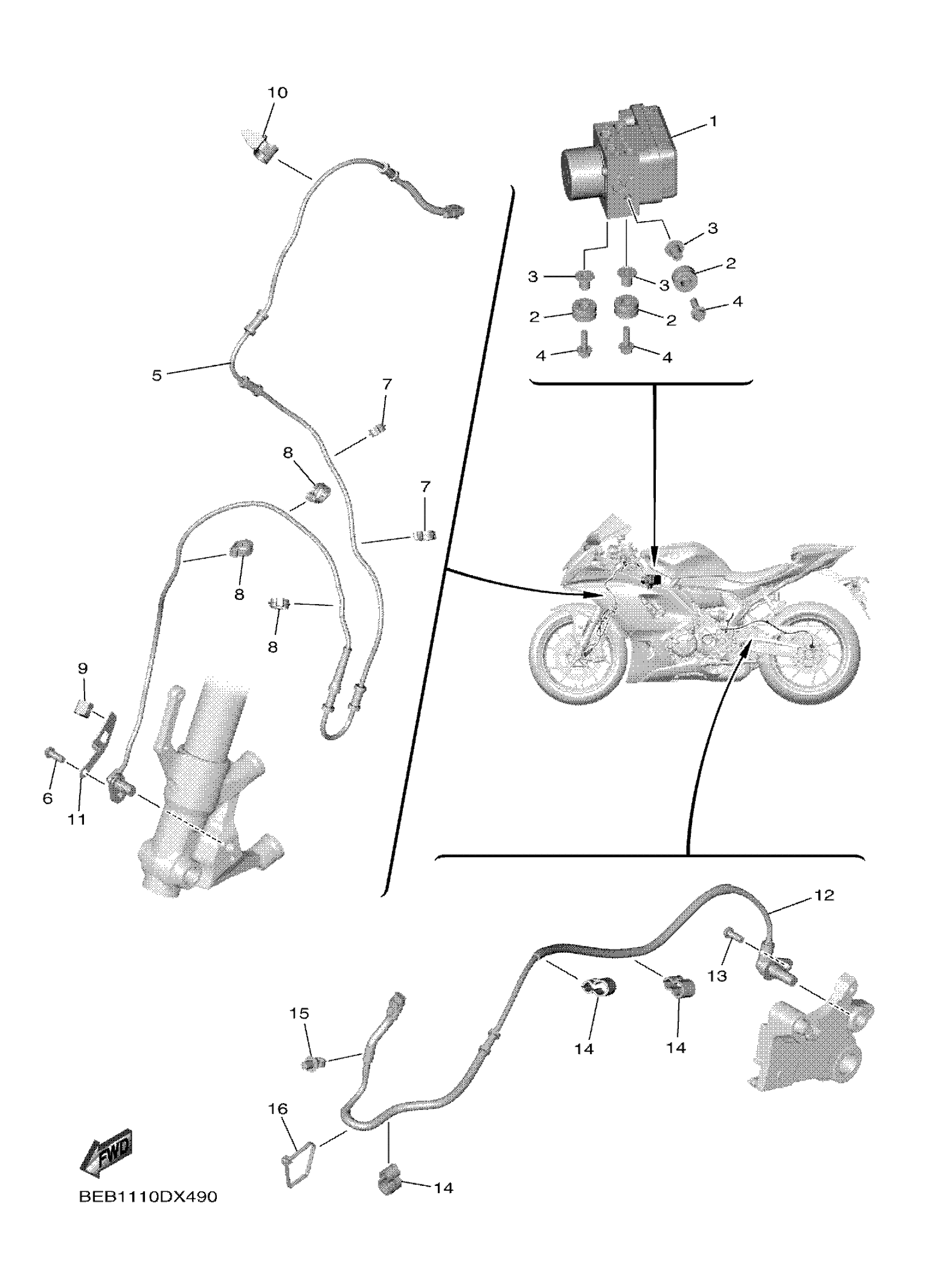

Yamaha YZFR7PW (YZFR7) BEBN1 2023 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

BEB-85930-07-00

$505.99

2

GROMET (3X3)

90480-14229-00

$8.49

3

COLLAR

90387-06M60-00

Unavailable

4

BOLT, FLANGE

95817-06020-00

$3.81

5

WHEEL SENSOR ASSY,

BEB-85970-00-00

$126.99

6

BOLT, BUTTON HEAD

92017-06016-00

$8.49

7

CLAMP

90464-12013-00

$8.49

8

CLAMP

90464-14003-00

Unavailable

9

CLAMP(4GY)

90464-05188-00

$4.72

10

BAND

5YU-82591-00-00

Unavailable

11

BRACKET

BS2-85542-00-00

Unavailable

12

WHEEL SENSOR ASSY,

1XB-85980-01-00

Unavailable

13

BOLT, BUTTON HEAD

92017-06016-00

$8.49

14

CLAMP(4GL)

90464-10233-00

$7.49

15

CLAMP

90464-30009-00

Unavailable

16

BAND

1UA-82591-00-00

Unavailable
