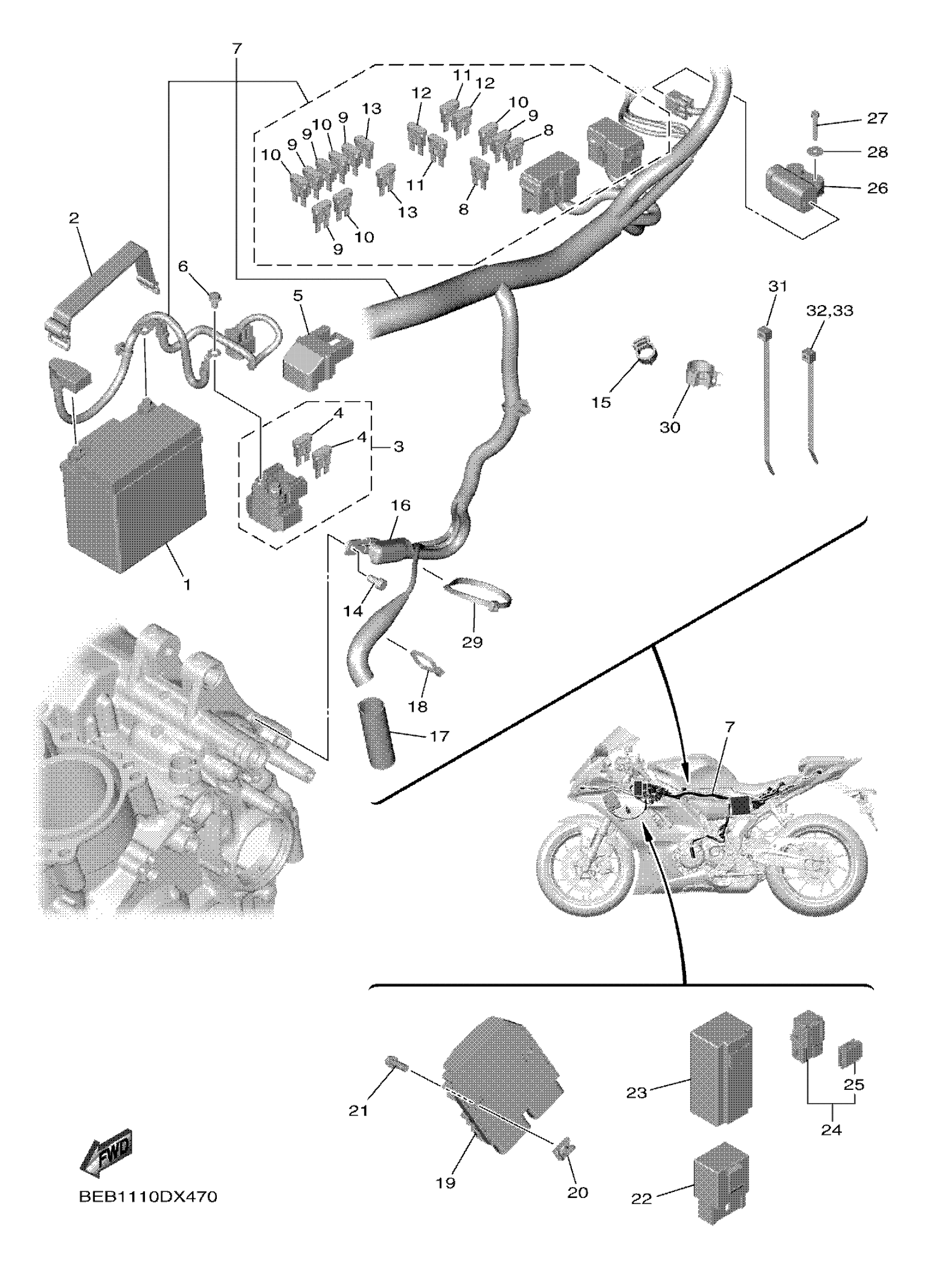

Yamaha YZFR7PW (YZFR7) BEBN1 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

2

BAND, BATTERY

3GX-82131-00-00

Unavailable

3

STARTER RELAY ASSY

1XC-81940-00-00

$65.99

4

FUSE (12V 30A)

1AE-82151-00-00

$7.99

5

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

6

BOLT FLANGE

90105-06230-00

Unavailable

7

WIRE HARNESS ASSY

BEB-82590-00-00

Unavailable

8

. FUSE (3A)

67F-82151-30-00

Unavailable

9

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

FUSE

5JJ-82151-20-00

$7.99

12

FUSE

5JJ-82151-60-00

$7.99

13

FUSE (15A)

67F-82151-50-00

Unavailable

14

BOLT

91380-06012-00

Unavailable

15

CLAMP

90464-14010-00

$3.40

16

COVER, TERMINAL

1WS-81916-00-00

Unavailable

17

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

18

CLAMP

90464-36005-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

27D-81960-00-00

Unavailable

20

NUT, SPRING

90183-060A6-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06020-00

Unavailable

22

RELAY ASSY

5VK-81950-52-00

Unavailable

23

COVER 1

1WS-8246B-00-00

Unavailable

24

RELAY ASSY

1TP-81950-00-00

Unavailable

25

HOLDER,RELAY

5EA-81952-00-00

Unavailable

26

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

27

BOLT

91312-04025-00

Unavailable

28

WASHER, PLATE

90201-04030-00

Unavailable

29

CLAMP

90464-80002-00

Unavailable

30

CLAMP(4GY)

90464-20191-00

Unavailable

31

CLAMP

90464-65001-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable
