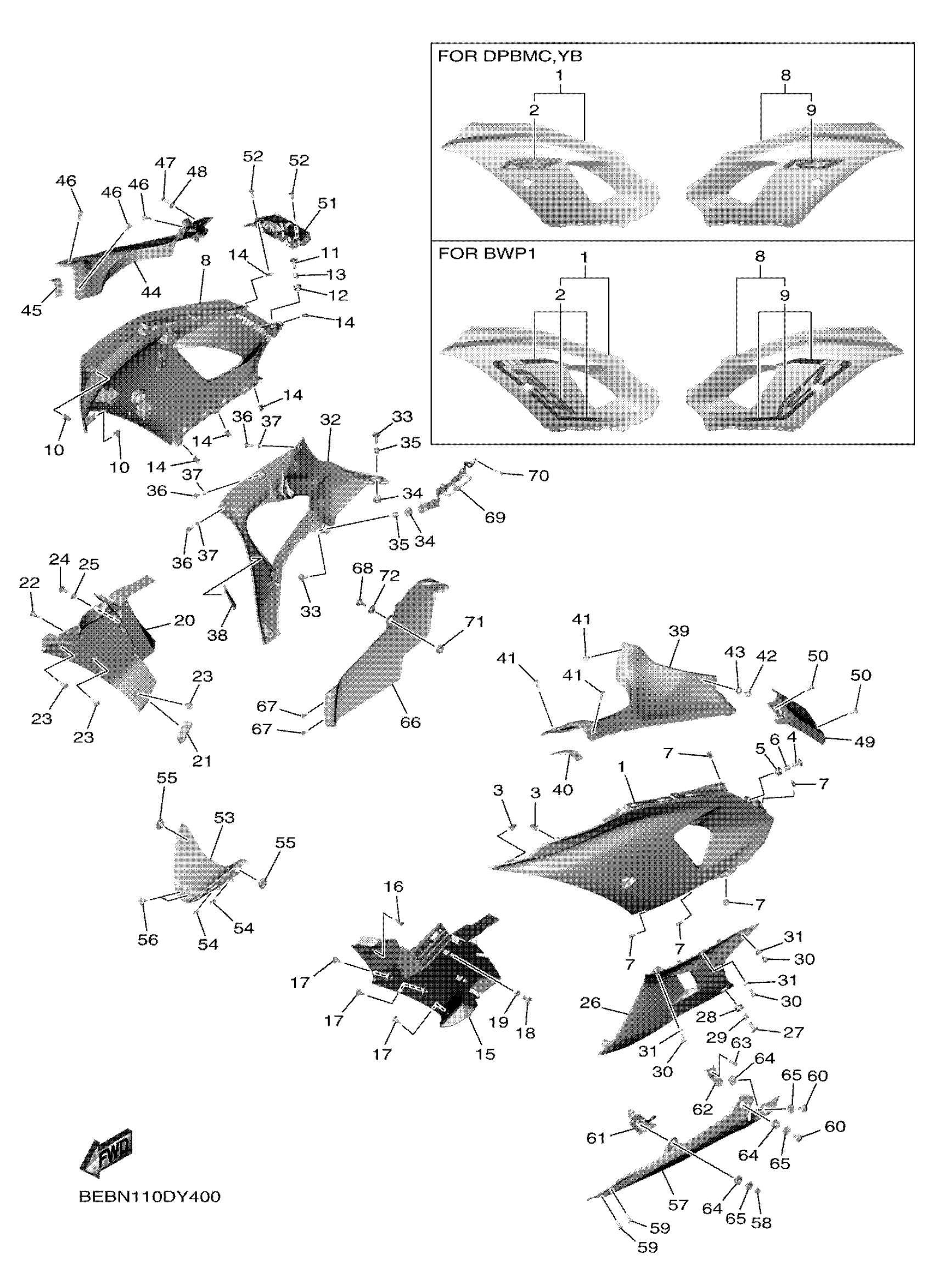

Yamaha YZFR7PW (YZFR7) BEBN1 2023 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSY 1

BEB-W283U-10-33

$167.99

2

EMBLEM, 1

BEB-2834C-10-00

$32.99

3

CLAMP

90464-07018-00

$0.65

4

BOLT

90111-06040-00

$4.29

5

GROMMET

90480-14003-00

$8.49

6

COLLAR

90387-06260-00

$8.49

7

NUT, SPRING(1YT)

90183-05042-00

$5.60

8

PANEL ASSY 2

BEB-W283V-10-33

$167.99

9

EMBLEM 2

BEB-2835C-10-00

$32.99

10

CLAMP

90464-07018-00

$0.65

11

BOLT

90111-06040-00

$4.29

12

GROMMET

90480-14003-00

$8.49

13

COLLAR

90387-06260-00

$8.49

14

NUT, SPRING(1YT)

90183-05042-00

$5.60

15

PANEL, INNER 1

BEB-2836K-00-00

$38.99

16

RIVET

90269-06008-00

Unavailable

17

RIVET

90269-06021-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

19

COLLAR

90387-06130-00

Unavailable

20

PANEL, INNER 2

BEB-2836L-00-00

Unavailable

21

DAMPER 2

BEB-28227-00-00

Unavailable

22

RIVET

90269-06008-00

Unavailable

23

RIVET

90269-06021-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

25

COLLAR

90387-06130-00

Unavailable

26

PANEL 3

BEB-2172G-00-33

Unavailable

27

BOLT

90111-06040-00

$4.29

28

GROMMET

90480-14003-00

$8.49

29

COLLAR

90387-06260-00

$8.49

30

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

31

. WASHER, PLATE

90202-05088-00

Unavailable

32

PANEL 4

BEB-2172H-00-33

Unavailable

33

BOLT

90111-06040-00

$4.29

34

GROMMET

90480-14003-00

$8.49

35

COLLAR

90387-06260-00

$8.49

36

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

37

. WASHER, PLATE

90202-05088-00

Unavailable

38

SEAT 1

BEB-2838G-00-00

Unavailable

39

PANEL, CONSOLE 1

BEB-2837L-00-P1

Unavailable

40

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

41

RIVET

90269-06001-00

Unavailable

42

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

43

. WASHER, PLATE

90202-05088-00

Unavailable

44

PANEL, CONSOLE 2

BEB-2837M-00-P1

Unavailable

45

DAMPER, MUFFLER 2

7NJ-14757-00-00

Unavailable

46

RIVET

90269-06001-00

Unavailable

47

SCREW, TAPPING(4TX)

90167-05076-00

Unavailable

48

. WASHER, PLATE

90202-05088-00

Unavailable

49

COVER 1

BEB-28219-00-00

Unavailable

50

SCREW, TAPPING

90167-05080-00

Unavailable

51

COVER 2

BEB-28229-00-00

Unavailable

52

SCREW, TAPPING

90167-05080-00

Unavailable

53

PANEL, INNER 3

BEB-2836M-00-00

Unavailable

54

NUT, SPRING(1YT)

90183-05042-00

$5.60

55

GROMMET(4BH)

90480-01559-00

Unavailable

56

RIVET

90269-06021-00

Unavailable

57

PROTECTOR 1

BEB-2834V-10-P1

Unavailable

58

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

59

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

60

BOLT

90111-06040-00

$4.29

61

BRACKET 1

BEB-2836A-00-00

Unavailable

62

BRACKET 2

BEB-2836E-00-00

Unavailable

63

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

64

GROMMET(2JG)

90480-14477-00

Unavailable

65

COLLAR

90387-06323-00

Unavailable

66

PROTECTOR 2

BEB-2834W-10-P1

Unavailable

67

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

68

BOLT

90111-06040-00

$4.29

69

BRACKET 3

BEB-2836F-00-00

Unavailable

70

CLAMP

90464-36005-00

Unavailable

71

GROMMET(2JG)

90480-14477-00

Unavailable

72

COLLAR

90387-06323-00

Unavailable
