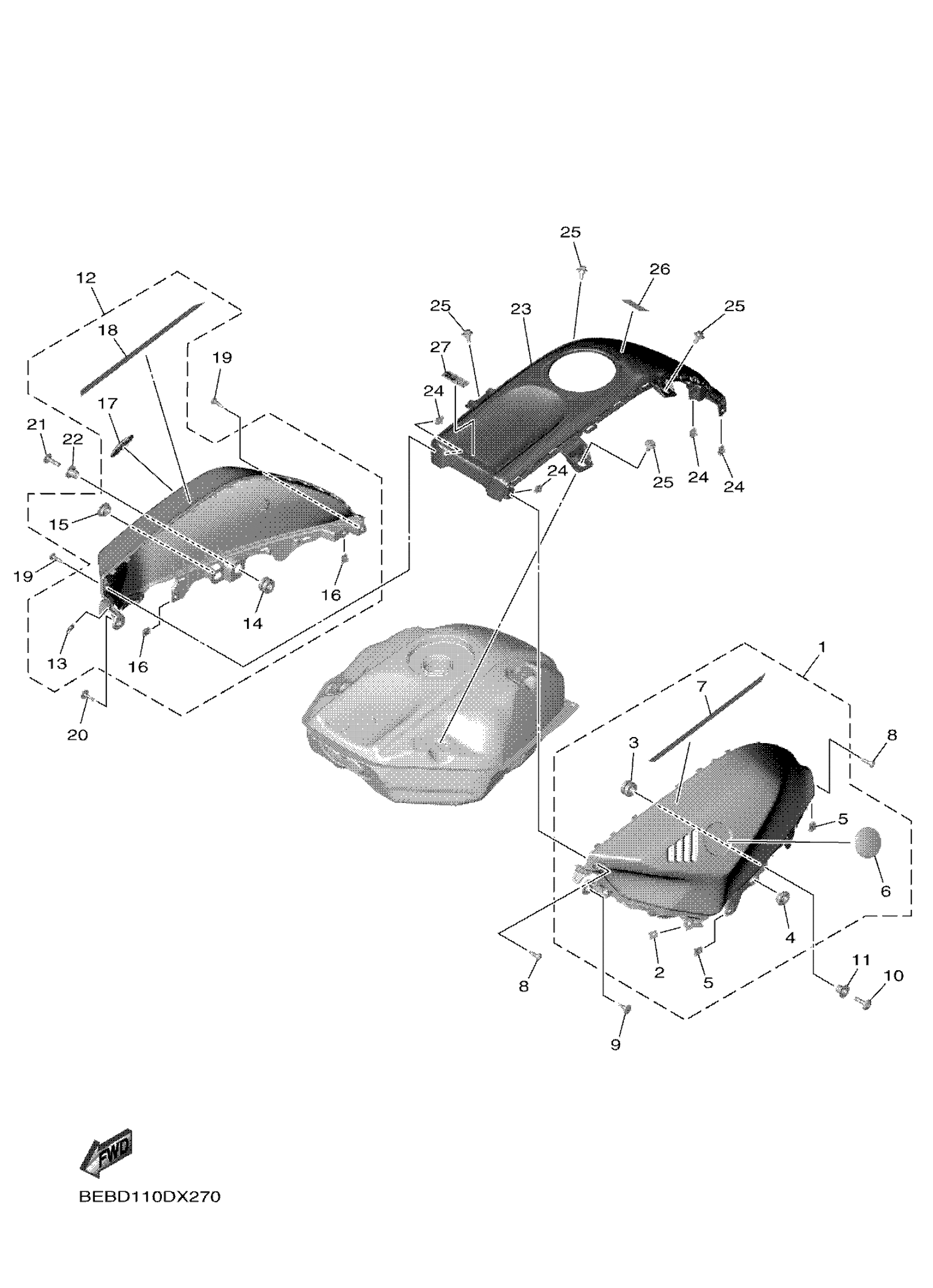

Yamaha YZFR7NW (YZFR7 WGP 60TH) BEBD 2022 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, TANK SIDE 1

BEB-Y2412-20-GE

$244.99

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

GROMMET

90480-17007-00

Unavailable

4

GROMMET(4DN)

90480-01558-00

$4.19

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

EMBLEM

BEB-2413B-00-00

$35.99

7

GRAPHIC 7

BEB-2424A-00-00

$33.99

8

SCREW, ROUND TAPPING

90160-05014-00

$7.49

9

RIVET

90269-06001-00

$5.60

10

BOLT,HEX. SOCKET BUTTON

90111-06150-00

$3.35

11

COLLAR

90387-10107-00

$5.60

12

COVER, TANK SIDE 2

BEB-Y2413-20-GE

$244.99

13

NUT, SPRING(1YT)

90183-05042-00

$5.60

14

GROMMET

90480-17007-00

Unavailable

15

GROMMET(4DN)

90480-01558-00

$4.19

16

NUT, SPRING(1YT)

90183-05042-00

$5.60

17

EMBLEM

BEB-2413B-00-00

$35.99

18

GRAPHIC 8

BEB-2424B-00-00

Unavailable

19

SCREW, ROUND TAPPING

90160-05014-00

$7.49

20

RIVET

90269-06001-00

$5.60

21

BOLT,HEX. SOCKET BUTTON

90111-06150-00

$3.35

22

COLLAR

90387-10107-00

$5.60

23

COVER, TOP

BEB-2171A-00-P2

Unavailable

24

NUT, SPRING(1YT)

90183-05042-00

$5.60

25

BOLT

90109-06322-00

Unavailable

26

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

27

EMBLEM

BEB-2416B-00-00

Unavailable
