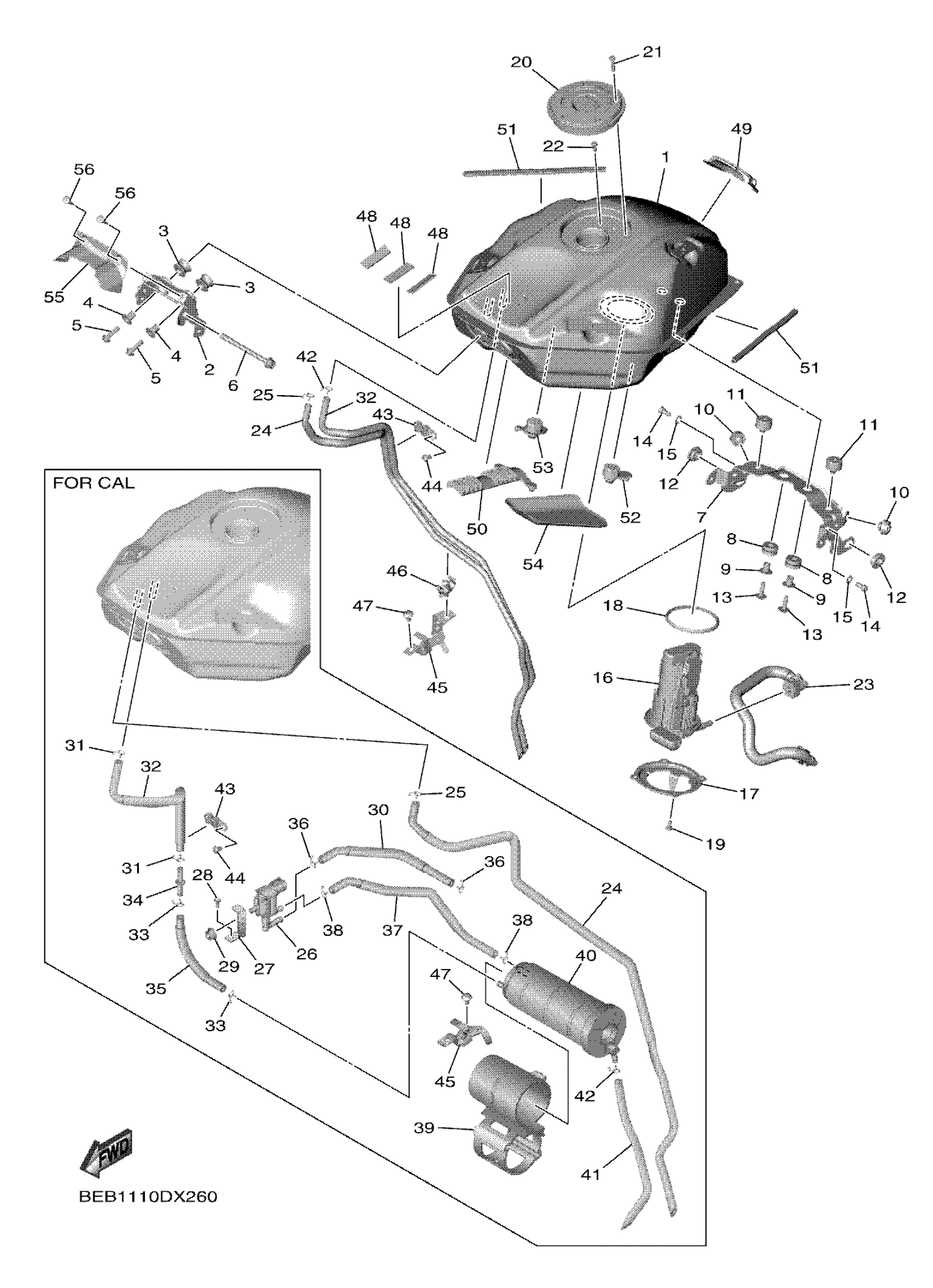

Yamaha YZFR7NW (YZFR7 WGP 60TH) BEBD 2022 FUEL TANK Diagram
#
2
BRACKET, TANK FITT
BEB-2412Y-00-00
Unavailable
8
GROMMET
90480-16003-00
Unavailable
9
COLLAR
90387-06287-00
Unavailable
16
FUEL PUMP COMP.
1WS-13907-10-00
Unavailable
17
BRACKET, FUEL PUMP
1WS-24491-01-00
Unavailable
18
O-RING
1RC-24486-00-00
Unavailable
19
BOLT
91312-05010-00
Unavailable
20
CAP ASSY
1WS-24602-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
22
BOLT, SOCKET
91317-05010-00
Unavailable
23
PIPE, FUEL 1
1WS-13971-01-00
Unavailable
24
PIPE, OVERFLOW
2RC-24318-00-00
Unavailable
25
CLIP
90467-090A2-00
Unavailable
26
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
27
BRACKET, 1
BEB-2115K-00-00
Unavailable
28
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
29
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
30
PIPE 2
BAT-24312-10-00
Unavailable
31
CLIP
90467-090A2-00
Unavailable
32
PIPE 10
B2G-24321-00-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
JOINT
4XY-14568-00-00
Unavailable
35
PIPE 11
B2G-24322-00-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
PIPE 3
BAT-24313-10-00
Unavailable
38
CLIP
90467-090A2-00
Unavailable
39
DAMPER, LOCATING 2
2RC-24182-00-00
Unavailable
40
CANISTER ASSY
BW3-F4170-00-00
Unavailable
41
HOSE
90445-10069-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CLAMP 1
1WS-24135-00-00
Unavailable
44
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
45
BRACKET, CANISTOR
2RC-2419F-00-00
Unavailable
47
BOLT,HEX. SOCKET BUTTON
90111-06119-00
Unavailable
48
DAMPER, LOCATING 1
3XV-21778-00-00
Unavailable
49
DAMPER, LOCATING 1
BEB-24181-00-00
Unavailable
50
DAMPER, LOCATING 2
BEB-24182-00-00
Unavailable
51
MOLD, FUEL TANK
3D7-24188-00-00
Unavailable
52
STOPPER
B2G-23376-00-00
Unavailable
53
STOPPER
B2G-23429-00-00
Unavailable
54
PROTECTOR 2
B2G-2315J-00-00
Unavailable
55
PLATE
BEB-2413X-00-00
Unavailable
56
RIVET
90269-06008-00
Unavailable
