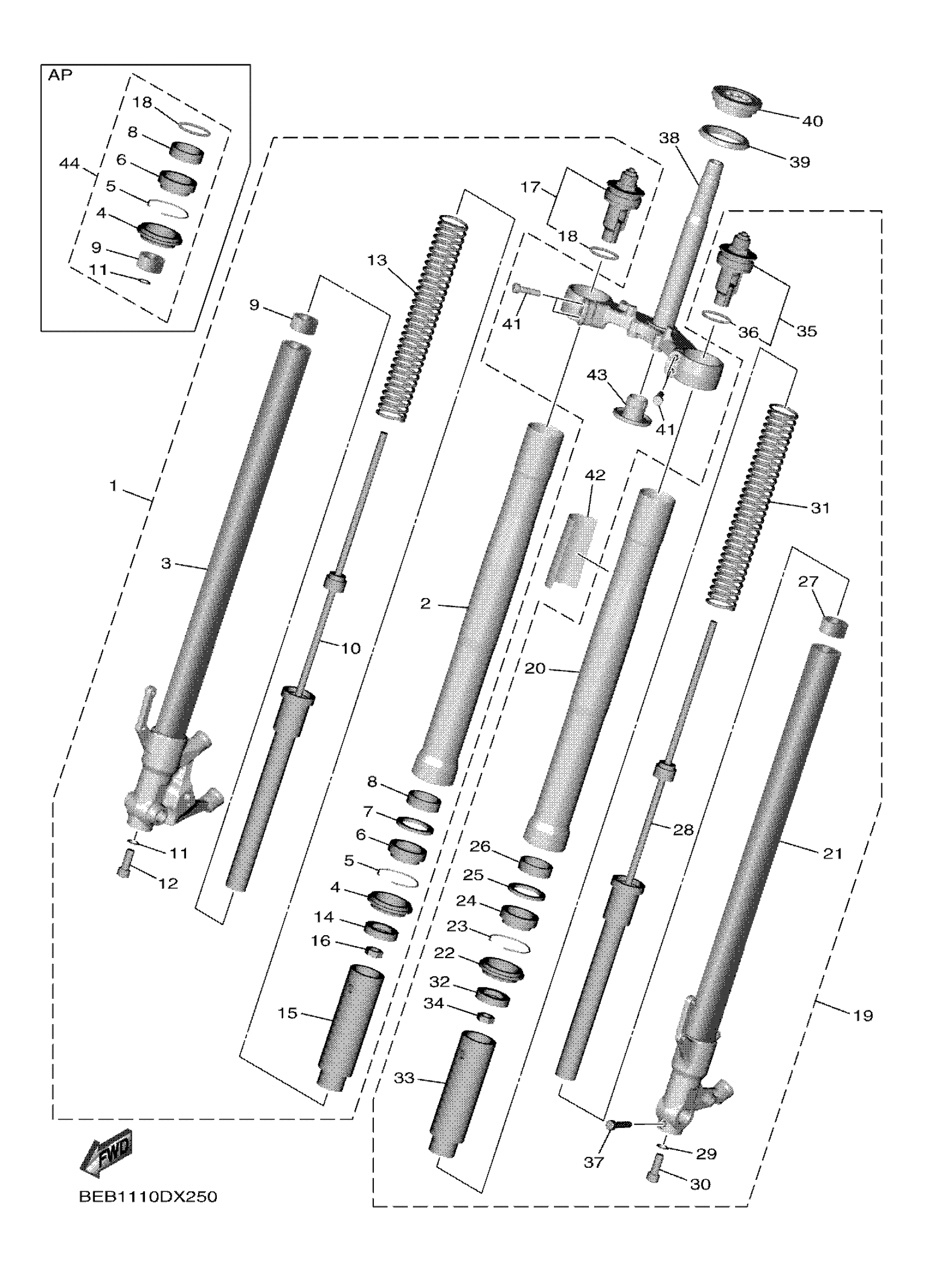

Yamaha YZFR7NW (YZFR7 WGP 60TH) BEBD 2022 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (R
BEB-23103-10-00
Unavailable
2
TUBE, OUTER (L.H)
BEB-23126-10-00
Unavailable
10
CYLINDER COMP., FR
BEB-23170-10-00
Unavailable
13
SPRING, FRONT FORK
BEB-23141-00-00
Unavailable
15
SPACER
5VY-23118-00-00
Unavailable
16
NUT
3LC-23357-00-00
Unavailable
17
BOLT, CAP
BEB-23111-10-00
Unavailable
18
O-RING
3XJ-23147-L1-00
Unavailable
19
FRONT FORK ASSY (L
BEB-23102-10-00
Unavailable
20
TUBE, OUTER (L.H)
BEB-23126-10-00
Unavailable
21
INNER TUBE COMP.1
BEB-23110-00-00
Unavailable
28
CYLINDER COMP., FR
BEB-23170-00-00
Unavailable
31
SPRING, FRONT FORK
BEB-23141-00-00
Unavailable
33
SPACER
5VY-23118-00-00
Unavailable
34
NUT
3LC-23357-00-00
Unavailable
35
BOLT, CAP
BEB-23111-00-00
Unavailable
36
O-RING
3XJ-23147-L1-00
Unavailable
37
BOLT, SOCKET
91314-08035-00
Unavailable
38
UNDER BRACKET COMP
BEB-23340-00-00
Unavailable
39
SEAL, STEERING
3FV-23462-00-00
Unavailable
40
BEARING(3FV)
93399-99932-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
PROTECTOR
BEB-23472-00-00
Unavailable
43
COVER, LOWER 1
4KM-23123-01-00
Unavailable
44
FORK SEAL KIT (ONE FORK)
B7N-W003B-00-00
Unavailable
