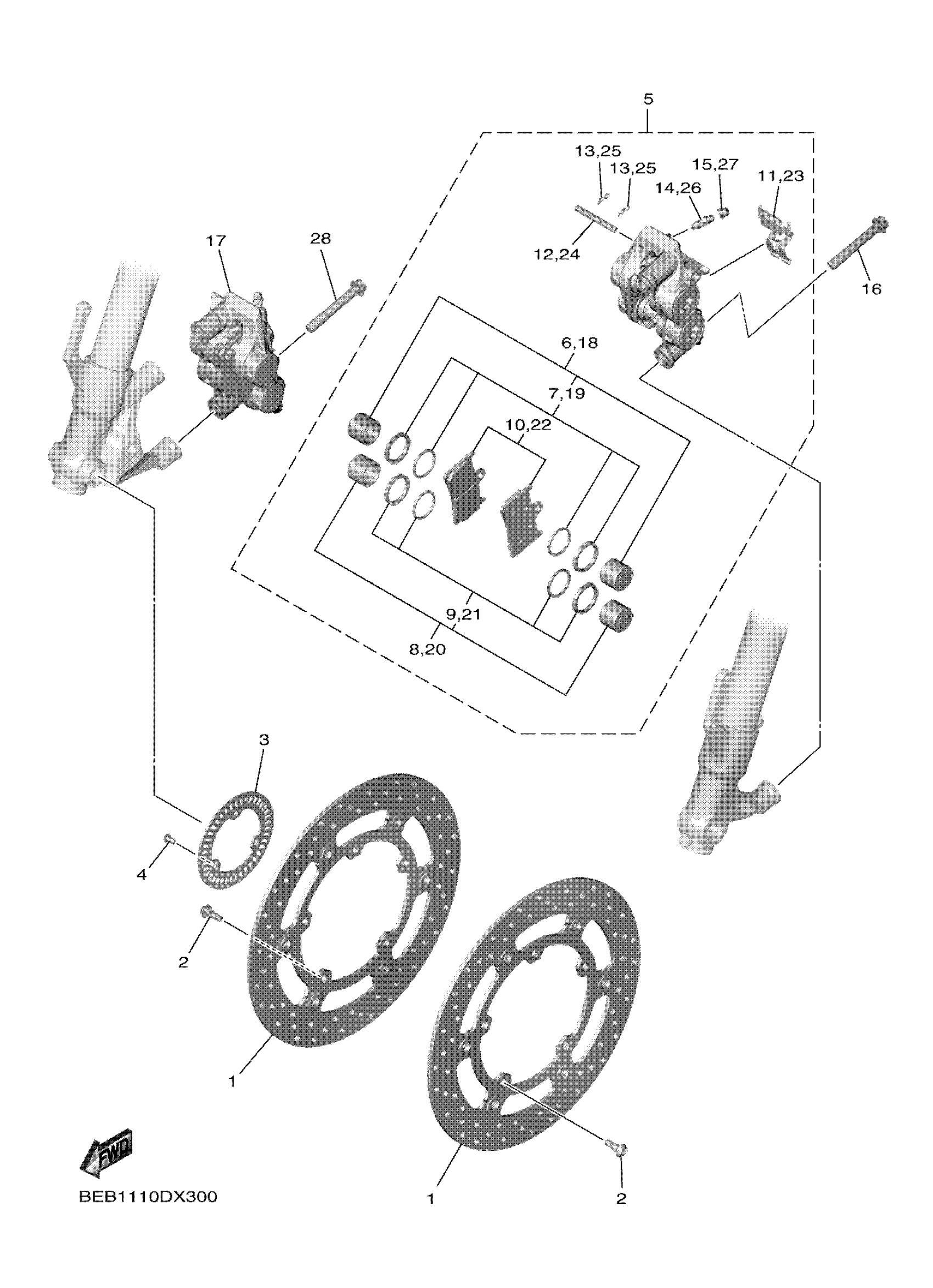

Yamaha YZFR7NW (YZFR7 WGP 60TH) BEBD 2022 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

BEB-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

ROTOR, SENSOR

2DR-2517G-00-00

$81.50

4

SCREW

90149-05030-00

$1.99

5

CALIPER ASSY (LEFT)

1RC-2580T-00-00

$514.68

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

7

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

8

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

9

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

10

BRAKE PAD KIT

5SL-25805-00-00

$58.14

11

SUPPORT, PAD

13S-25919-00-00

$20.44

12

PIN, PAD

4SV-25924-00-00

$34.81

13

CLIP, PAD PIN

3GM-25925-00-00

$9.15

14

SCREW, BLEED

1J3-25824-00-00

$4.44

15

CAP

306-25825-01-00

$8.14

16

BOLT, FLANGE

90105-10440-00

Unavailable

17

CALIPER ASSY (RIGHT)

1RC-2580U-00-00

Unavailable

18

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

19

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

20

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

21

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

22

BRAKE PAD KIT

5SL-25805-00-00

$58.14

23

SUPPORT, PAD

13S-25919-00-00

$20.44

24

PIN, PAD

4SV-25924-00-00

$34.81

25

CLIP, PAD PIN

3GM-25925-00-00

$9.15

26

SCREW, BLEED

1J3-25824-00-00

$4.44

27

CAP

306-25825-01-00

$8.14

28

BOLT, FLANGE

90105-10440-00

Unavailable
