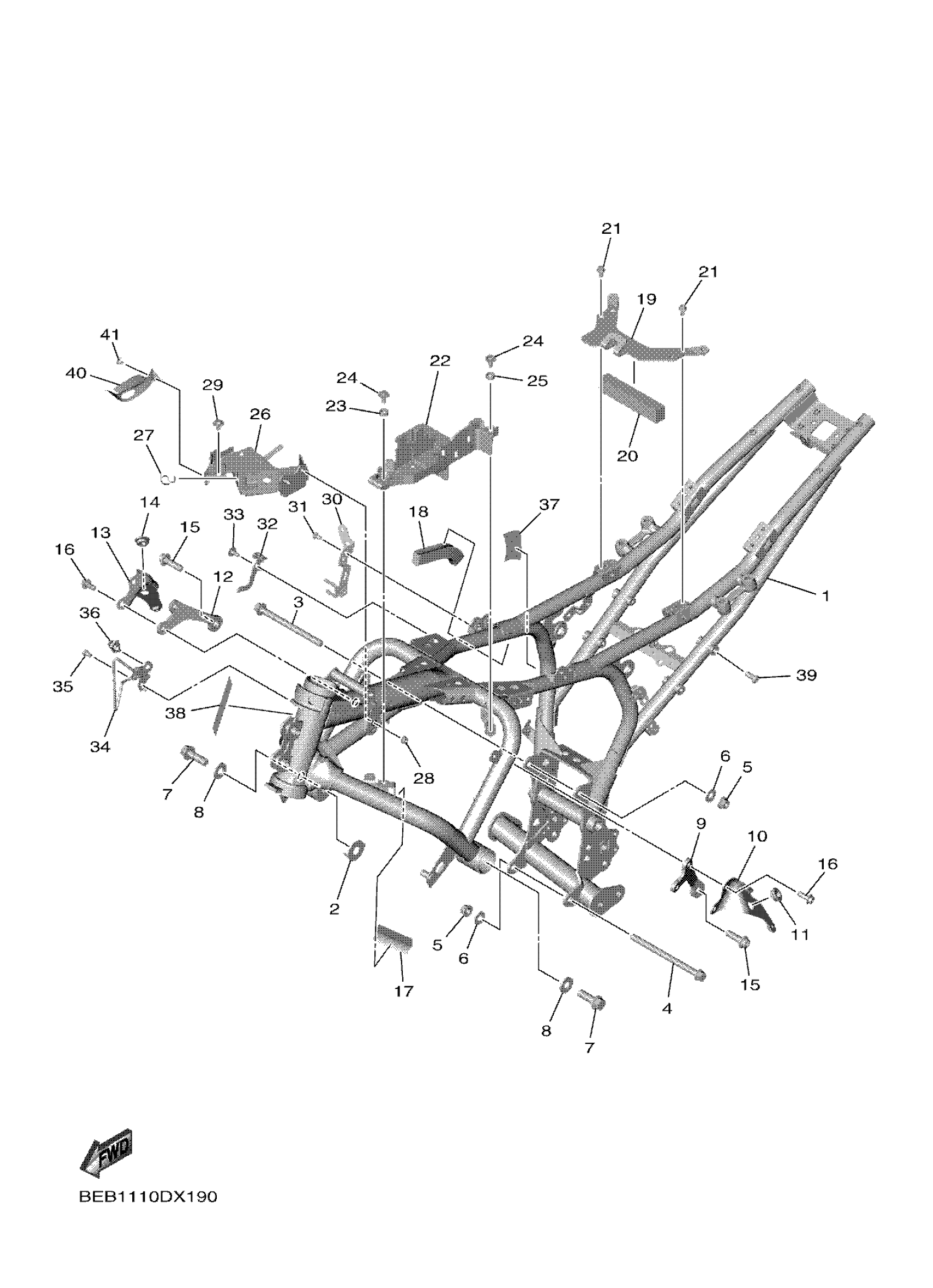

Yamaha YZFR7NW (YZFR7 WGP 60TH) BEBD 2022 FRAME Diagram
#
1
FRAME COMP.
BEB-21110-10-00
Unavailable
4
BOLT, FLANGE
90105-10349-00
Unavailable
7
BOLT, FLANGE
90105-12092-00
Unavailable
9
STAY, ENGINE 1
BEB-21315-00-00
Unavailable
12
STAY, ENGINE 2
BEB-21316-00-00
Unavailable
16
BOLT, HEXAGON SOCK
90110-08111-00
Unavailable
17
DAMPER, PLATE
90520-20004-00
Unavailable
18
DAMPER, PLATE
90520-20003-00
Unavailable
19
BRACKET, SEAT FITT
BEB-21946-00-00
Unavailable
20
DAMPER 1
4B5-28217-00-00
Unavailable
21
BOLT(1KT)
90109-060E9-00
Unavailable
22
COVER 3
BEB-2117N-00-00
Unavailable
23
COLLAR
90387-10126-00
Unavailable
24
BOLT, WITH WASHER
90119-06209-00
Unavailable
25
COLLAR
90387-06106-00
Unavailable
26
BRACKET
BEB-21158-00-00
Unavailable
27
CLAMP
90464-08011-00
Unavailable
28
NUT, FLANGE
95702-06500-00
Unavailable
29
BOLT,HEX. SOCKET BUTTON
90111-06122-00
Unavailable
30
BRACKET 8
BEB-2161J-00-00
Unavailable
31
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
32
BRACKET 2
1WS-2175U-00-00
Unavailable
33
RIVET(4PH)
90269-07077-00
Unavailable
34
GUIDE, CABLE
BEB-21288-00-00
Unavailable
35
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
36
CLAMP
90464-25009-00
Unavailable
37
SEAL
5VN-21268-00-00
Unavailable
38
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
39
SCREW
90149-08002-00
Unavailable
40
COVER
BEB-2177F-00-00
Unavailable
41
RIVET
90269-06002-00
Unavailable
