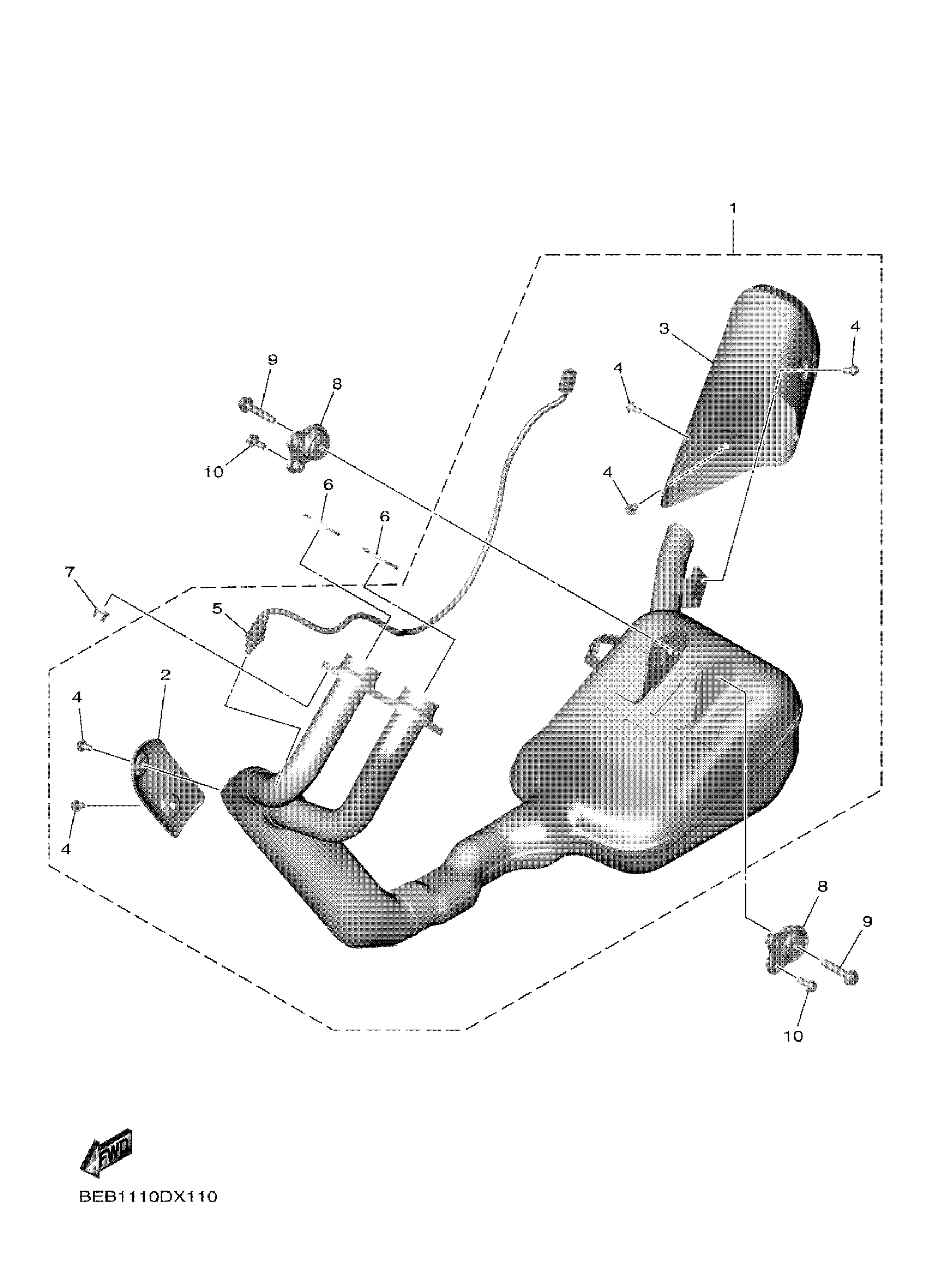

Yamaha YZFR7NL (YZFR7) BEB1 2022 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSY 1

BEB-14710-10-00

Unavailable

2

PROTECTOR, EXHAUST

BEB-14628-00-00

$39.66

3

PROTECTOR ASSY

B4T-14708-00-00

$228.01

4

BOLT

90111-06060-00

$3.59

5

SENSOR, OXYGEN

B4T-8592A-00-00

$142.87

6

GASKET, EXHAUST PIPE

3YF-14613-01-00

$10.82

7

NUT (22U)

90179-08410-00

$4.72

8

STAY, MUFFLER 1

20S-21445-01-00

$81.56

9

BOLT, FLANGE

90105-08164-00

$5.86

10

BOLT, FLANGE DEEP RECESS

95D34-06016-00

$0.70
